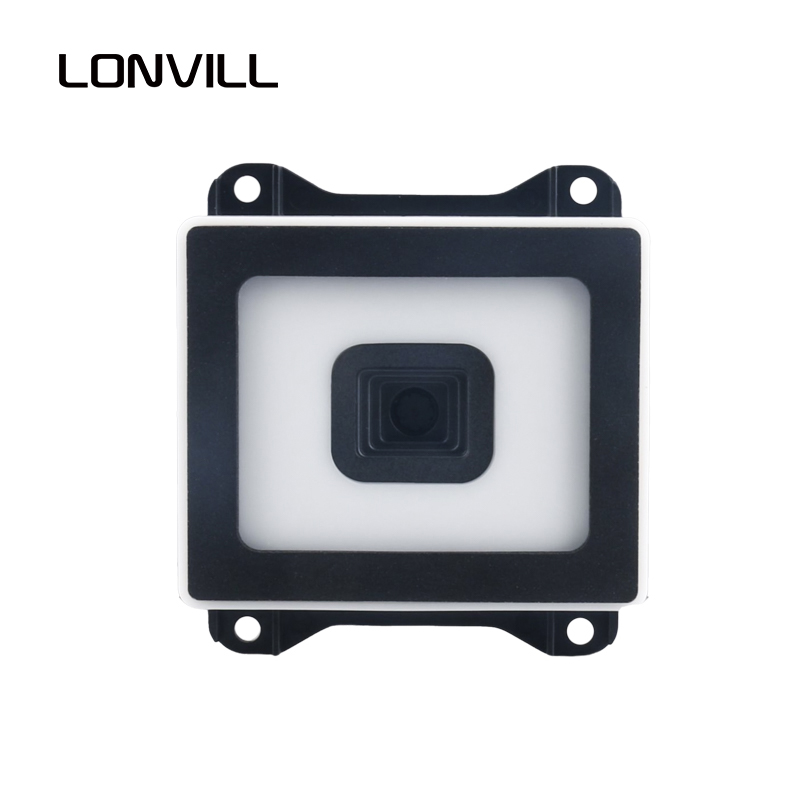

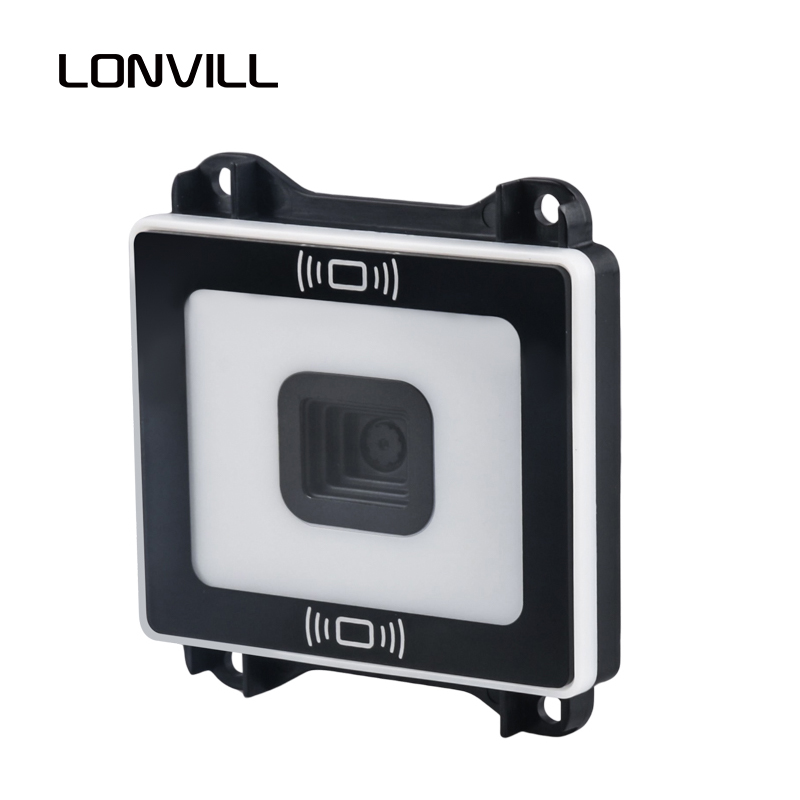

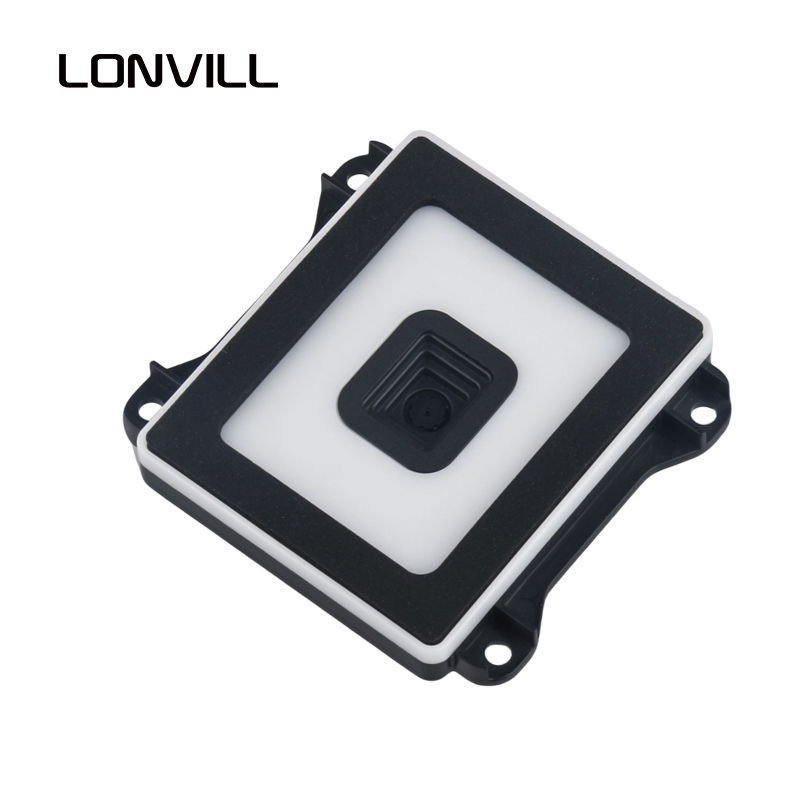

M1617 NFC Card Reader Module
M1617 is an embedded two-dimensional image module that adopts advanced CMOS image recognition technology and an intelligent image recognition system. It has excellent reading performance and can easily read barcodes on media such as paper, goods, and screens. It also supports NFC functions and various IC card types. The integrated compact design can be conveniently embedded in various devices. It can be widely applied in scenarios such as retail terminals, mobile payment, various self-service machines, queuing machines, price inquiry machines, access control channels, etc..
-
Read Rate: 2000 scans/sec
-
Capteur d'image: CMOS, global shutter
-
Résolution: 0.3MP, 640*480
-
Résolution: ≥3mil/0.075mm（PCS90%,CODE 39）
-
Éclairage: Warm white LED
-
Profondeur de champ: 30mm~210mm(Different barcode ranges)
-
Decoding Speed: 65CM/S
-
NFC Sensing Distance: 0-5CM
-
Communication Method: USB（USB-KBW, HID-POS, USB-COM）, RS232, TTL, Wiegand, Rs485
Caractéristiques
High-Performance NFC Card Reader Module
M1617 is a compact NFC card reader module designed for smart devices and terminals. It combines advanced CMOS imaging and an independent decoding algorithm. The module reads over 40 barcode types and supports OCR functionality. Whether scanning paper codes or screen-based barcodes, it ensures quick and reliable performance. Its slim body fits perfectly in lightweight equipment, making it ideal for self-service machines and access control systems.
Versatile Interface & Platform Compatibility
M1617 supports multiple interfaces including USB-KBW, USB-COM, USB-HID POS, RS232, Rs485, TTL, and Wiegand. It is compatible with Windows, Linux, Androïde, Mac OS, UOS, and other domestic operating systems. The module works with Raspberry Pi and 51 microcontrollers, making integration easier for developers. It also supports SDKs for custom application development and firmware adaptation.
NFC and Multi-Mode Barcode Reading
The optional NFC version supports multiple protocols and card types like membership and access cards. The module delivers high read accuracy even under challenging conditions such as curved, folded, ou codes à barres colorés. It performs well on low-brightness and film-coated screens. With multi-mode reading, it adapts to dynamic environments like retail POS or vending kiosks.
Optimized Light and Industrial Design

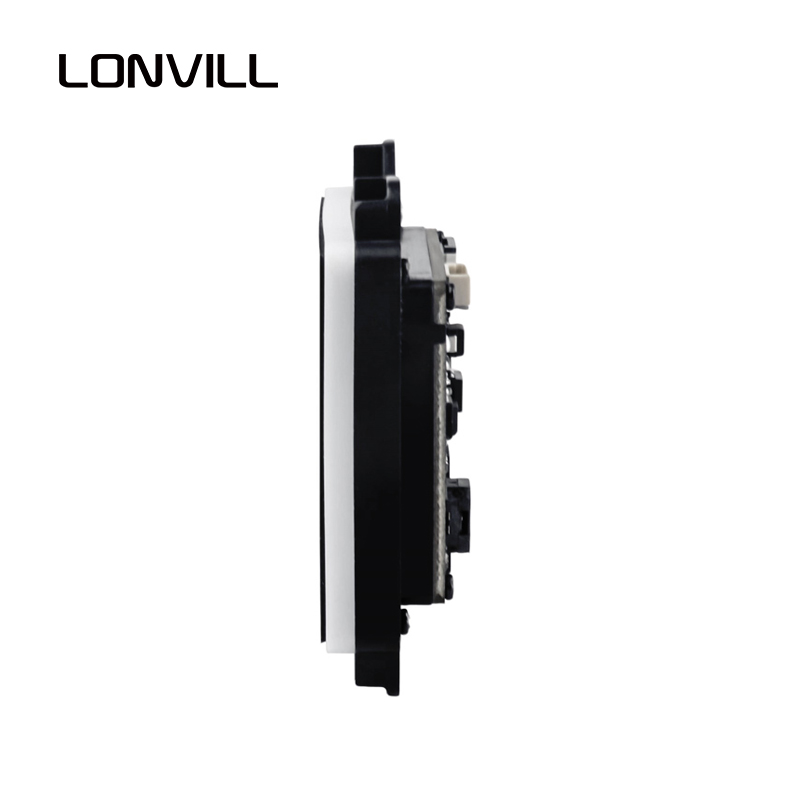

M1617 uses warm white light to improve user comfort and barcode contrast. Its outer shell is made from full-body light-transmitting material for uniform illumination. This reduces glare while enhancing scanning speed. With less than 16mm thickness, the module fits seamlessly into compact enclosures. It’s perfect for slim kiosks, queuing systems, and mobile retail terminals.
Tailored for OEM/ODM Use
This NFC card reader module supports custom designs including connector types and protective sheets. We offer SDKs and engineering support for embedded projects. Whether building access systems, mobile payment devices, or interactive displays, M1617 provides precision scanning and reliable performance in a small form factor. It’s built to support B2B needs with speed, stability, and customization flexibility.
Caractéristiques
| Communication Method | USB（USB-KBW，HID-POS，USB-COM）、RS232，TTL，Wiegand，Rs485 |
| Main frequency | 1Ghz |
| Capteur d'image | CMOS，global shutter |
| Résolution | 0.3MP，640*480 |
| Résolution | ≥3mil/0.075mm（PCS90%,CODE 39） |
| Éclairage | Warm white LED |
| Profondeur de champ | 30mm~210mm(Different barcode ranges) |
| Decoding Speed | 65CM/S |
| Mode de lecture | Inductive reading mode, continuous reading mode, command control |
| Prompt Mode | Ronfleur |
| Perspective | Horizontal 60°, Vertical 50°, Diagonal 72° |
| Reading Angle | Conditions de test：CODE39,10mil/0.25mm,PCS90% |
| Rouler: ±360°，Pas:± 60 °，Fausser: ±55° | |
| Contraste d'impression | ≥20% |
| Ambient Light Intensity | Dark environment, natural light indoors |
| Code Reading | 1D：UPC-A，UPC-E，Ean-8，EAN-13，ISBN, ISSN, Coupon. Code 128，GS1-128(UCC/EAN 128)，ISBT 128, Code 39， Code 39 Full ASCII, Code 32, Code 93，Code 11,Codabar（NW-7），Entrelacé 2 de 5，Matrice 2 de 5，Industriel 2 de 5(Droit 2 de 5)，Standard 2 of 5（IATA 2 of 5），NEC 2of 5，HongKong 2 de 5(China Post), MSI Plesey，UK Plessey, Telepen Code, Trioptic Code， BC412, Pharma Code(One-Track), etc.. |
| 2D: Code QR, Micro QR Code, Matrice de données，PDF417, Micro PDF 417， MaxiCode, Aztèque，HanXin Code, Codablock A, Codablock F, etc.. | |
| Other: GS1 Databar(Omnidirectional, Truncated Stacked, Limité, Expanded, Stacked Omnidirectional, Expanded Stacked, Expanded Stacked)，GS1 Composite（Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limité, Expanded, Expanded Stacked, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13）,Chinese ID Card OCR, Korea Post, Australian Post, Royal Mail, USPS Intelligent Mail, Japanese Post, Planet Code, USPS Postnet, KIX Code | |
| NFC Sensing Distance | 0-5CM |
| NFC Output Format | Decimal (default), Hexadecimal |
| NFC Reading and Writing Instructions | Supports reading, but not writing |
| NFC Support Protocol | ISO14443A and other 13.56Mhz protocols |
