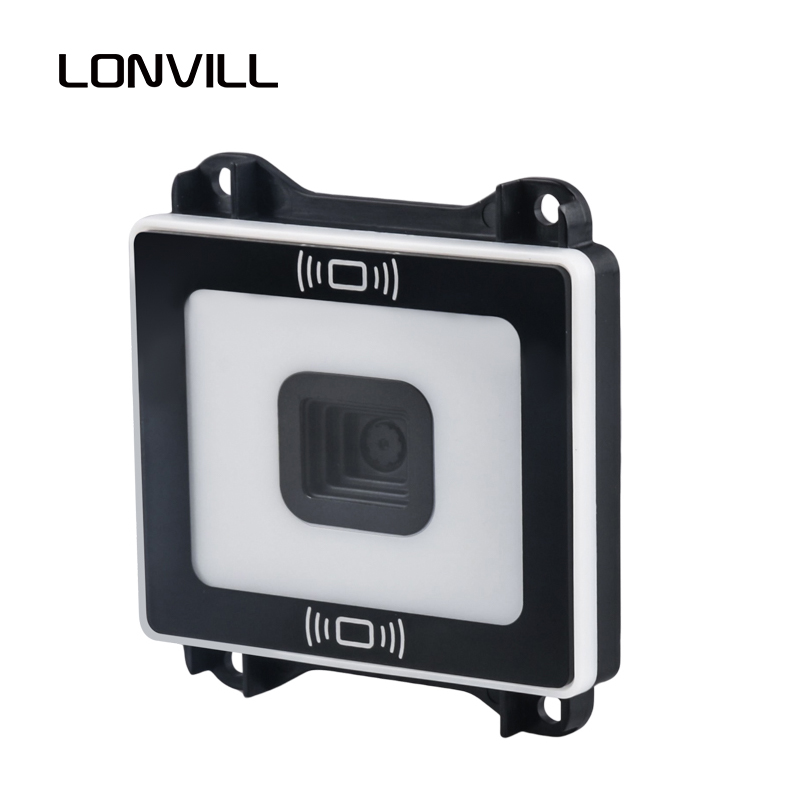

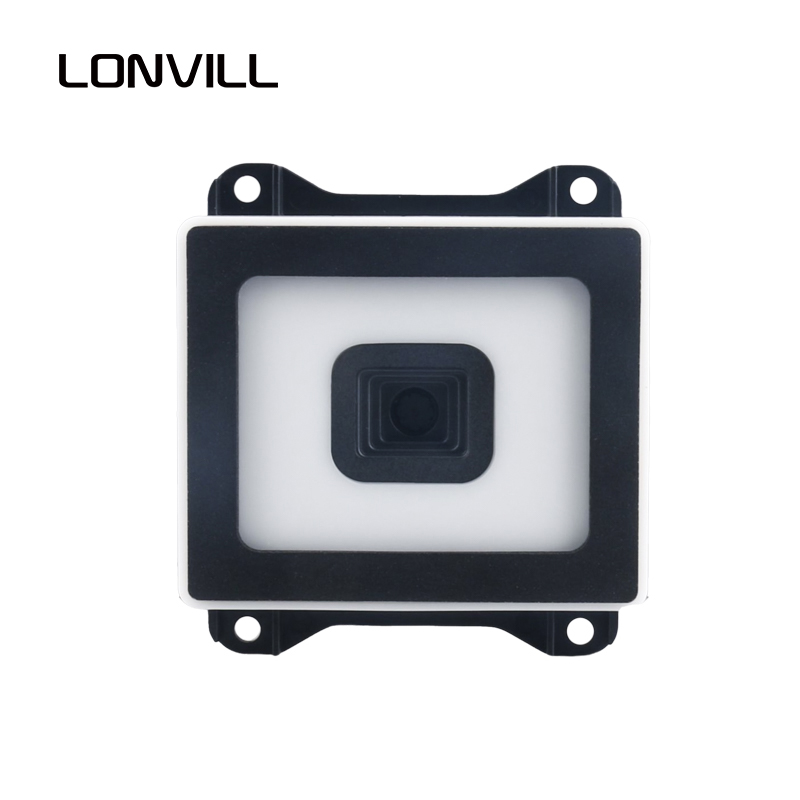

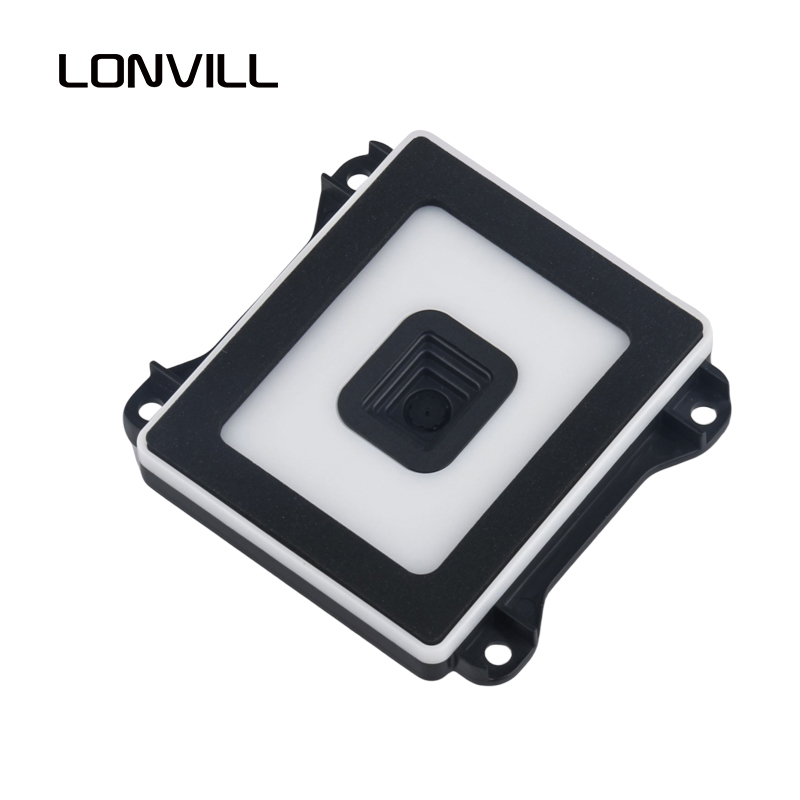

Módulo de lector de tarjetas NFC M1617
M1617 es un módulo de imagen bidimensional integrado que adopta tecnología avanzada de reconocimiento de imágenes CMOS y un sistema inteligente de reconocimiento de imágenes.. Tiene un rendimiento de lectura excelente y puede leer fácilmente códigos de barras en soportes como el papel., bienes, y pantallas. También admite funciones NFC y varios tipos de tarjetas IC.. El diseño compacto integrado se puede integrar cómodamente en varios dispositivos. Puede aplicarse ampliamente en escenarios como terminales minoristas., pago movil, varias máquinas de autoservicio, maquinas para hacer cola, máquinas de consulta de precios, canales de control de acceso, etc..
-
Tasa de lectura: 2000 escaneos/seg
-
Sensor de imágenes: CMOS, obturador global
-
Resolución: 0.3diputado, 640*480
-
Resolución: ≥3mil/0,075 mm（PCS90%,CÓDIGO 39）
-
Iluminación: LED blanco cálido
-
Profundidad de campo: 30mm ~ 210 mm(Diferentes rangos de códigos de barras)
-
Velocidad de decodificación: 65CM/S
-
Distancia de detección NFC: 0-5CENTÍMETRO
-
Método de comunicación: USB（USB-KBW, HID-POS, USB-COM）, Rs232, TTL, Wiegand, Rs485
Características
High-Performance NFC Card Reader Module
M1617 is a compact NFC card reader module designed for smart devices and terminals. It combines advanced CMOS imaging and an independent decoding algorithm. The module reads over 40 barcode types and supports OCR functionality. Whether scanning paper codes or screen-based barcodes, it ensures quick and reliable performance. Its slim body fits perfectly in lightweight equipment, making it ideal for self-service machines and access control systems.
Versatile Interface & Platform Compatibility
M1617 supports multiple interfaces including USB-KBW, USB-COM, USB-HID POS, Rs232, Rs485, TTL, y wiegand. It is compatible with Windows, Linux, Androide, Mac OS, UOS, and other domestic operating systems. The module works with Raspberry Pi and 51 microcontrollers, making integration easier for developers. It also supports SDKs for custom application development and firmware adaptation.
NFC and Multi-Mode Barcode Reading
The optional NFC version supports multiple protocols and card types like membership and access cards. The module delivers high read accuracy even under challenging conditions such as curved, folded, o códigos de barras de colores. It performs well on low-brightness and film-coated screens. With multi-mode reading, it adapts to dynamic environments like retail POS or vending kiosks.
Optimized Light and Industrial Design

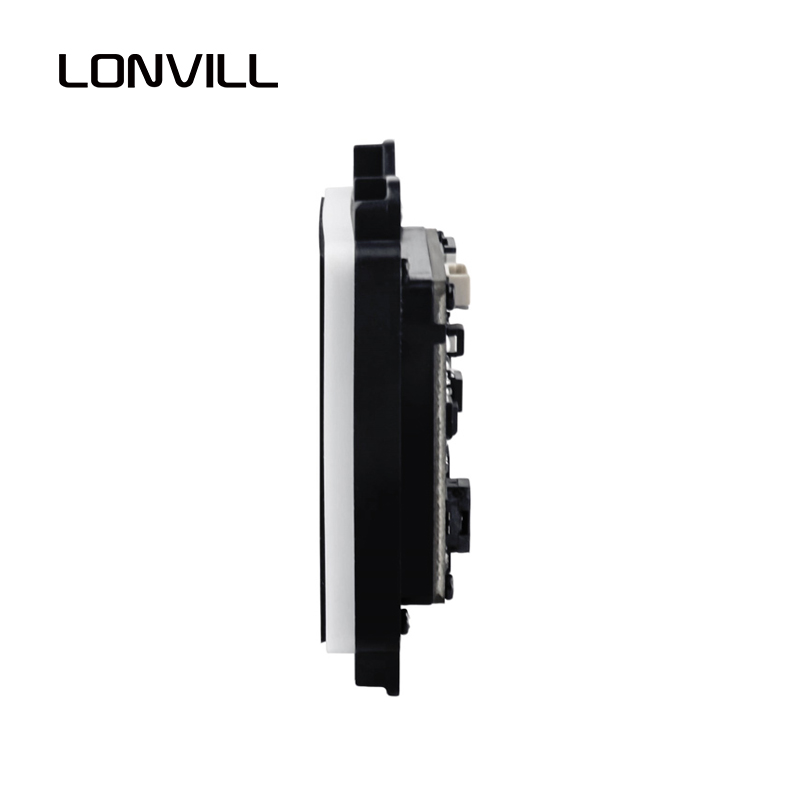

M1617 uses warm white light to improve user comfort and barcode contrast. Its outer shell is made from full-body light-transmitting material for uniform illumination. This reduces glare while enhancing scanning speed. With less than 16mm thickness, the module fits seamlessly into compact enclosures. It’s perfect for slim kiosks, queuing systems, and mobile retail terminals.
Tailored for OEM/ODM Use
This NFC card reader module supports custom designs including connector types and protective sheets. We offer SDKs and engineering support for embedded projects. Whether building access systems, mobile payment devices, or interactive displays, M1617 provides precision scanning and reliable performance in a small form factor. It’s built to support B2B needs with speed, estabilidad, and customization flexibility.
Presupuesto
| Método de comunicación | USB（USB-KBW，HID-POS，USB-COM）、Rs232，TTL，Wiegand，Rs485 |
| Main frequency | 1Ghz |
| Sensor de imágenes | CMOS，obturador global |
| Resolución | 0.3diputado，640*480 |
| Resolución | ≥3mil/0,075 mm（PCS90%,CÓDIGO 39） |
| Iluminación | LED blanco cálido |
| Profundidad de campo | 30mm ~ 210 mm(Diferentes rangos de códigos de barras) |
| Velocidad de decodificación | 65CM/S |
| Modo de lectura | Inductive reading mode, continuous reading mode, command control |
| Prompt Mode | Zumbador |
| Perspective | Horizontal 60°, Vertical 50°, Diagonal 72° |
| Ángulo de lectura | Condición de prueba：CODE39,10mil/0.25mm,PCS90% |
| Rollo: ±360°，Paso:± 60 °，Sesgar: ±55° | |
| Imprimir contraste | ≥20% |
| Ambient Light Intensity | Dark environment, natural light indoors |
| Code Reading | 1D：UPC-A，UPC-E，Ean-8，Ean-13，ISBN, ISNSN, Coupon. Código 128，GS1-128(UCC/EAN 128)，ISBT 128, Código 39， Código 39 Full ASCII, Código 32, Código 93，Code 11,Codabar（NW-7），Entrelazado 2 de 5，Matriz 2 de 5，Industrial 2 de 5(Derecho 2 de 5)，Estándar 2 of 5（IATA 2 of 5），NEC 2of 5，HongKong 2 de 5(Correo Chino), MSI Plesey，UK Plessey, Telepen Code, Trioptic Code， BC412, Pharma Code(One-Track), etc.. |
| 2D: Código QR, Micro QR Code, Matriz de datos，PDF417, Micro pdf 417， Maxico, azteca，HanXin Code, Codablock A, Codablock F, etc.. | |
| Other: Data de datos GS1(Omnidirectional, Truncated Stacked, Limitado, Expanded, Stacked Omnidirectional, Expanded Stacked, Expanded Stacked)，GS1 Composite（Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limitado, Expanded, Expanded Stacked, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13）,Chinese ID Card OCR, Korea Post, Australian Post, Royal Mail, USPS Intelligent Mail, Japanese Post, Planet Code, USPS Postnet, KIX Code | |
| Distancia de detección NFC | 0-5CENTÍMETRO |
| NFC Output Format | Decimal (default), Hexadecimal |
| NFC Reading and Writing Instructions | Supports reading, but not writing |
| NFC Support Protocol | ISO14443A and other 13.56Mhz protocols |
