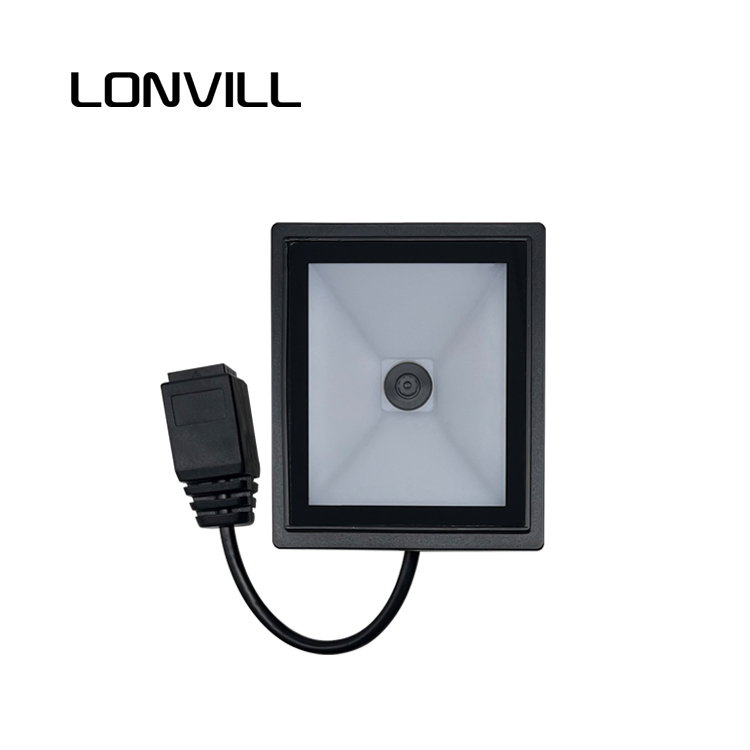

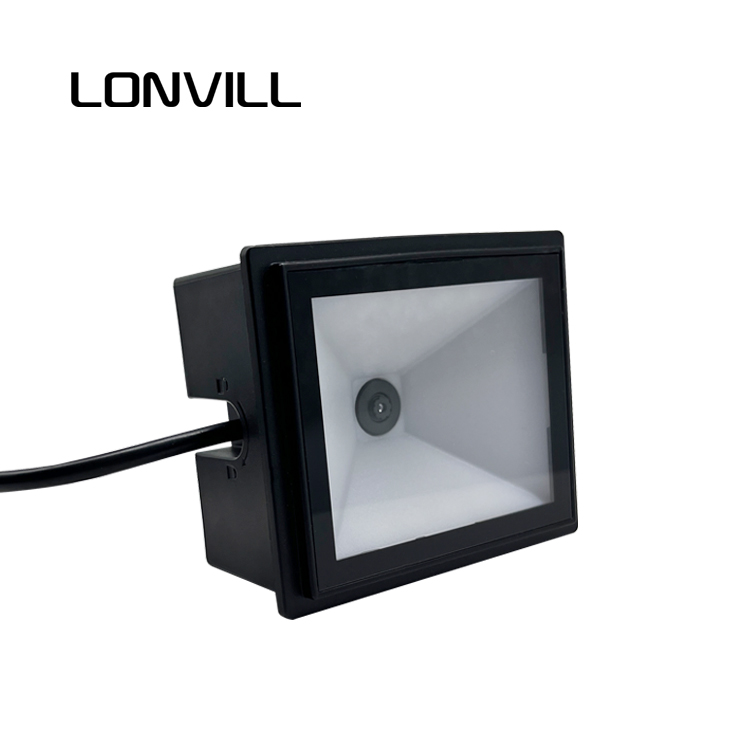

Y81 Seamless Integration Scanner Modules
Advanced CMOS imager captures 1D/2D codes on print/screens with precision. IP67-rated sealing ensures dust/water resistance for harsh industrial environments. Customizable via SDK and serial protocols for third-party integration. Bluetooth 5.0 enables 50m wireless range in warehouse/logistics settings. Versatile deployment across self-service kiosks, access control gates, POS systems, and handheld inventory terminals.
-
Sensor de imágenes: 640*480 Coms
-
Resolución: ≥5mil
-
Voltaje de funcionamiento: 5VDC±5%
-
Power: 1400MW(Typical)
-
Standby: 150mamá
-
Dimensión(mm): 78(W)×66.2(D)×41(H)(Máximo)
-
Ángulo de escaneo: Sesgo ± 70 °，Pitch±70°，Rollo 360 °
-

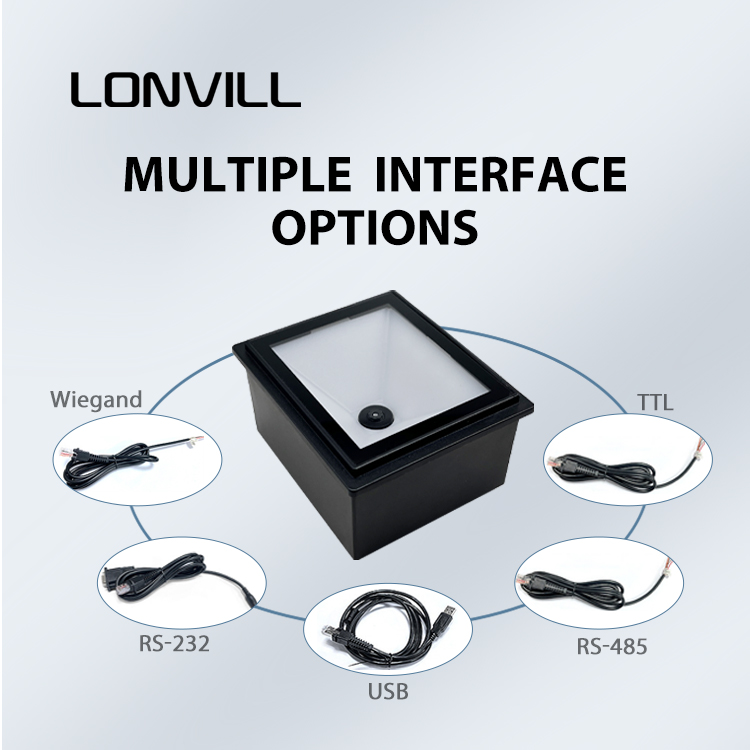

Interfaz: USB、Rs232 、Rs485 、TTL、Wiegand
Características
Advanced CMOS Imaging Performance
Incorporating a high-sensitivity, high-speed CMOS image sensor, the device effortlessly captures 1D and 2D codes across both printed surfaces and digital displays.
Enhanced Environmental Protection
Rated IP67 for robust sealing, the scanner provides exceptional defense against water ingress and particulate contamination, maintaining operational integrity in demanding industrial environments.
Customizable Integration Capabilities
Support for serial command protocols and an SDK development toolkit enables deep customization and seamless integration with third-party systems for specialized workflows.
Extended-Range Wireless Connectivity
Equipped with Bluetooth 5.0 technology, the device sustains stable data transmission across distances up to 50 medidores, supporting flexible deployment in warehouse and logistics scenarios.

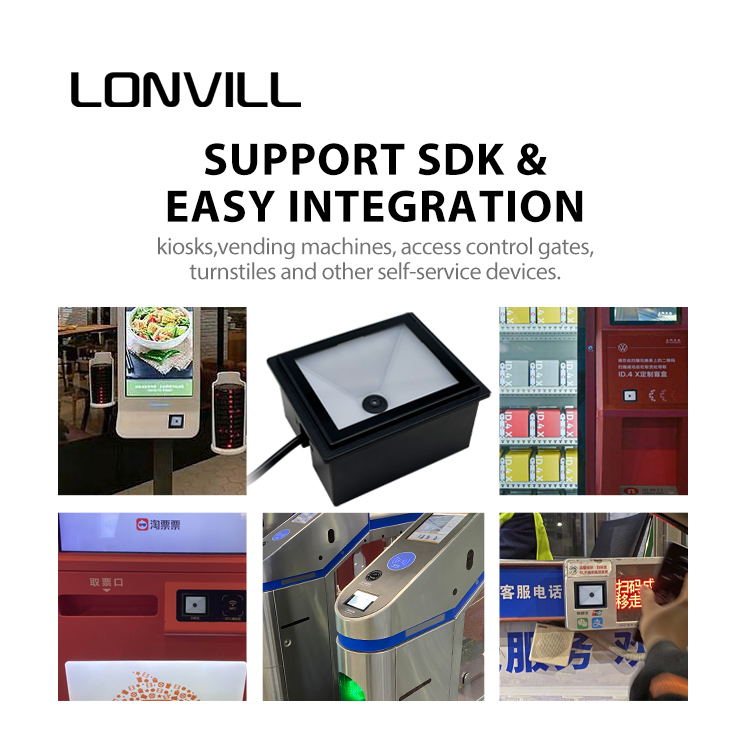

Typical application scenarios
⊙Self service terminal: embedded KIOSK machine (information inquiry), vending machine (product scanning payment), bank ATM (document scanning).
⊙Access control and security system: integrated into the speed gate (employee card verification), gate (QR code ticketing verification), and smart lock (mobile dynamic code authorization).
⊙Retail and Logistics: POS Cashier: High speed reading of product barcodes (UPC/EAN/GS1 DataBar)
⊙Warehouse handheld terminal: equipped with industrial PDA to achieve shelf inventory (supporting remote scanning).
Presupuesto
| Sensor de imágenes | 640*480 Coms |
| Iluminación | LED blanco |
| Resolución | ≥5mil |
| Typical Decode Range | Ean-13 (13mil):5mm~90mm（Barcode Size：31mm*7mm） |
| PDF417 (6mil):5mm~55mm（Barcode Size：14mm*7mm） | |
| Código39 (6.6mil):18mm~45mm（Barcode Size：27mm*8mm） | |
| Matriz de datos (10mil):5mm~60mm（Barcode Size：5mm*5mm） | |
| Código QR (15mil):5mm~80mm（Barcode Size：10mm*10mm） | |
| Min Print Contract | ≥20% |
| Ángulo de escaneo | Sesgo ± 70 °，Pitch±70°，Rollo 360 ° |
| FOV | Diagonal 87.1 °，Horizontal 74°，Vertical 65° |
| Interfaz | USB、Rs232 、Rs485 、TTL、Wiegand |
| Dimensión(mm) | 78(W)×66.2(D)×41(H)(Máximo) |
| Voltaje de funcionamiento | 5VDC±5% |
| Power | 1400MW(Typical) |
| Current@5 VDC | Operante:280mamá(RMS Typical)，300mamá(RMS Max) |
| Standby:150mamá | |
| Temperatura de funcionamiento | 0℃~+60℃ |
| Temperatura de almacenamiento | 40℃ ~+70 ℃ |
| Humedad operativa | 5%~95%（Non-Condensing） |
