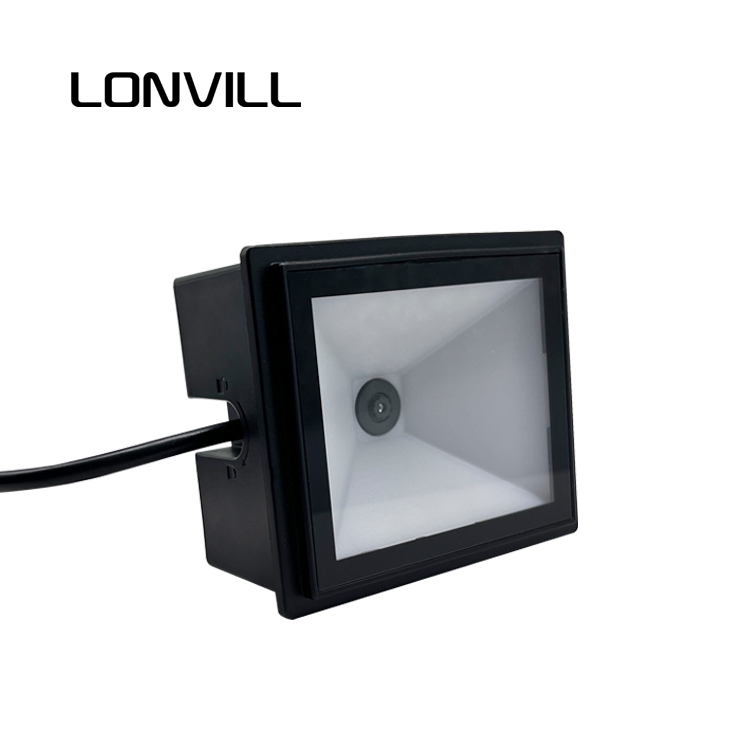

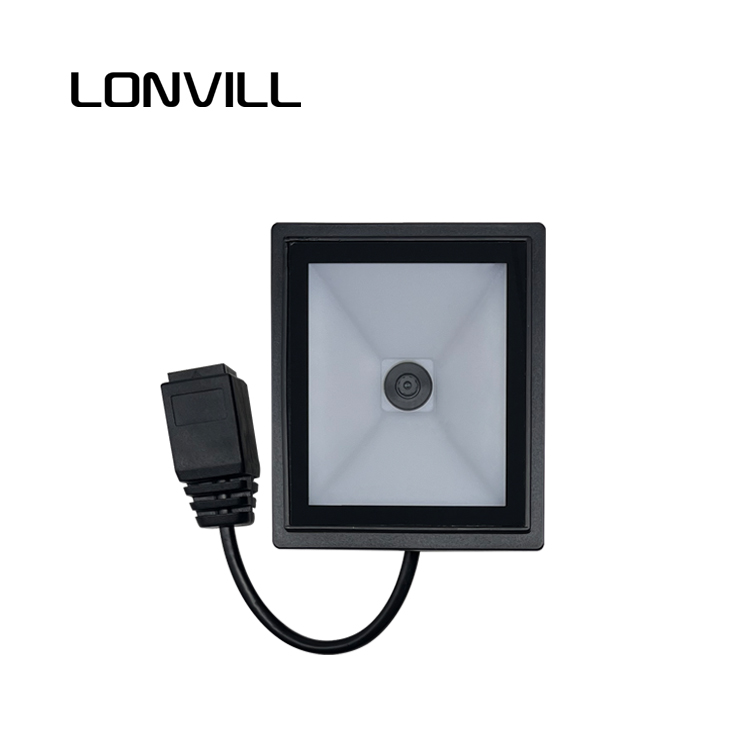

Mô-đun máy quét tích hợp liền mạch Y81
Các Y81 integration scanner modules deliver fast 1D/2D decoding. The CMOS imager ensures precise capture of print or screen images. IP67 sealing protects against water and dust. Bluetooth 5.0 supports long-range data transmission. The SDK enables deep system integration. It fits kiosks, cổng, Thiết bị đầu cuối POS, and warehouse PDAs.
-
Cảm biến hình ảnh: 640*480 Coms
-
Nghị quyết: ≥5mil
-
Điện áp hoạt động: 5VDC±5%
-
Power: 1400MW(Typical)
-
Standby: 150MA
-
Kích thước(mm): 78(W)×66.2(D)×41(H)(Tối đa)
-
Quét góc: Độ lệch ± 70 °, Pitch±70°, Cuộn 360 °
-
Giao diện: USB、 RS232 、RS485 、TTL、Wiegand
Đặc trưng
High-Precision CMOS Imaging Performance
The Y81 integration scanner modules use an advanced CMOS imager. The sensor captures 1D and 2D codes with high speed. It reads printed labels and digital screens with strong accuracy. This performance supports retail, hậu cần, and industrial applications. Teams rely on it for stable decoding in fast workflows. The module maintains consistent output under challenging lighting conditions. It improves system efficiency and reduces scanning errors.
Industrial-Grade IP67 Protection
The module features full IP67 environmental sealing. It blocks water, dust, and fine particles during long-term operation. This protection ensures strong reliability in harsh environments. Integration teams deploy it in factories, outdoor kiosks, and logistics hubs. The sealed housing reduces maintenance frequency. It allows continuous operation in wet, dirty, or high-impact locations. Businesses gain a long-life scanning solution for demanding fields.
Flexible Integration and SDK Customization

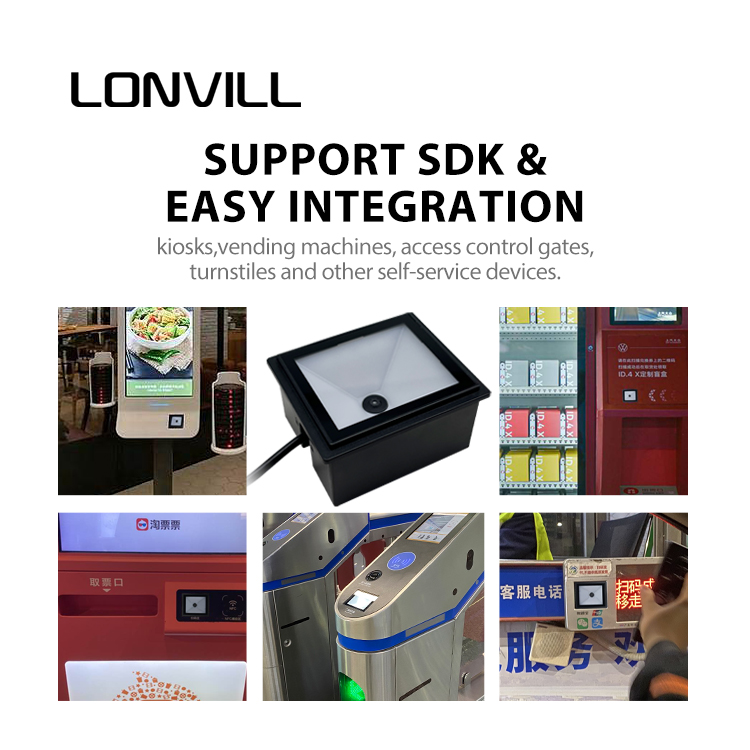

The Y81 integration scanner modules support serial protocols and an open SDK. Developers configure data formats, triggers, and workflow logic. This flexibility enables seamless integration with third-party systems. Brands adapt the module for kiosks, cổng, máy bán hàng tự động, and POS terminals. Engineering teams gain full control over software behavior. The module shortens development cycles and reduces integration complexity.
Extended Wireless Connectivity for Large Spaces
Bluetooth 5.0 provides a stable wireless link up to 50 mét. The module delivers reliable scanning in wide warehouse areas. Staff move freely without cable limits. The wireless link supports real-time data transfer for logistics tasks. Teams improve mobility during inventory, picking, and verification. The stable connection enhances productivity in dynamic workspaces.
Optimized for Diverse Application Scenarios
The module integrates easily into kiosks, ATMs, and vending machines. It strengthens identity verification in access control gates. Retail teams use it for UPC and GS1 scanning at POS counters. Warehouse operators pair it with PDAs for shelf inventory. Its performance suits both high-speed retail tasks and industrial automation. One module supports multiple commercial and enterprise deployments.
Thông số kỹ thuật
| Cảm biến hình ảnh | 640*480 Coms |
| Chiếu sáng | Đèn LED màu trắng |
| Nghị quyết | ≥5mil |
| Typical Decode Range | EAN-13 (13Mil):5mm~90mm（Barcode Size：31mm*7mm） |
| PDF417 (6Mil):5mm~55mm（Barcode Size：14mm*7mm） | |
| Code39 (6.6Mil):18mm~45mm（Barcode Size：27mm*8mm） | |
| Ma trận dữ liệu (10Mil):5mm~60mm（Barcode Size：5mm*5mm） | |
| Mã QR (15Mil):5mm~80mm（Barcode Size：10mm*10mm） | |
| Min Print Contract | ≥20% |
| Quét góc | Độ lệch ± 70 °，Pitch±70°，Cuộn 360 ° |
| FOV | Đường chéo 87.1 °，Horizontal 74°，Vertical 65° |

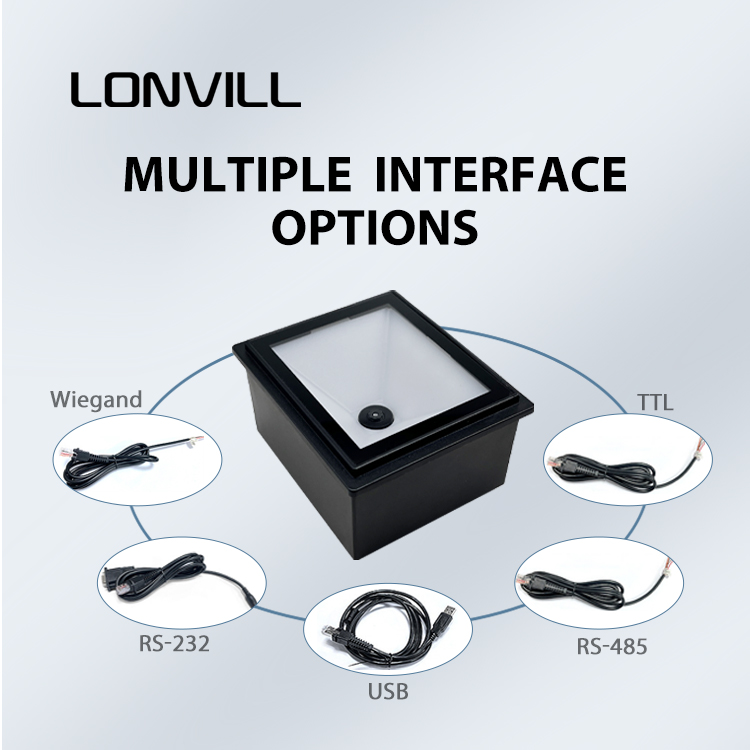

| Giao diện | USB、RS232 、RS485 、TTL、Wiegand |
| Kích thước(mm) | 78(W)×66.2(D)×41(H)(Tối đa) |
| Điện áp hoạt động | 5VDC±5% |
| Power | 1400MW(Typical) |
| Current@5 VDC | Hoạt động:280MA(RMS Typical)，300MA(RMS Max) |
| Standby:150MA | |
| Nhiệt độ hoạt động | 0℃~+60℃ |
| Nhiệt độ lưu trữ | 40oC~+70oC |
| Operating Humidity | 5%~95%（Non-Condensing） |
