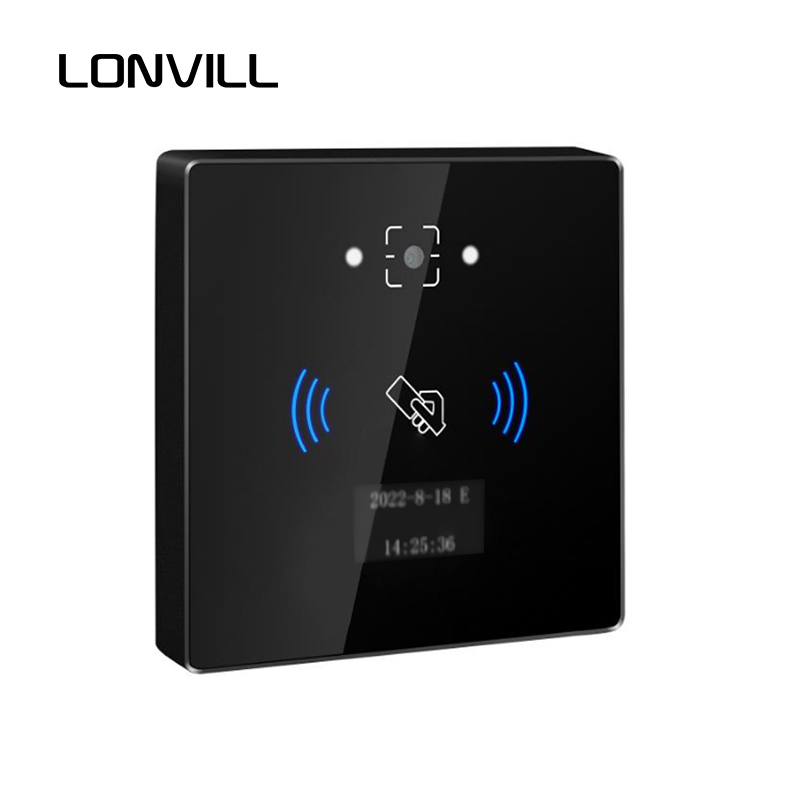

CR06 Cloud Access Control Reader
The CR06 QR Code Cloud Access Control Integrated Machine adopts TCP/IP communication method, supports Ethernet and WIFI networking, provides simple and user-friendly APIs, and can be connected to all third-party systems; it can verify dynamic QR codes offline. It is widely used in visitor access for commercial office buildings, scenic areas, and communities, vân vân.; the cloud access control integrated machine can recognize one-dimensional codes, QR codes, Thẻ IC, CPU cards, second-generation ID cards, Bluetooth, and also supports password keyboard input.
-
Cân nặng: 200g
-
Sự chính xác: ≥7mil
-
Recognition distance: 5-20cm
-
Monitor: OLED 0.96-inch monitor
-
Material: ABS+tempered glass
-
Exterior Dimensions: 86*86*16.5mm
-
Operating System: Embedded Linux
-
Identification method: QR code/IC card/ID card
-
Communication protocols: http, https, MQTT
Đặc trưng

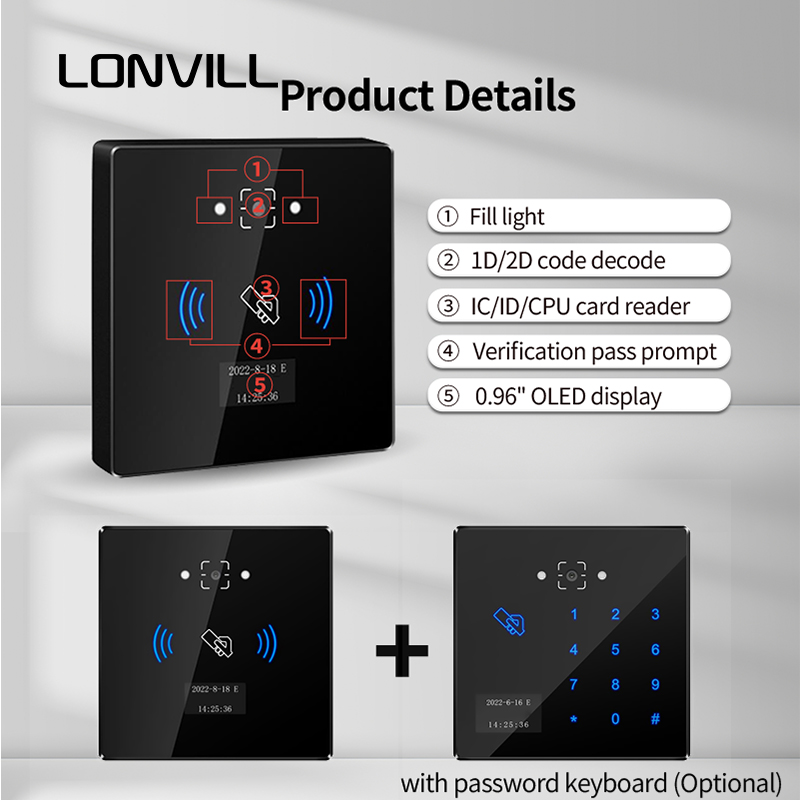

Smart Cloud Access with Multi-Mode Authentication
The CR06 cloud access control reader supports QR code, IC card, CPU card, Bluetooth, and password verification. It allows seamless identity management across offices, residential communities, and public venues. You can switch between online and offline modes, ensuring continuous operation even when the network disconnects. Dynamic QR codes can be verified in offline environments to prevent service interruptions.
Seamless Connectivity and Communication
This reader offers both Ethernet and WiFi networking with TCP/IP communication. It supports HTTP/HTTPS and MQTT protocols for flexible integration. Use our open API to connect third-party systems with ease. The built-in relay output, tamper alarm, exit button, and door magnet simplify hardware integration.

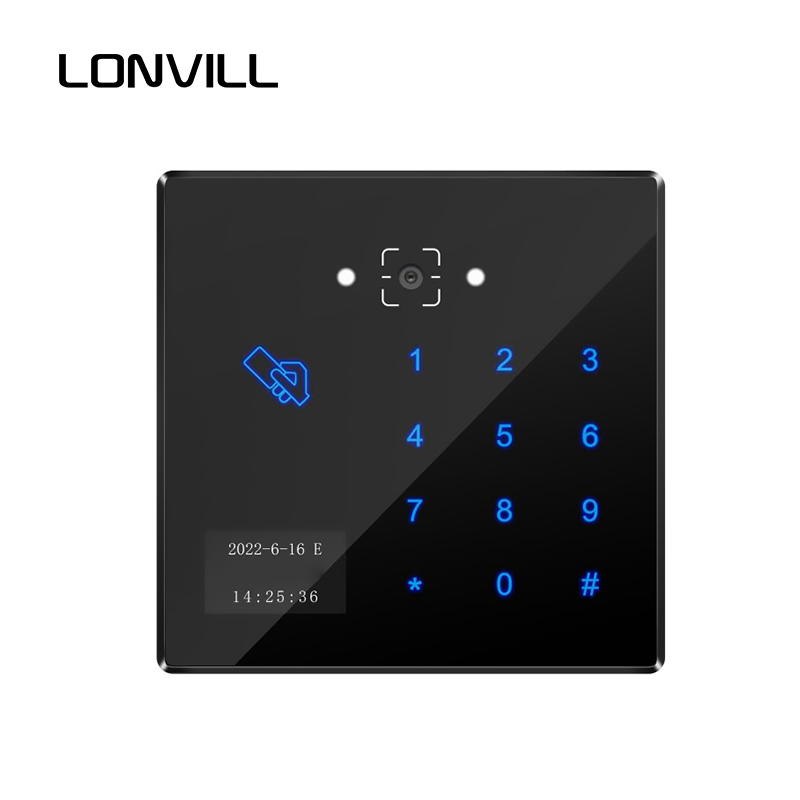

Efficient and Intuitive User Interface
A 0.96-inch OLED screen provides real-time device status. The QR code reading area works within 5–20cm, adapting to different code sizes. Users can view instant feedback when scanning cards or QR codes. Optional voice output enhances interaction, especially in public or high-traffic areas.

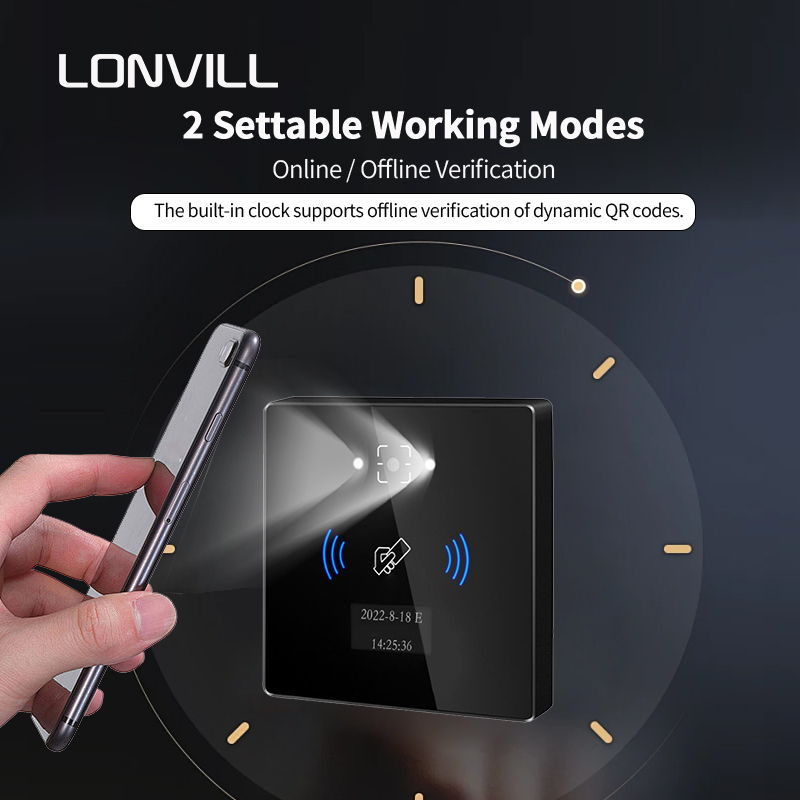

Offline Mode for Reliable Access
The CR06 cloud access control reader stores up to 100,000 whitelist users and logs 100,000 card swipe records. In [Online Priority + Offline Backup] cách thức, it automatically selects the verification method based on network status. [Offline Only] mode ensures functionality in isolated environments. These modes meet the needs of businesses with varying network infrastructures.
Quick and Easy Configuration
You can configure the device by scanning a setup QR code. The configuration tool generates code based on your parameters, enabling fast deployment. This user-friendly setup process reduces maintenance time and training costs.
Industrial-Grade Components and Stability
The reader uses a high-performance domestic CPU and runs on a Linux system. Its independent reset chip ensures reliable performance. Optional Bluetooth connectivity and built-in infrared tamper alarm provide additional flexibility and security.
Suitable for Complex Access Scenarios
CR06 cloud access control readers are ideal for offices, schools, scenic areas, gated communities, Và nhiều hơn nữa. They support secure access for employees, residents, and visitors. You can expand the system easily as your needs grow.
Thông số kỹ thuật
| Operating System | Embedded Linux |
| Output | Relay signal |
| Networking method | Ethernet |
| Main control chip | x1021 chip（XBurst® 800MHz） |
| WIFI(2.4G) Blue tooth(4.0 BLE) | Optional |
| Identification method | QR code/IC card/ID card |
| Storage capacity | Number of offline users (100,000 QR codes, 100,000 Thẻ IC),100,000 offline records |
| Storage memory | 128M Flash |
| Communication protocols | http, https, MQTT |
| Input & Output | Two inputs (for connecting buttons to open the door and door sensors); one infrared anti-tamper alarm sensor output;One relay |
| output (can be used to control electric locks, cổng, vân vân.) | |
| Anti-tamper alarm(optional) | Support local alarm and signal output, which can be transmitted to the background in real time |
| Extended communication interface | Wiegand output or 485 output (optional, choose one, default Wiegand output) |
| Monitor | OLED 0.96-inch monitor |
| Exterior Dimensions | 86*86*16.5mm |
| Material | ABS+tempered glass |
| Cân nặng | 200g |
| Symbology | 2D: Mã QR, Ma trận dữ liệu, PDF417，Hanxin code |
| 1D: EAN-8, EAN-13, UPC-A, UPC-E, Mã số 39, Mã số 93, Code 128,Code 128C, UCC/EAN 128, Codabar, Xen kẽ 2 of 5,ITF-6,ITF-14, | |
| ISBN, Databar GS1, GS1 Composite Code, Ma trận 2 of 5,Code 11, Công nghiệp 25, Tiêu chuẩn 25, Plessey, MSI-Plessey | |
| Sự chính xác* | ≥7mil |
| Speed | <200 mili giây |
| Quét góc ** | Roll 士360°, Skew 士55°, Pitch 士55° |
| Trường quan điểm | Diagonal 84°, horizontal 72°, vertical 54° |
| Recognition distance | 5-20cm |
| QR code support range | 1024 characters |
| Card types | Support ISO1443A/ISO1443B protocol card |
| Working frequency | 13.56MHz |
| IC card reading sector | supports IC card reading sector |
| CPU card reading text parts (optional) | Support CPU card to read files |
| Reading distance | IC card: less than 5CM; ID card: less than 3CM |
| ID card (optional) | supports 125K EM card |
| Điện áp hoạt động | DC 6V~25V |
| Current Operating | 180MA (12V supply) |
| Current Standby | 120MA (12V supply) |
| Audio amplifier (optional) | 8 ohms: 1W; 4 ohms: 3W |
| Relay load capacity | 1A current |
| Waterproof level | IPX7 |
| electrostatic rating | Air discharge ±12KV, Contact discharge ±6KV (power supply must be effectively grounded) |
| Hoạt động temp. | -20°C~+60°C |
| Nhiệt độ lưu trữ. | -40°C~+80°C |
| Hoạt động temp. | -10°C~+60°C |
| Nhiệt độ lưu trữ. | -40°C~+70°C |
| Độ ẩm | 95% (không áp dụng) |
| Ánh sáng xung quanh | noon sunlight, low light source at night |
