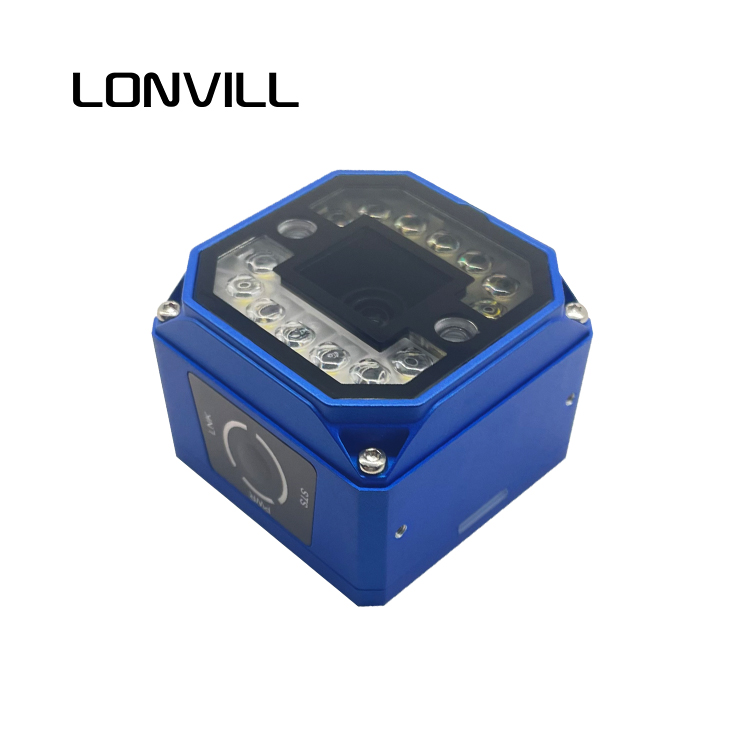

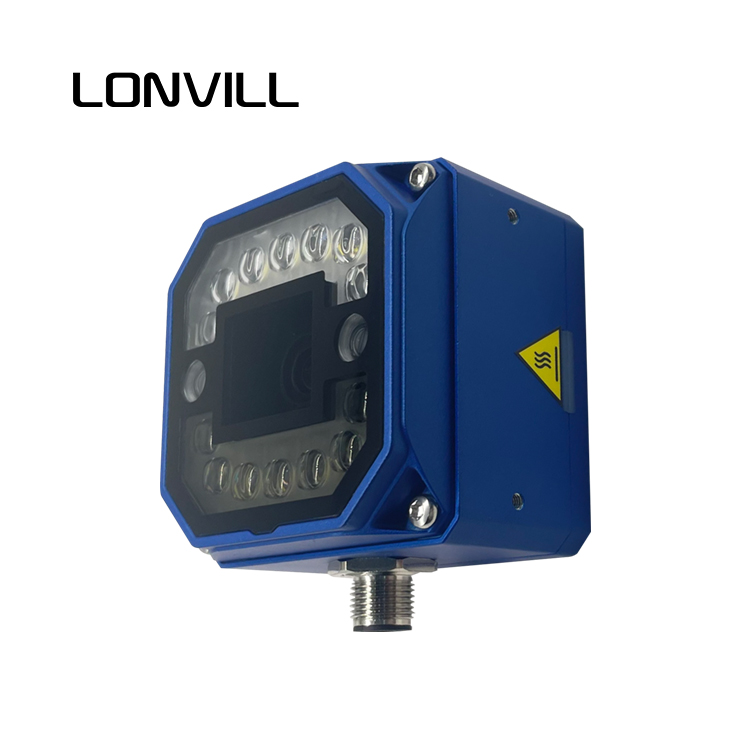

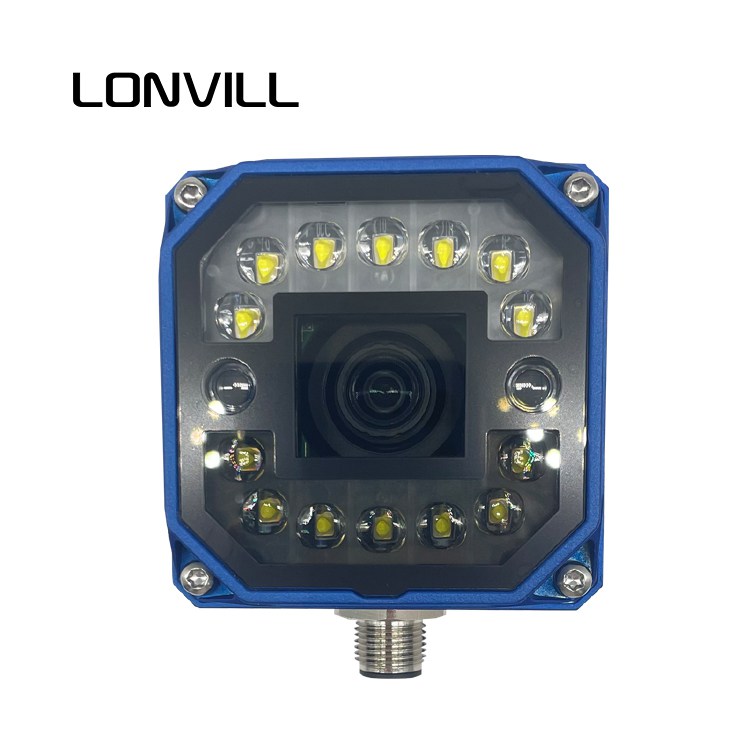

The LONVILL A6500 is an industrial 2D barcode scanner with a high-resolution sensor, AI decoding, and up to 60 FPS processing. It supports multiple protocols, offers rich I/O, and has IP67 protection, making it ideal for high-speed, complex applications across various industries.
The Lonvill A6500 is a powerful 2D barcode scanner built for fast-paced industrial environments. Its high-resolution sensor and deep learning decoding engine make it a reliable choice for demanding scanning tasks. Whether dealing with low-contrast codes or worn labels, the A6500 captures data with speed and precision.
Its advanced imaging technology allows it to read both 1D and 2D barcodes easily. The scanner supports various barcode types, including QR, DataMatrix, PDF417, Và nhiều hơn nữa. The deep-learning algorithm optimizes recognition accuracy even under challenging lighting or surface conditions.
The A6500 integrates seamlessly into automation systems with its rich I/O interface. It offers multiple input and output signals, making it easy to communicate with control systems. From production lines to warehouse conveyors, this 2D barcode scanner fits in effortlessly.
Engineered for user convenience, the A6500 features dual side waistline indicators, a top ring light, and a waterproof debug button. Operators can instantly view status from various angles, which improves workflow visibility. The smart physical design speeds up setup, monitoring, and maintenance.
Connectivity is another highlight. The scanner supports TCP, Serial, FTP, and industrial protocols like Profinet. This makes the A6500 compatible with a wide range of industrial platforms. Whether in logistics, manufacturing, or electronic assembly, the scanner adapts to your communication needs.
Built to last, the A6500 offers IP67-grade protection. Dust, water, and extreme temperatures won’t slow it down. You can count on stable performance in any tough environment, including high-humidity zones and outdoor industrial areas.
In summary, the A6500 2D barcode scanner combines precision, tốc độ, and durability. Its versatile I/O and protocol support make integration easy, while its rugged build ensures years of reliable operation. Choose the A6500 to streamline your data capture and improve automation reliability across your workflow.
Hiệu suất | |
Parameters | 1280 × 1024 pixels |
Bar Code Category | 1D codes: |
Mã số 39, Mã số 93, Mã số 128, CodaBar, EAN 8, EAN 13, UPCA, Upce, ITF 14, ITF 25, Ma trận 25, MSI, China Post, Mã số 11 and Industrial 25,etc. | |
2D codes: | |
Mã QR, Ma trận dữ liệu, PDF 417,etc. | |
Maximum processing frame rate | 60 fps |
Maximum read speed | 80 codes/second |
Sensor Type | CMO, global shutter 3.2 µm × 3.2 µm |
Image size | 3.45 µm x 3.45 µm |
Target surface size | 1/2.9″ |
Nghị quyết | 1280 × 1024 |
Exposure time | 16 μs ~ 1 sec |
Gain | 0 ~ 40 dB |
Maximum Resolution | 1D 3mil; 2D 5mil |
Communication protocols | Smart SDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP |
Electrical Characteristics | |
Giao diện | 17-pin M12 interface provides power, Ethernet, digital IO, and serial port functions |
Ethernet | Fast Ethernet (100 Mbit/s) |
Digital I/O | Includes 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS-232; supports device triggering via top button |
Electricity supply | 12 ~ 24 VDC |
Maximum power consumption | 20 W@24 VDC (fill light on) |
Structure | |
Different focal lengths correspond to scanning angles | 06mm: 46*38; 12mm: 24*20; 15mm: 20*16 |
Lens Interface | M12-mount, mechanical autofocus |
Patch Light | 6 independent control of a total of 14 white light, half with polarizer hood |
Light source | Spot white light, optional spot red/blue light, wide angle white/blue light |
Indicator light | Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG |
Kích thước | 65.2 mm×65.2mm×47.2mm |
Cân nặng | Approx. 290 g |
IP Protection Rating | IP67 (with proper lens waterproof cover installed correctly) |
Temperature | Operating temperature 0 ~ 50℃, storage temperature -30 ~ 70℃ |
Độ ẩm | 20% ~ 95%RH non-condensing |
General Specifications | |
Software | Full-featured image debugging and machine setup software |
