A65-SR industrial fixed barcode scanner: Equipped with a 1.3-megapixel (1280×800) global-shutter CMOS sensor, this industrial decoding solution incorporates a 12-zone programmable illumination array. Engineered for challenging surface geometries, it delivers deterministic scanning performance on specular finishes and curved substrates. Proprietary Adaptive Code Reconstruction algorithms ensure reliable interpretation of compromised symbologies exhibiting damage or ≤30% contrast differentials. High-Velocity Decoding Capability maintains uncompromised read integrity at 2m/s linear transit speeds.
The A65-SR fixed barcode scanner provides robust decoding for automated applications. It uses a global shutter 1.3MP CMOS sensor that captures precise details with fast shutter speeds. Its small form factor fits tight spaces in industrial systems. The unit withstands harsh factory environments while delivering accurate and consistent results. With IP65-rated protection and rugged aluminum housing, it resists dust and water exposure. Installers easily integrate the device into existing automation lines, saving space and maintenance time.

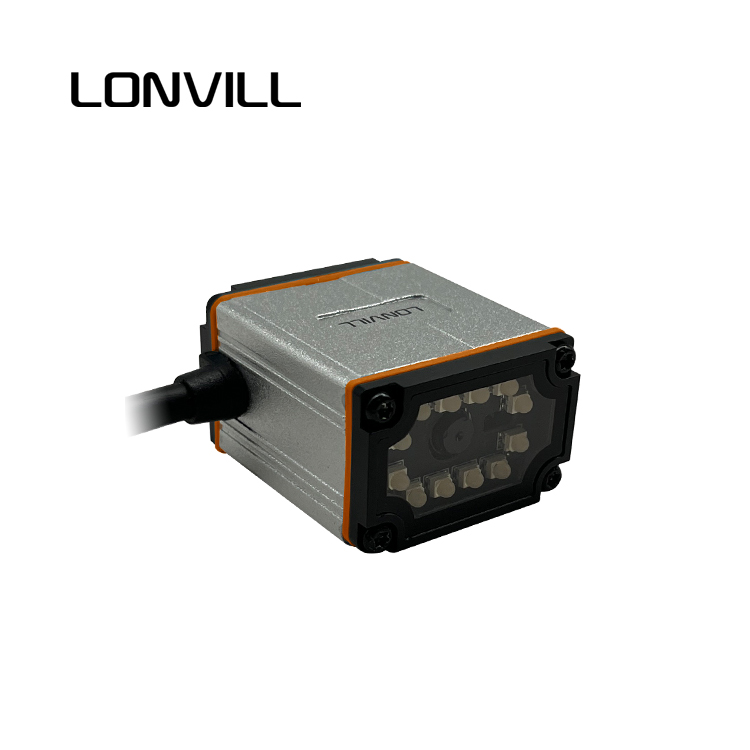

This scanner delivers unmatched decoding in difficult conditions. Its proprietary adaptive decoding engine reads worn, cong, and low-contrast barcodes. Smart illumination uses a 12-zone LED system to adjust intensity per section. Engineers benefit from dynamic light control to optimize contrast on reflective or bent surfaces. Whether it’s a glossy PCB or a rounded syringe, the A65-SR provides accurate scans in milliseconds.
Motion compensation lets the A65-SR capture codes at up to 2 meters per second. It maintains scan accuracy without losing sync in fast-moving lines. The high-velocity decoding architecture processes symbols without delay. Even small or degraded barcodes are decoded reliably. Operators avoid rescans, reducing process interruptions. The device improves output efficiency and ensures code integrity under rapid transit.
The A65-SR fixed barcode scanner supports multiple automation environments. You can deploy it in electronics SMT lines, solar panel fabrication, medical device assembly, or CNC machining. It performs equally well in packaging stations or ATE test benches. Use it to confirm part identity, validate assembly, or match traceability data. Developers can configure scan zones and customize triggering to match system flow.
Engineers benefit from programmable illumination zones. This allows precise targeting of complex code areas. Its compact size fits robotic arms, conveyor belts, and enclosed test chambers. The scanner requires minimal calibration thanks to auto-brightness adjustment. Setup takes minutes using simple mount points and interface ports. Lonvill’s algorithm ensures readable output even on substrates with under 30% contrast. No extra PC required for preprocessing. System integrators appreciate the low power draw and stable output.
Pixel | 1280 (H) * 800 (V) COMS |

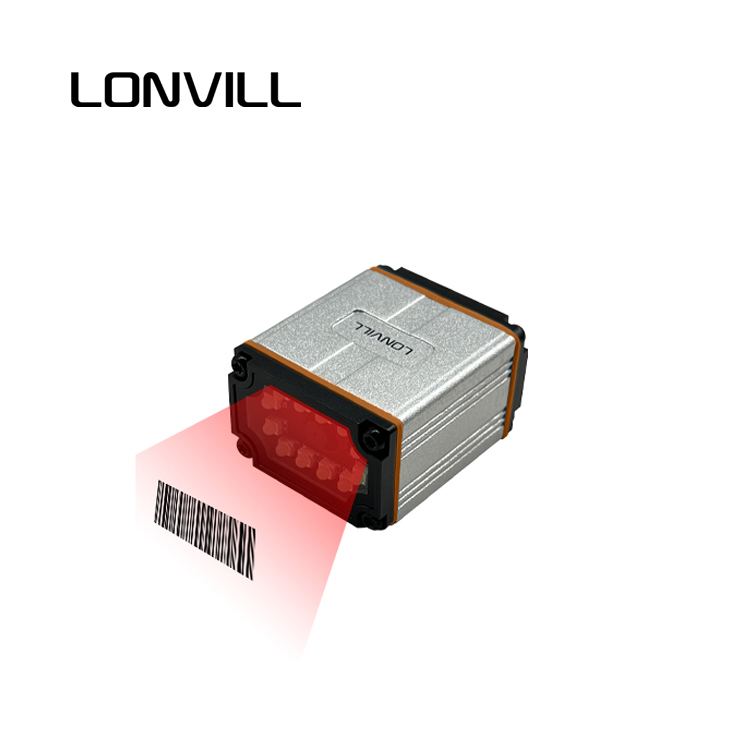

Lighting | Red light source |
Focus | Green aiming LED |
Reading mode | Key mode, automatic sensing, continuous scanning, pulse mod |
Code system | 2D: Ma trận dữ liệu , Mã QR , Micro QR,PDF417, Micro PDF417 MaxiCode, Aztec |
1D: UPC A , UPC E , EAN 8 , EAN 13 , Mã số 128 , Mã số 39 , Mã số 93 ,Mã số 32 , Code11 , Codabar ,Plessey , MSI , Xen kẽ 2 của 5 ,Iata 2 của 5 , Ma trận 2 của 5 , Thẳng 2 của 5 , Dược điển , RSS-14 ,RSS-14 Expanded , RSS-14 Limited , Composite Code-A ,Composite Code-B , Composite Code-C | |
Reading accuracy | 1D: ≥3 mil ; 2D: ≥5 triệu |
Depth of field | Mã số 39 (4Mil) 40mm~110mm |
Ma trận dữ liệu(10Mil) 35mm~300mm | |
100% UPCA (13Mil) 35mm~300mm | |
Field of view Angle | Ngang 46 ° (H), vertical 29° (V) |
In tương phản | ≥20% |
Kích thước | 36(W)*38(D)*24(H)(mm) |
Cân nặng | ≈85g (excluding cables) |

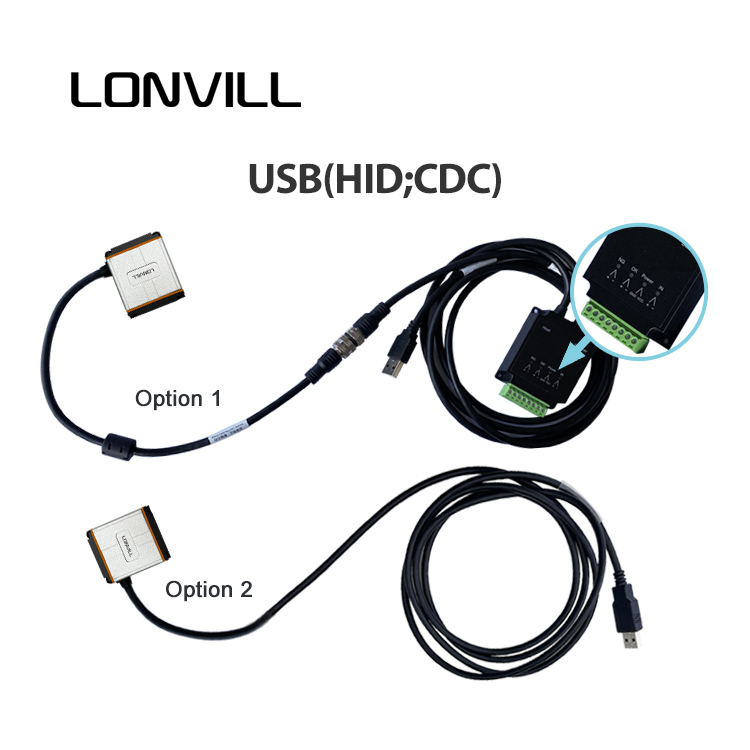

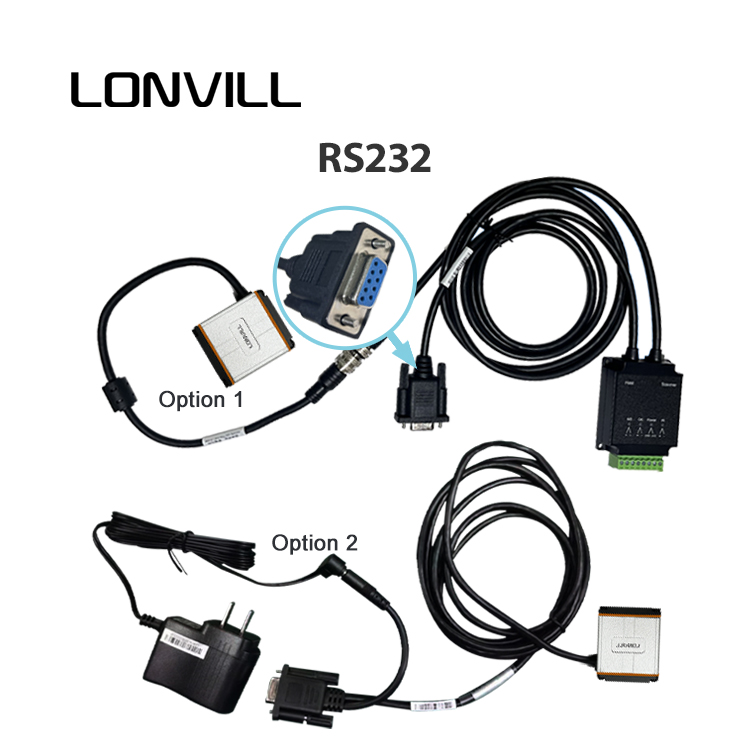

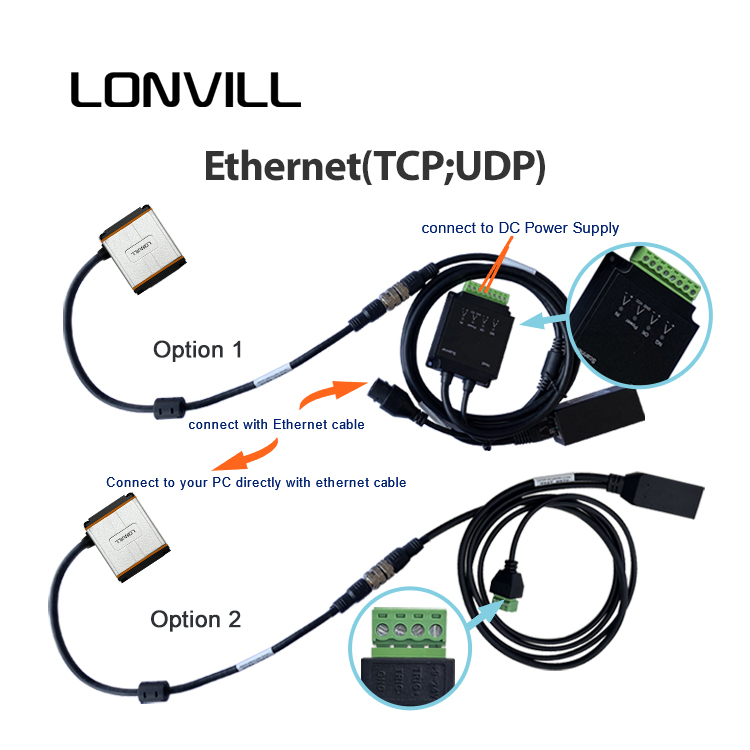

Giao diện | RS-232 / USB (HID ; CDC)/RS-232 to network port |

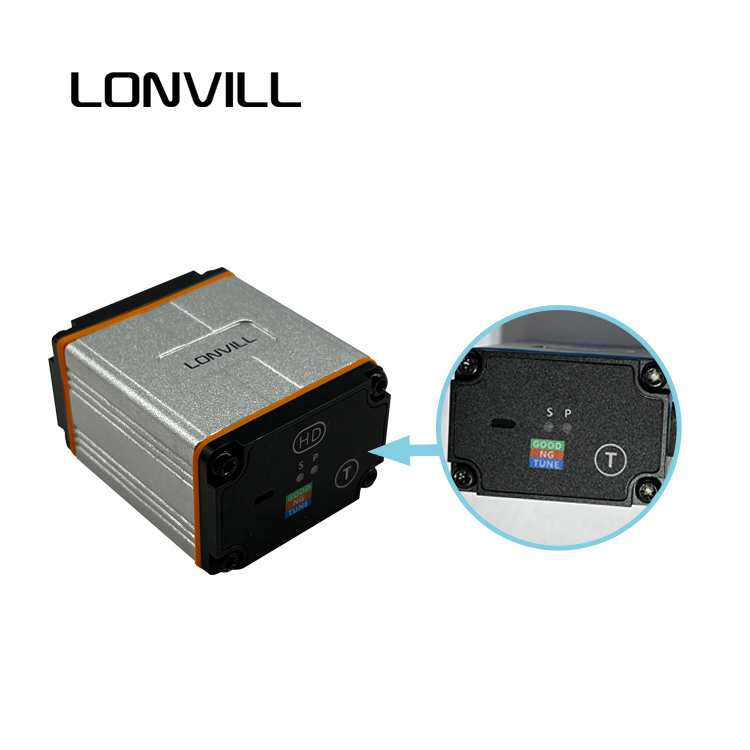

Prompt mode | Buzzer, LED indicator light |
Working voltage | DC 5V to 24V±5% (connected to the I/O control box) |
Working current | 300 ma ± 5% (typical value), 450 ma ± 5% (maximum value) |
Hiện tại chờ | 100 ma ± 5% |
External output | 2-channel optical couple isolated output (Good; “NG” |
Kích hoạt OptoCoupler đầu vào | 1-channel optical couple isolated input (NPN/PNG/relay) |
Working temperature | -20℃ ~+50 |
Storage temperature | -40℃~+70℃ |
Relative humidity | 5% ĐẾN 95% (no condensation) |
Electrostatic protection | ±20 kV (Xả không khí), ± 8 kV (Xả trực tiếp) |
Drop height | 1.5M |
Protection grade | IP65 |
Certification | FCC Part15 Class B,CE,EMC lớp b |
