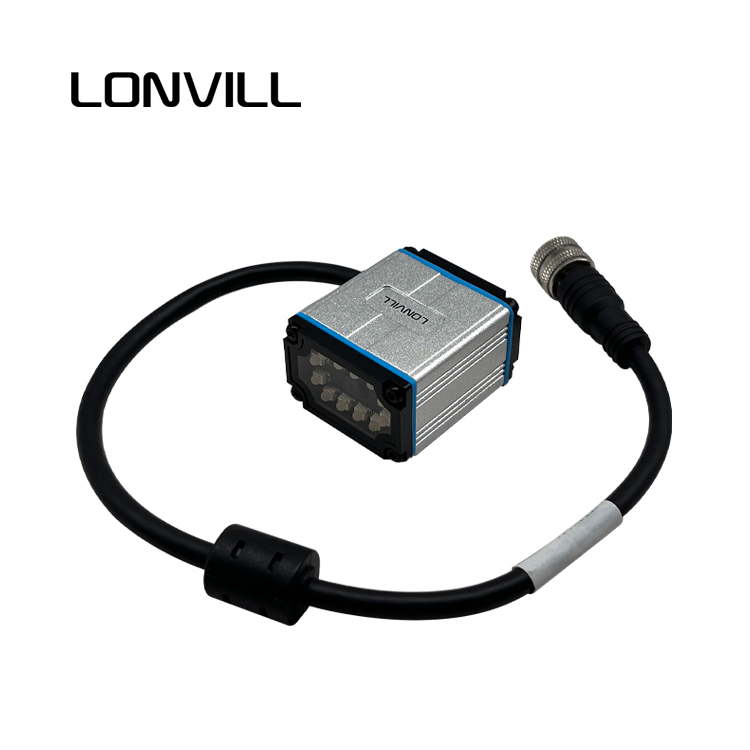

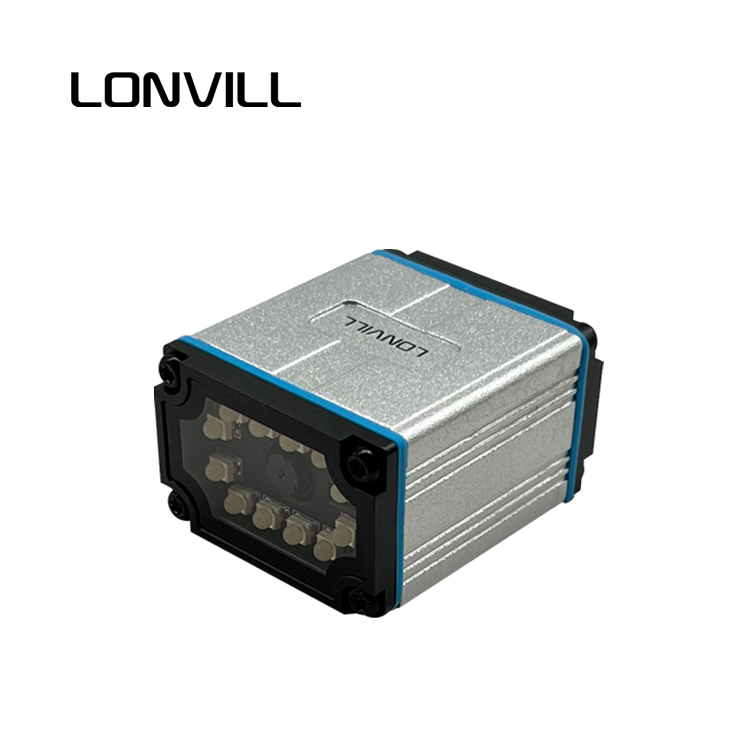

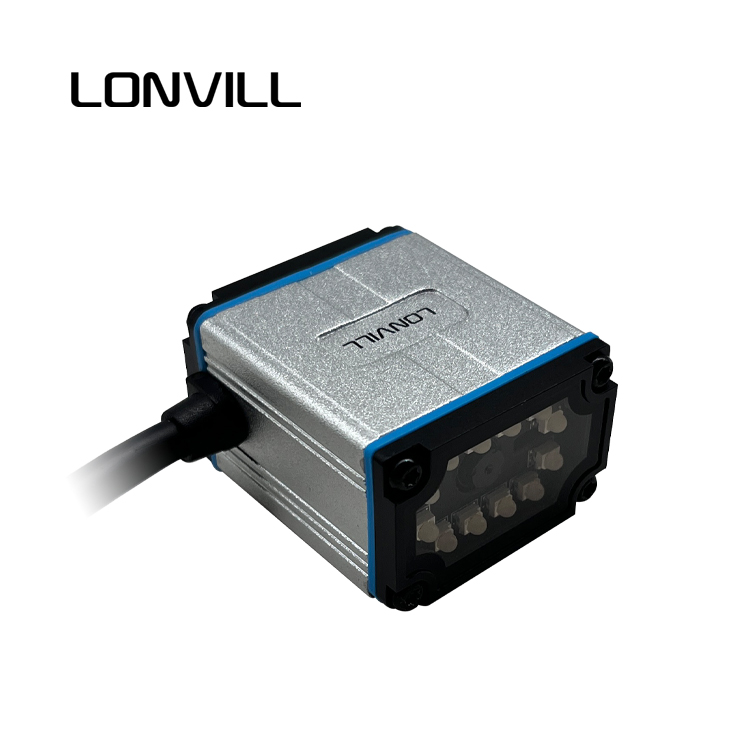

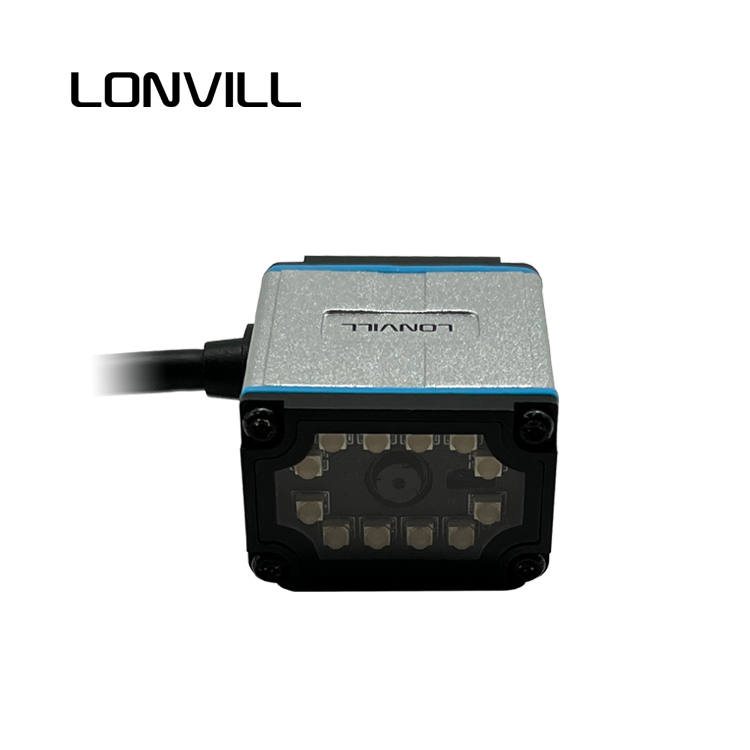

Máy quét mã A65-HD cho người sắp xếp logistic
A65-HD industrial solid scanning is equipped with a 1280 × 800 high-definition image sensor, integrated with 12 zone controllable LED light source, suitable for scanning reflective curved materials, combined with intelligent image correction technology, can reconstruct damaged and low contrast barcodes, and can decode at 2m/s high-speed without pressure. Aluminum alloy shell+IP65 protection, resistant to dust, oil, and vibration impact; Supporting flexible and compatible interfaces with automation devices, A65-HD has become an ideal visual solution in the fields of intelligent manufacturing, automated testing, and self-service terminals due to its high-definition imaging, dynamic decoding, and industrial robustness.
-
Pixel: 1280 (H) * 800 (V) COMS
-
Protection grade: IP65
-
Field of view Angle Horizontal 46° (H), vertical 29° (V)
-
Kích thước: 36(W)*38(D)*24(H)(mm)
-
Cân nặng: ≈85g (excluding cables)
-
Prompt mode: Buzzer, LED indicator light
-
Hiện tại chờ: 100 ma ± 5%
-
Working voltage: DC 5V to 24V±5% (connected to the I/O control box)
-
Working current: 300 ma ± 5% (typical value), 450 ma ± 5% (maximum value)
Đặc trưng
High-Speed Decoding for Logistics & Automation
The A65-HD code scanner delivers high-speed decoding for complex logistics and automation systems. It integrates a 1280×800 HD image sensor to capture fine barcode details accurately. This sensor supports high-resolution imaging in dynamic working environments.
Precision Imaging with Adaptive Lighting
With 12-zone adjustable LED lighting, the scanner adapts to various reflective or curved materials. It decodes damaged or low-contrast codes with stability. Intelligent image rectification enhances accuracy under difficult conditions. The scanner processes codes at speeds up to 2 meters per second, ensuring reliable data acquisition during fast-moving operations.
Độ bền công nghiệp & IP65 Protection
Its aluminum alloy housing provides industrial-grade durability. The IP65 sealing protects against dust, oil, and vibration, allowing consistent performance in harsh environments.
Flexible Connectivity for Seamless Integration
A65-HD supports USB, RS232, and Ethernet interfaces. Users can choose a direct cable connection or an optional IO box. This makes it highly compatible with automated control systems across industries.
Customizable LED Zones for Application Flexibility
The flexible lighting configuration includes top, bottom, left, and right LED arrays. Operators can switch individual zones based on application needs. The built-in intelligent engine adjusts exposure dynamically, ensuring precise scans even on reflective surfaces.
Versatile Deployment Across Industries
Whether used in assembly lines or CNC stations, the scanner adapts seamlessly. It integrates into mobile device production lines, ki-ốt tự phục vụ, or PV module synchronization systems. Its robust construction and compact form enable easy OEM integration.
Reliable Performance for OEM & Medical Applications
Medical device makers and testing equipment manufacturers trust its reliability. This scanner supports real-time data exchange for traceability and performance analysis. You can count on it to reduce scan errors and improve operational efficiency.
Engineered for Demanding Environments
Its consistent decoding makes it ideal for critical industrial applications. From high-speed tracking to secure label verification, A65-HD delivers stable performance across varied use cases.
Quality Assurance from a Trusted Manufacturer
Lonvill’s strict quality control ensures each unit meets industry compliance and passes endurance tests. Partner with us to upgrade your automation process with intelligent, high-speed scanning.
Thông số kỹ thuật
| Pixel | 1280 (H) * 800 (V) |
| Lighting | Red light source |
| Focus | Green aiming LED |
| Reading mode | Key mode, automatic sensing, continuous scanning, pulse mod |
| Code system | 2D: Ma trận dữ liệu , Mã QR , Micro QR，PDF417, Micro PDF417 MaxiCode， Aztec |
| 1D: UPC A , UPC E , EAN 8 , EAN 13 , Mã số 128 , Mã số 39 , Mã số 93 ,Mã số 32 , Code11 , Codabar ,Plessey , MSI , Xen kẽ 2 của 5 ,Iata 2 của 5 , Ma trận 2 của 5 , Thẳng 2 của 5 , Dược điển , RSS-14 ,RSS-14 Expanded , RSS-14 Limited , Composite Code-A ,Composite Code-B , Composite Code-C | |
| Reading accuracy | 1D: ≥3 mil ; 2D: ≥5 triệu |
| Depth of field | Code39(3Mil) 50mm ~ 90mm |
| UPC-A (13Mil) 30mm~165mm | |
| Mã QR (7Mil) 35mm ~ 120mm | |
| Ma trận dữ liệu (10Mil) 40mm ~ 150mm | |
| Field of view Angle | Ngang 46 ° (H), vertical 29° (V) |
| In tương phản | ≥20% |
| dimensions | 36（W）×38（D）×24（H）(mm) |
| Cân nặng | ≈85g (excluding cables) |
| Giao diện | RS-232 / USB (HID ; CDC)/RS-232 to network port |
| Prompt mode | Buzzer, LED indicator light |
| Working voltage | DC 5V to 24V±5% (connected to the I/O control box) |
| Working current | 300 ma ± 5% (typical value), 450 ma ± 5% (maximum value) |
| Hiện tại chờ | 100 ma ± 5% |
| External output | 2-channel optical couple isolated output (Good; “NG” |
| Kích hoạt OptoCoupler đầu vào | 1-channel optical couple isolated input (NPN/PNG/relay) |
| Working temperature | -20℃ ~+50 |
| Storage temperature | -40℃~+70℃ |
| Relative humidity | 5% ĐẾN 95% (no condensation) |
| Electrostatic protection | ±20 kV (Xả không khí), ± 8 kV (Xả trực tiếp) |
| Drop height | 1.5M |
| Protection grade | IP65 |
| Certification | FCC Part15 Class B，CE，EMC lớp b |
