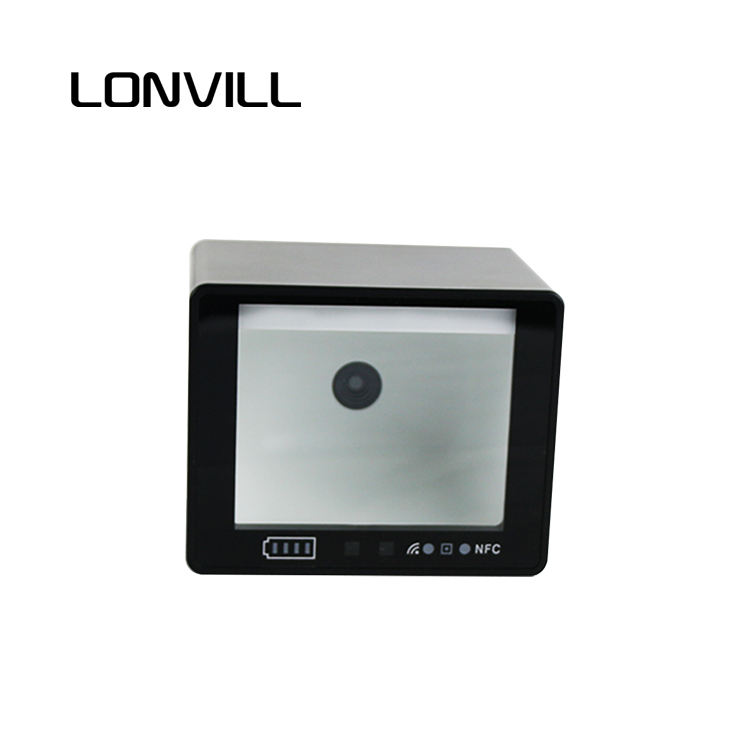

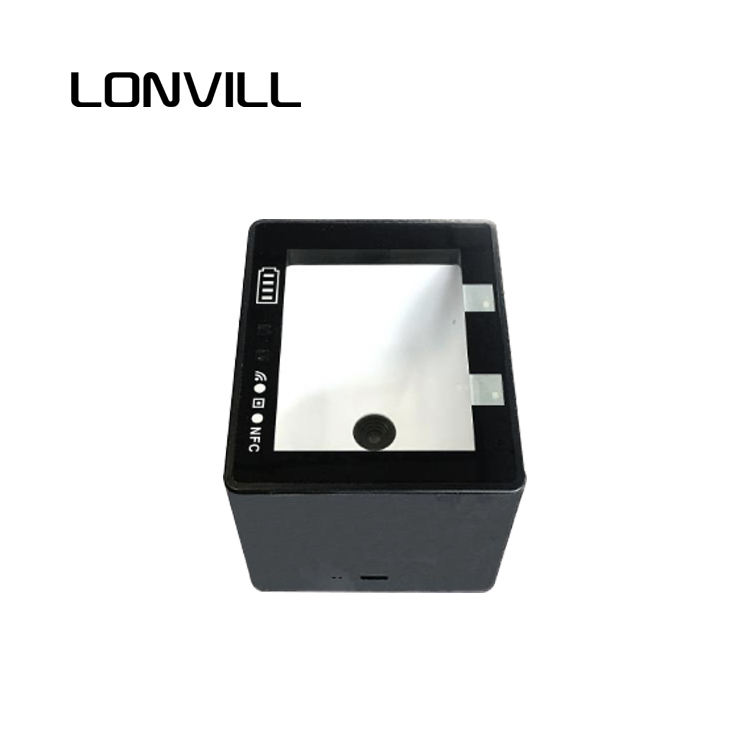

M1902 модуль встроенного штрих -кода
This scanner module supports 13.56MHz non-contact IC card (A/B type) and wide-angle scanning. Its feature is embedded voice prompts for operation feedback and multiple interfaces for quotation (USB Type-C, USB COM, RS232), with optional Bluetooth/2.4G wireless+battery flexible deployment. Other modules enable OCR-A/B number recognition and NFC card swiping Very suitable for high-density paper/mobile code scanning, its applications cover conference check-in, Контроль доступа, ID/passport OCR, payment systems, and medical self-service terminals.
-
Image sensor: 1280 * 800 Пиксели
-
View angle: 55° (ЧАС) * 45° (V.)
-
Motion tolerance: ＞2m/s
-
Reading distance: ≤7cm
-
Измерение(мм): 95мм * 75mm*67mm
-
Масса: 223g（with battery）
-

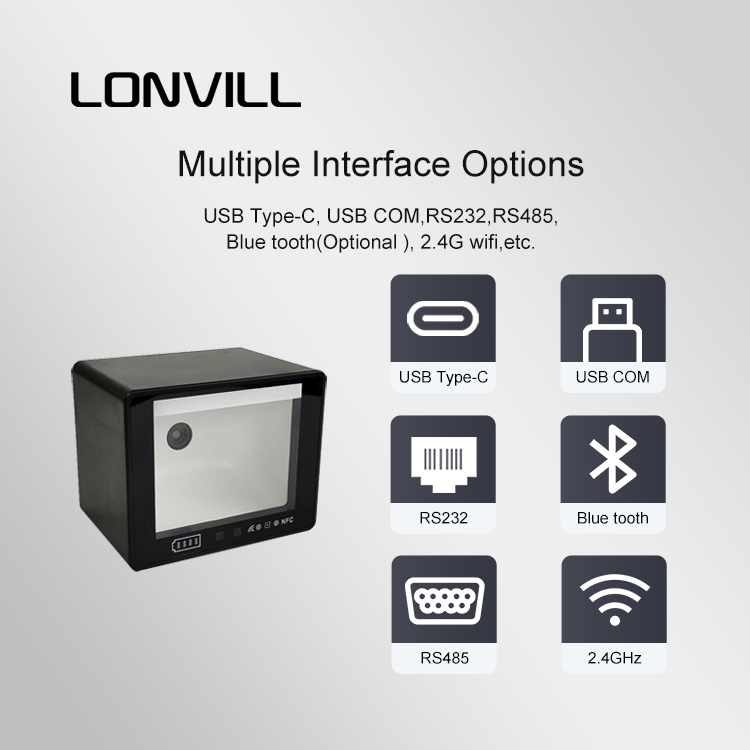

Интерфейс: USB Type-C, USB COM,RS232, Blue tooth(Optional ), 2.4G
Функции
Imaging and Processing Core
1.3 million pixel computational imaging based on AI decoding kernel (1280 × 800)
Zero gap reading technology: wide-angle optical system can capture barcodes pressed flat on the surface
Multimodal identification
NFC/RFID integration: 13.56MHz non-contact IC card reader (compliant with ISO 14443 A/B standard)
OCR Engine Extension: Optional OCR-A/B Font Recognition for Document Processing
Hybrid wireless architecture: Bluetooth 5.2+2.4G RF dual-mode, with hot swappable battery
Deployment situation
Audiovisual feedback: configurable voice prompts+tri color LED status indicator lights
Protocol independent connection: USB-C/USB COM/RS232, plug and play deployment
Modular expansion: NFC/OCR/wireless daughter board that can be installed on-site
Application scenarios
⊙ Secure access: OCR with ID card/passport+IC card authentication
⊙ Healthcare: Drug barcode+patient ID verification
⊙ Retail: Mobile payment code+membership card scanning
⊙ Enterprise: visitor management+conference check-in
Спецификации
| Image sensor | 1280 * 800 Пиксели |
| Источник света | White LED（6500K） |
| Симбологии | 2Дюймовый:PDF417, MicroPDF417, Матрица данных, Maxicode, QR -код, MicroQR, Ацтек, Hanxin, и т. д.. 1Дюймовый: UPC, Эн, Код 128, Код 39, Код 93, Код 11, Матрица 2 из 5, Кодабар,Чередовано 2 из 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal,и т. д.. OCR: Comply with OCR-A, OCR-B font standards (*customized version) |
| Разрешение | 2D≥7mil，1D≥3.9mil |
| Typical reading depth | Code128 10mil paper code: 0~90mm Code128 18bytes mobile code: 0~120mm QR 10mil 160bytes paper code: 0~55mm QR Code 20mil :0~100mm DM 15mil 100bytes Paper code: 0~90mm QR 18bytes Mobile code: 0~255mm |
| Символ контраст | ≥25% |
| Bar code sensitivity | Tilt±70°，deflection±70°，rotation 360° |
| View angle | 55° (ЧАС) * 45° (V.) |
| Motion tolerance | ＞2m/s |
| Card reader type | 13.56Mhz non-contact IC card reader, supporting Type A/B card reading |
| Reading distance | ≤7cm |
| Интерфейс | USB Type-C, USB COM,RS232, Blue tooth(Optional ), 2.4G |
| Измерение(мм) | 95мм * 75mm*67mm |
| масса | 223g（with battery） |
| Volatage | 5V USB power supply or 5V~1A adapter (optional 2000mA built-in battery） |
| current | 250магистр (working); 50магистр (standby); DC 5±0.25V (charging) |
| Рабочая температура | -20℃~+60℃ |
| Температура хранения | -30℃ ~+70 ℃ |
| Working humidity | 5%~95%（no condensation） |
| Environment Light | 0~ 100 000 л |
| Статическая защита | ±15kV (воздушный разряд); ±8kV (прямой разряд) |
