M1605 Ультра -тонкие модули сканера

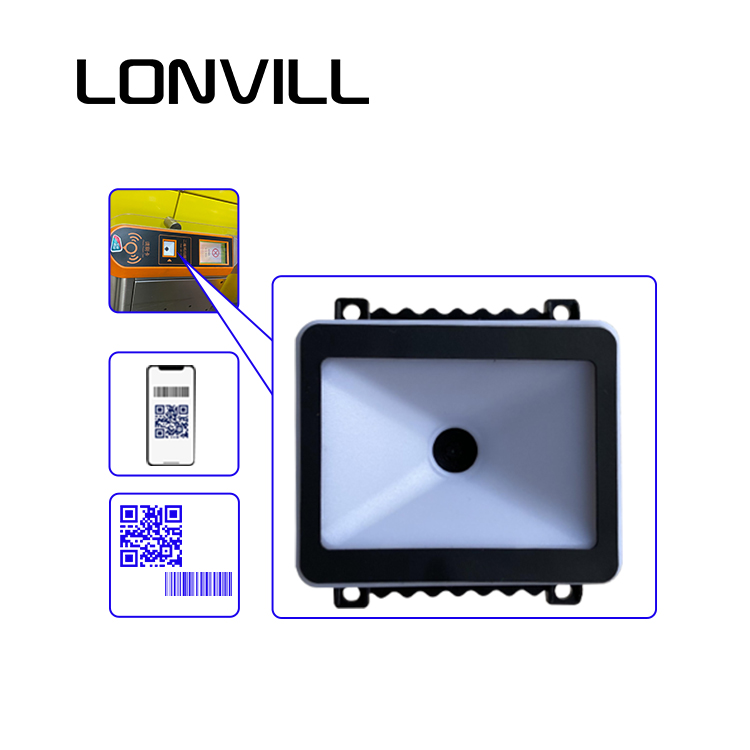

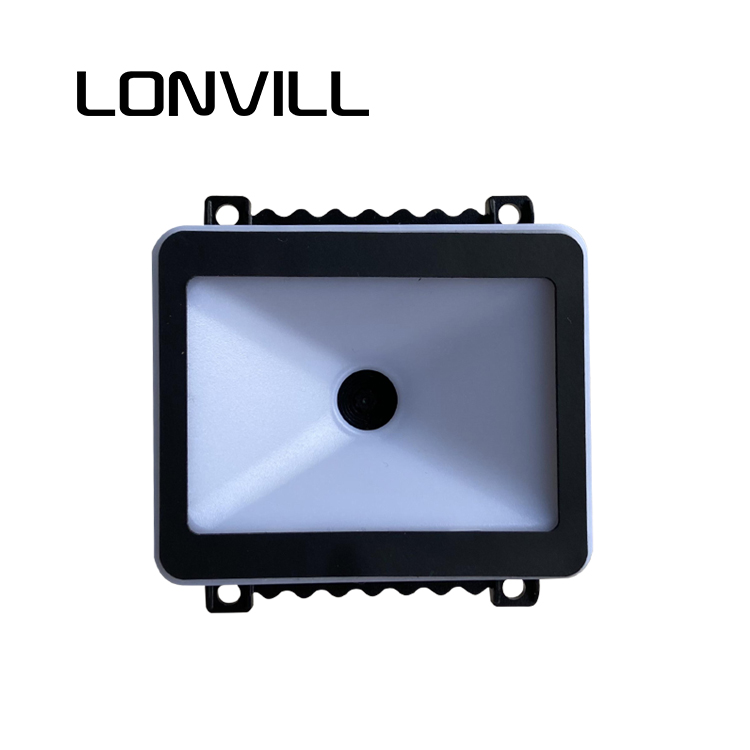

M1605 barcode scanning platform is a highly integrated, responsive, and stable barcode and QR code recognition product. Can read various mainstream one-dimensional barcodes and mainstream two-dimensional codes. The product has a very good scanning experience within the field of view angle and scanning depth range. The ultra-thin and compact product structure, with a total thickness of no more than 29mm, can greatly meet the ultimate size requirements of users. This product can be applied to self-service devices, payment, Контроль доступа, and other fields.
-
Датчик: 640*480 CMOS
-
Scan Speed: 50РС
-
Точность: 6мил
-
Печатный контраст: ≥25%
-
Масса: 41глин
-
Размеры: 65mm*64mm*30mm
-
Интерфейс: RS232, USB, Micro-USB,Ттл, RS485
Функции
Core architecture

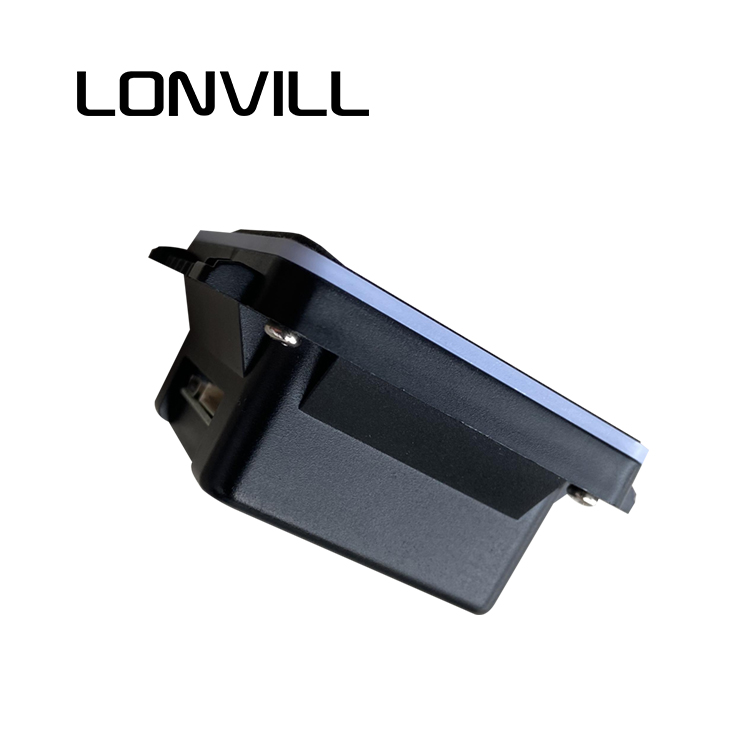

Thin embedded design: Total thickness<29мм, using reinforced optical glass, can be seamlessly integrated into devices with limited space
Multi symbol engine: decodes all industry standard 1D barcodes and 2D codes (including QR/DM/Aztec) with industrial grade accuracy
Product Highlights
Adaptive depth of field, optimized optical path maintains consistent reading rate within variable scanning distance
Photon capture optics reliably recognizes paper/screen codes under natural ambient light
Ultra sensitive scanning minimizes transaction latency in payment/access applications to the greatest extent possible
Deployment advantages

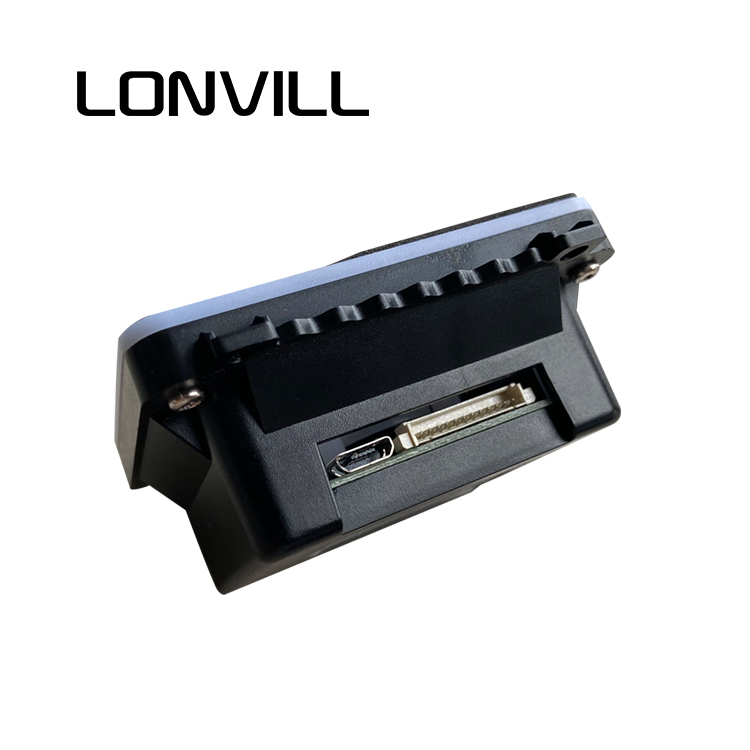

Protocol independent connection: Supports USB-C/Mini USB, RS232/TTL, RS485, with hot swappable functionality
Dual color visual feedback: Dual (white/green) LED indicator lights can instantly confirm the operation status
EMV compliant enclosure: EMI shielding structure prevents interference in financial environments

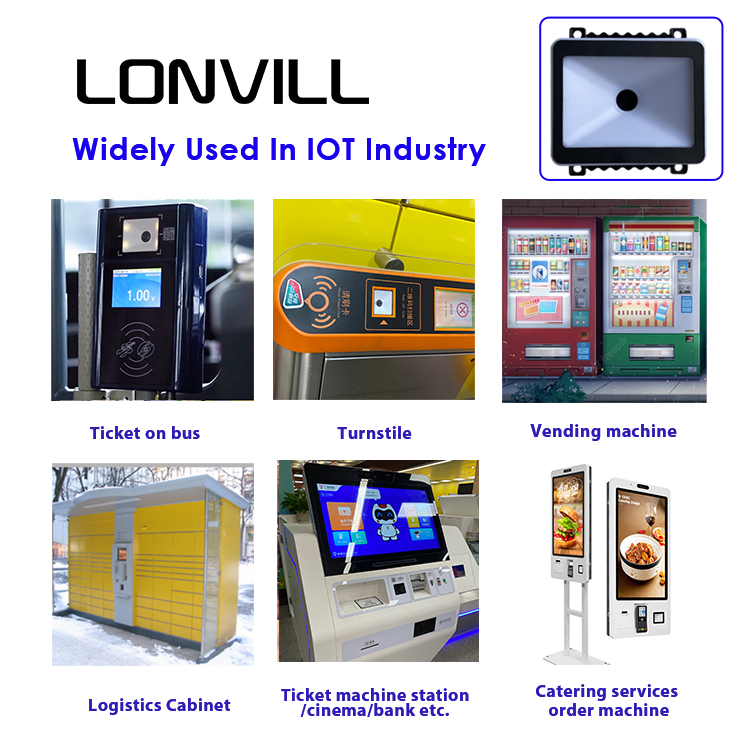

Specific Application Engineering
⊙ Self service terminal: space saving design suitable for the installation of vending kiosks/turnstiles
⊙ Cashless payment system: screen code reading for mobile wallet verification
⊙Security access control: The tamper proof structure complies with physical security standards
Спецификации
| Датчик | 640*480 CMOS |
| Поле зрения | Horizontal 65º, Opposite 80º, Vertical 51º |
| Scan Speed | 50РС |
| Декодировать емкость | 2Дюймовый: QR code |
| 1Дюймовый: UPC, Эн, Код 128, Код 32, Код 39 | |
| Точность | 6мил |
| Сканирование расстояния | UPC-A (16 мил) : 3CM-11см |
| QR code (payment code) : 2cm-22cm | |
| Печатный контраст | ≥25% |
| Угол сканирования | Рулоть ⼠ 360 °, Skew ⼠55°, Pitch ⼠55° |
| Режим сканирования | Auto sensing/continuous/trigger |
| Интерфейс | RS232, USB, Micro-USB,Ттл, RS485 |
| Размеры | 65mm*64mm*30mm |
| Масса | 41глин |
| Индикатор | Светодиодный свет (white, green) |
| Рабочее напряжение | 4.75V-12.6V/3.0V-3.6V |
| Power consumption | 0.675W. (5V.)/ 0.62W. (3.3V.) |
| Эксплуатационный ток | 135магистр (5V.) / 188магистр(3.3V.) |
| Резервный ток | 62магистр (5V.) / 65магистр(3.3V.) |
| Индикатор | Светодиодный свет (white, green) |
| Эксплуатационная температура. | 0° C до 60 ° C. |
| Влажность | 5%-95% (no-consdensing) |
| Хранение температура. | -30°C to 70°C |
| Ambient Light Immunity | 0-100,000Люкс |
