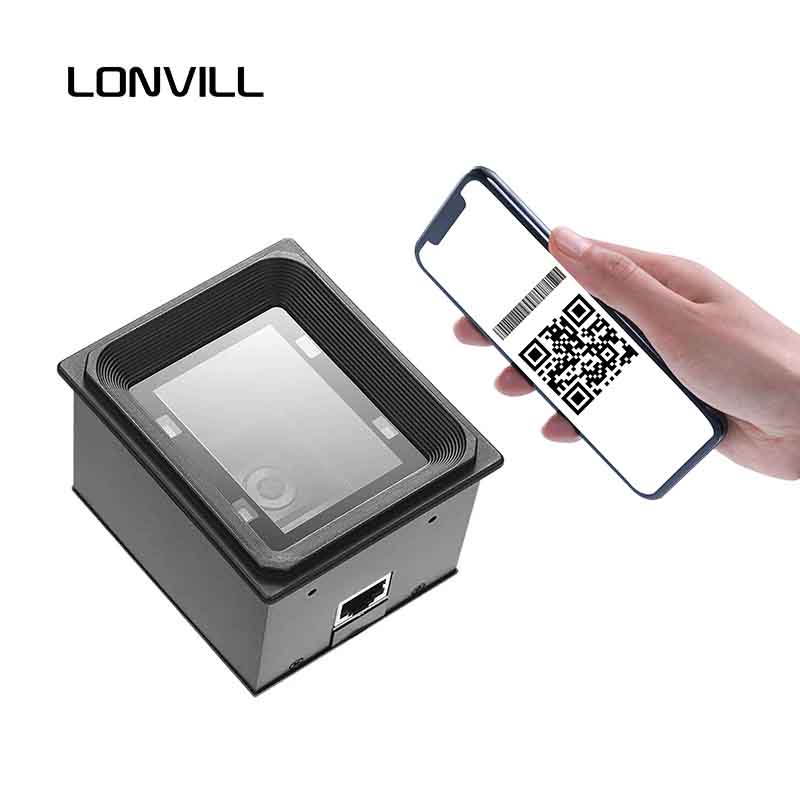

M0103 2,2 м/с модуль сканера USB
The scanning speed of M0103 is as high as 2.2m/s. Its advanced optical system can capture 1D/2D barcodes. Seamless integration is ensured through a multi interface architecture that supports USB (HID/CDC), serial (TTL/RS232/RS485), and Wiegand protocols. Zero configuration deployment eliminates driver dependencies and enables real-time debugging across different hardware ecosystems. The compact design makes it easy to embed applications with limited space, from self-service kiosks to medical diagnostic devices.
-
Image sensor: 960*640 Пособия
-
Motion tolerancer: 2.2 м / раздел
-
Symbol Contrastr: 35%
-
Environmental Sealingr: IP54
-
Working Temperaturer: -20-55℃
-
Conserve Temperaturer: -20-60℃
-
Operating Voltager: 5V-20V
-
Net Weightr: 163глин
-

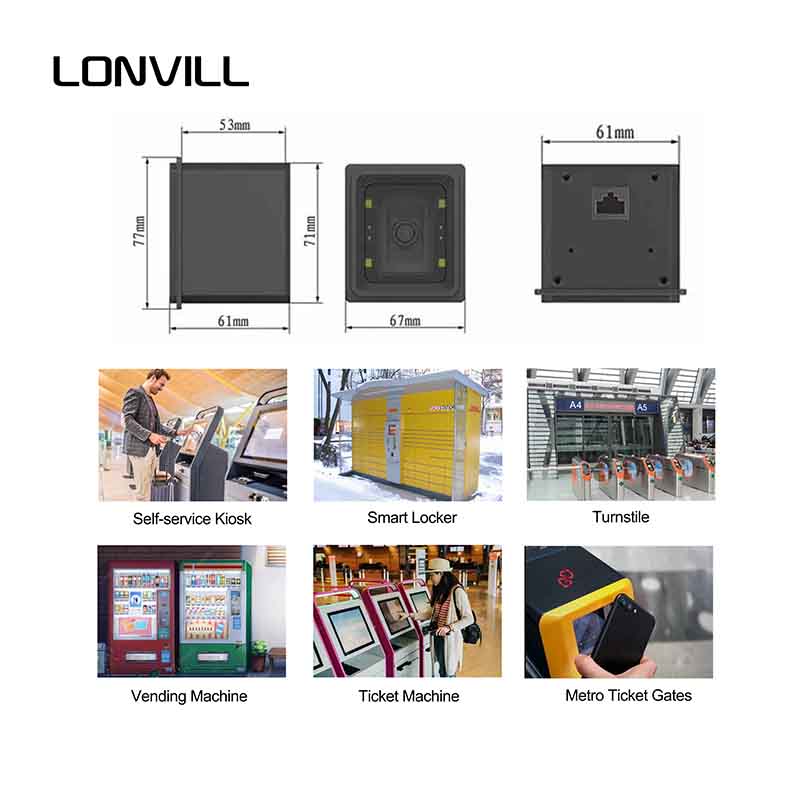

Host Size(L*W*H)r: 76.70mm* 66.62mm*64.73mm
-
Communication Interfacer: USB（Free drive）/Serial port（TTL, RS232,RS485）/Wiegand
Функции
Unmatched environmental adaptability features
Low-glare optics preventing operator eye strain during extended operations
ABS-armored housing surviving 2m concrete drops
Oxidation-resistant window ensuring longevity in high-humidity environments
Optional communication modules (NFC/WiFi/Bluetooth/4G) future-proof installations, while customizable audio-visual feedback enhances user experience.
Critical differentiators
Industrial resilience – Scratch-proof lens coating and IP54-rated sealing (optional)
Global compliance – Multilingual support (EN/FR/DE/KR/ES) with locale-specific symbology presets
Adaptive sensing – Auto-trigger technology reduces mechanical wear

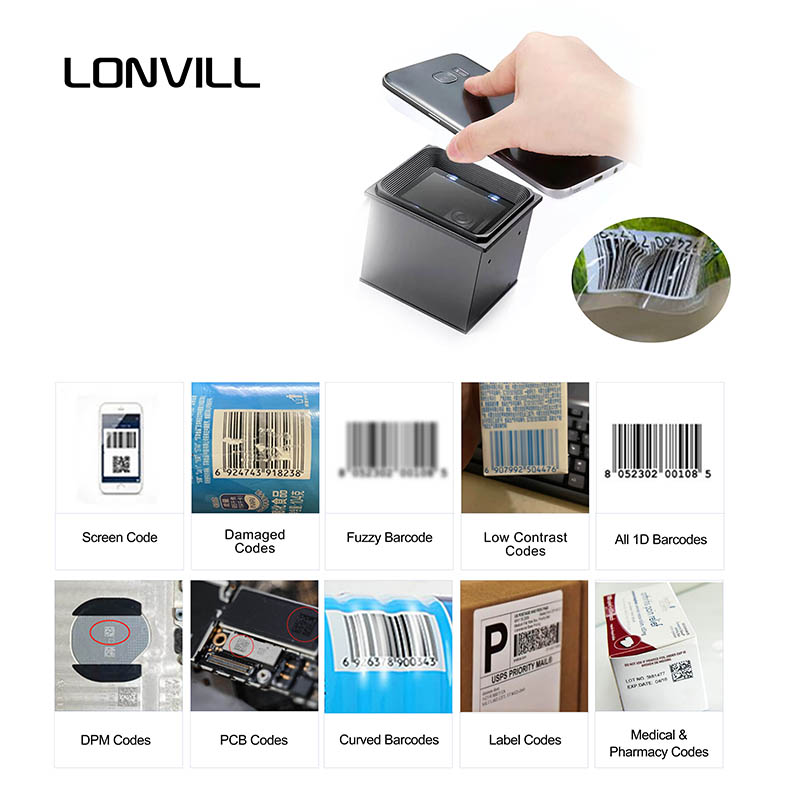

Proven in demanding vertical applications
Transportation : Reads distorted QR codes on moving parcels in logistics hubs
Healthcare : Scans medication barcodes under UV sterilization lighting
Retail : Processes reflective foil labels at self-checkout stations
Промышленное : Decodes greasy DPM codes on automotive assembly lines.
Спецификации
| Image sensor | 960*640 Пособия |
| Симбологии: | 1Дюймовый: EAN-8、EAN-13、EAN-13 2 добавить、 EAN-13 5 добавить、ISSN、ISBN、UPC-A、UPC-E、Код 39、Код 93、Код 128、Кодабар、Промышленное 2 из 5、Чередовано 2 из 5、Матрица 2 из 5、 Стандартный 25、GS1 DataBar（RSS14）、 GS1 Databar Limited、GS1 Databar расширен、 ISBT-128、GS1-128、code39FULLASCII、Плесси、MSI plessey 2Дюймовый:PDF417、Micro PDF417、QRcode、MicroQR、Datamatrix |
| Глубина поле | UPC-13mil 1cm-14cm Screen 1D 4cm-17cm Screen 2D 5cm-30cm |
| Motion tolerance | 2.2 м / раздел |
| Символ контраст | 35% |
| Scanning Angle | Горизонтальный : 60° Vertical：70° Rotated:360° |
| Environmental Sealing | IP54 |
| Working Temperature | -20-55℃ |
| Conserve Temperature | -20-60℃ |
| Net Weight | 163глин |
| Host Size(L*W*H) | 76.70mm* 66.62mm*64.73mm |
| Communication Interface | USB（Free drive）、Serial port（TTL, RS232,RS485）, Виганд |
| Рабочее напряжение | 5V-20V |
| USB -интерфейс Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
| Интерфейс серийного порта Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
