M0103 2.2m/s USB Scanner module
The scanning speed of M0103 is as high as 2.2m/s. Its advanced optical system can capture 1D/2D barcodes. Seamless integration is ensured through a multi interface architecture that supports USB (HID/CDC), serial (TTL/RS232/RS485), and Wiegand protocols. Zero configuration deployment eliminates driver dependencies and enables real-time debugging across different hardware ecosystems. The compact design makes it easy to embed applications with limited space, from self-service kiosks to medical diagnostic devices.
-
Image sensor: 960*640 Coms
-
Motion tolerancer: 2.2 m / sec
-
Symbol Contrastr: 35%
-
Environmental Sealingr: IP54
-
Working Temperaturer: -20-55℃
-
Conserve Temperaturer: -20-60℃
-
Operating Voltager: 5V-20V
-
Net Weightr: 163g
-

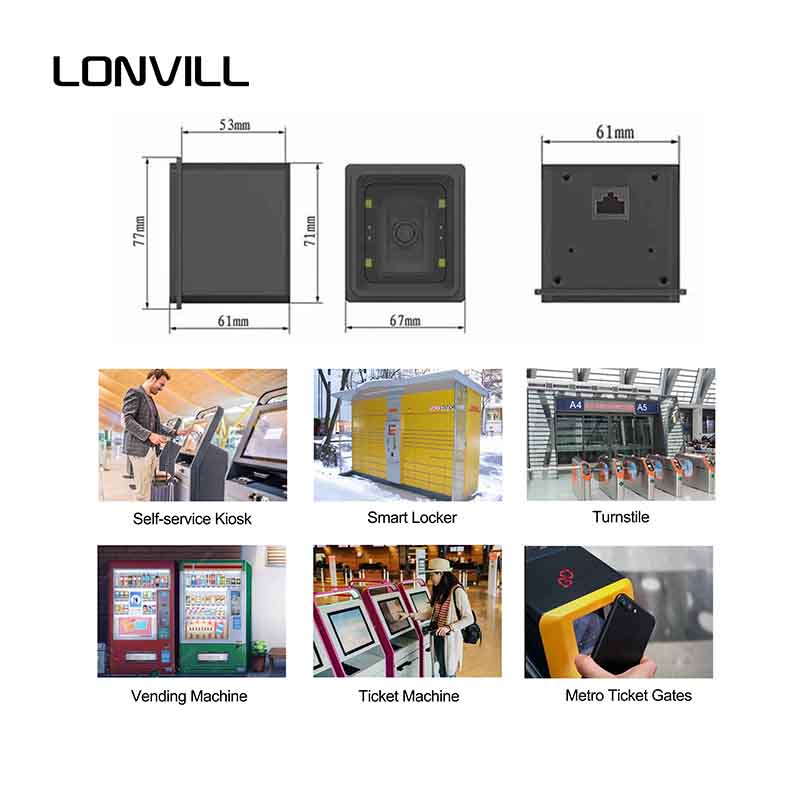

Host Size(L*W*H)r: 76.70mm* 66.62mm*64.73mm
-
Communication Interfacer: USB（Free drive）/Serial port（TTL, RS232,RS485）/Wiegand
Características
Unmatched environmental adaptability features
Low-glare optics preventing operator eye strain during extended operations
ABS-armored housing surviving 2m concrete drops
Oxidation-resistant window ensuring longevity in high-humidity environments
Optional communication modules (NFC/WiFi/Bluetooth/4G) future-proof installations, while customizable audio-visual feedback enhances user experience.
Critical differentiators
Industrial resilience – Scratch-proof lens coating and IP54-rated sealing (optional)
Global compliance – Multilingual support (EN/FR/DE/KR/ES) with locale-specific symbology presets
Adaptive sensing – Auto-trigger technology reduces mechanical wear
Proven in demanding vertical applications
Transportation : Reads distorted QR codes on moving parcels in logistics hubs
Healthcare : Scans medication barcodes under UV sterilization lighting
Retail : Processes reflective foil labels at self-checkout stations
Industrial : Decodes greasy DPM codes on automotive assembly lines.
Especificações
| Image sensor | 960*640 Coms |
| Simbologias: | 1D: EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-e、Código 39、Código 93、Código 128、Codabar、Industrial 2 de 5、Intercalado 2 de 5、Matriz 2 de 5、 Padrão 25、GS1 DataBar（RSS14）、 GS1 DataBar Limited、GS1 DataBar Expanded、 ISBT-128、GS1-128、code39FULLASCII、Plessey、MSI plessey 2D:PDF417、Micro PDF417、QRcode、MicroQR、Datamatrix |
| Profundidade de campo | UPC-13mil 1cm-14cm Screen 1D 4cm-17cm Screen 2D 5cm-30cm |
| Motion tolerance | 2.2 m / sec |
| Contraste do símbolo | 35% |
| Scanning Angle | Horizontal : 60° Vertical：70° Rotated:360° |
| Environmental Sealing | IP54 |
| Working Temperature | -20-55℃ |
| Conserve Temperature | -20-60℃ |
| Net Weight | 163g |
| Host Size(L*W*H) | 76.70mm* 66.62mm*64.73mm |
| Communication Interface | USB（Free drive）、Serial port（TTL, RS232,RS485）, Wiegand |
| Tensão operacional | 5V-20V |
| USB interface Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
| Serial port interface Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
