CR08 Access Control Card Readers

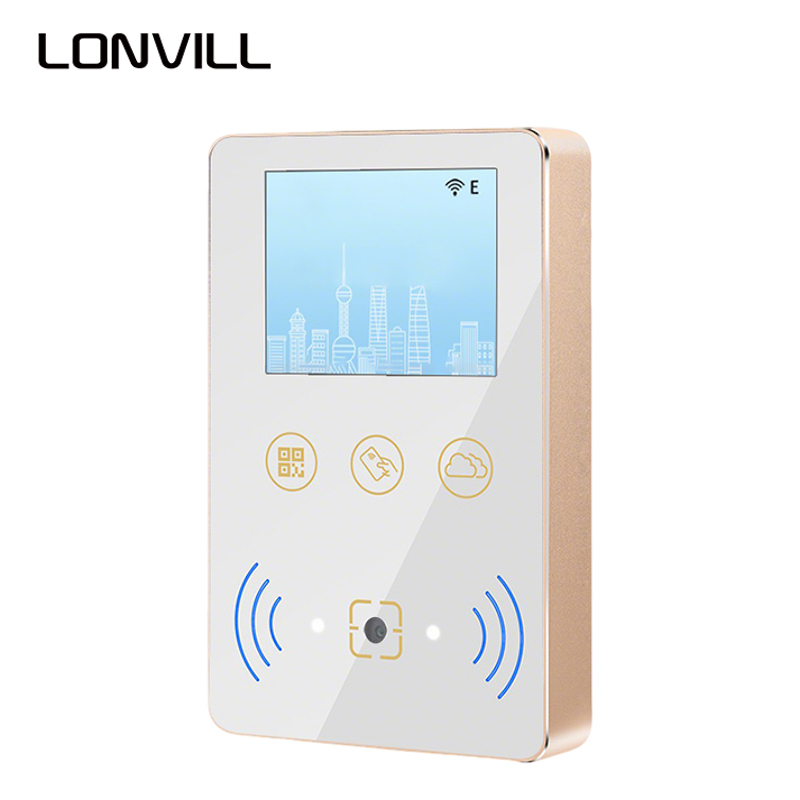

CR08 series QR code cloud access control integrated machine features a panel made of high-quality 9H tempered glass, which has excellent scratch resistance, is waterproof and dustproof, has a wide scanning field of view, operates quickly, has a high recognition rate, and is highly compatible. It can be connected to wired Ethernet, WIFI, and supports HTTP/HTTPS, MQTT network protocols. It is equipped with an audio amplifier, allowing for customizable voice announcements. It has a 2-inch IPS screen and can be customized for the display interface.
-
Size: 108.8*69*15mm
-
Velocidade de reconhecimento: <200 EM
-
Reading Distance: 5-20cm
-
Communication Protocol: http、https、MQTT
-
Display: 2.0-inch IPS screen, resolution 320*240
-
Material: Aluminum alloy + Tempered glass
Características
Durable and Intelligent Access Control Reader
CR08 access control card readers are designed for smart entry systems. The front panel uses 9H tempered glass, offering superior scratch resistance and durability. Its IPX7 waterproof rating makes it suitable for both indoor and outdoor environments. It performs consistently in rain, pó, and freezing conditions. This ensures long-term reliability in demanding settings.
Versatile Identification Methods
The CR08 reader supports multiple recognition modes. Users can scan QR codes, swipe IC or CPU cards, use Bluetooth credentials, or present secure ID cards. The device blocks cloned and NFC-emulated cards to enhance security. It completes recognition in 0.2 seconds from any angle or lighting condition.
Multi-Platform Network Support
CR08 readers offer flexible connectivity options. It supports Ethernet, RS485, and WIFI connections. Built-in protocol compatibility includes HTTP, HTTPS, and MQTT. You can integrate the reader into cloud-based or local networks easily. The device outputs directly to access control systems via TCP/IP, ensuring smooth system integration.
Smart Operation with Offline Storage
The reader operates in three flexible modes: online-priority with offline backup, offline-only, and offline-priority with online support. It stores up to 100,000 user profiles and access records offline. Even when disconnected, it continues functioning and supports offline QR codes with usage and time limits.
Customizable Interface and Audio
A 2-inch IPS color screen displays clear UI prompts. You can customize the display interface for different user groups or branding needs. Built-in audio amplification allows for custom voice alerts, improving the user experience. The device supports SDKs and secondary development protocols for deeper system integration.
Broad Application Scenarios

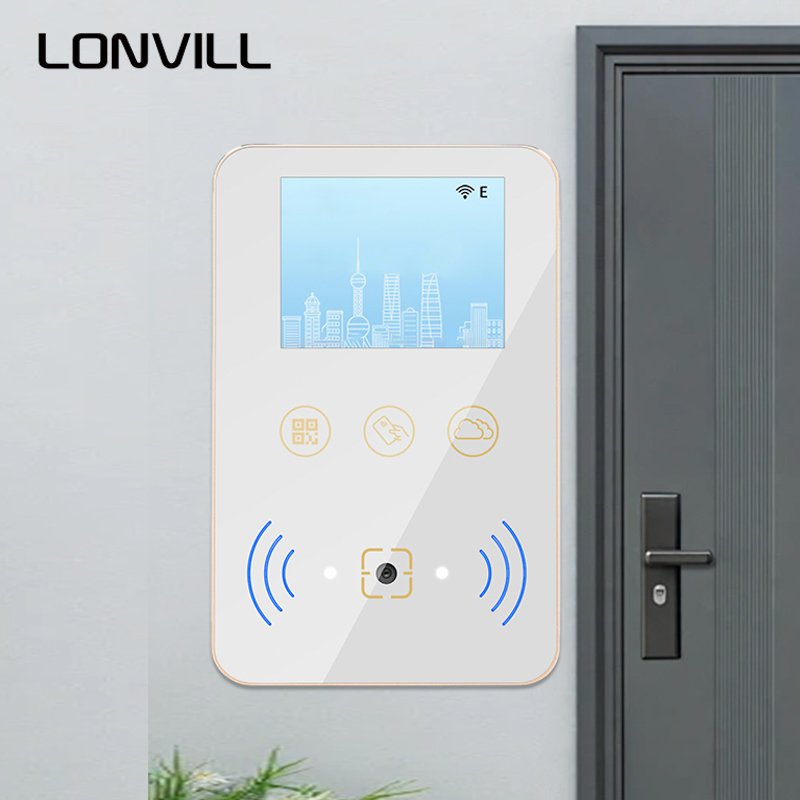

CR08 access control card readers are ideal for secure environments. Common applications include turnstiles, office buildings, apartment complexes, public venues, and co-working spaces. The fast scanning and wide-angle detection improve access speed and reduce wait times during peak hours.
Especificações
| Nome | QR Code Cloud Access Control Integrated Machine | ||
| Model | CR08EUP | CR08EUPW | CR08EUP-B |
| Networking Method | Wired Ethernet | Wired Ethernet/WIFI (2.4G) | Wired Ethernet |
| Identification Method | QR Code/IC Card/ID Card | QR Code/IC Card/ID Card | QR Code/IC Card/ID Card/Bluetooth |
| WIFI Protocol | / | 802.11b/g/n | / |
| WIFI&RF认证 | / | FCC/CE-RED/SRRC | / |
| Bluetooth Protocol | / | / | Bluetooth Specification 4.0 BLE |
| Output Mode | Relay Signal | ||
| Main Control Sensor | XBurst® 800MHz | ||
| Operating System | Embedded Linux | ||
| Storage Capacity | Number of offline users (QR code 100,000, IC card 100,000), number of offline records 100,000 | ||
| Tamper alarm | / | ||
| Storage Memory | 128M Flash | ||
| Communication Protocol | http、https、MQTT | ||

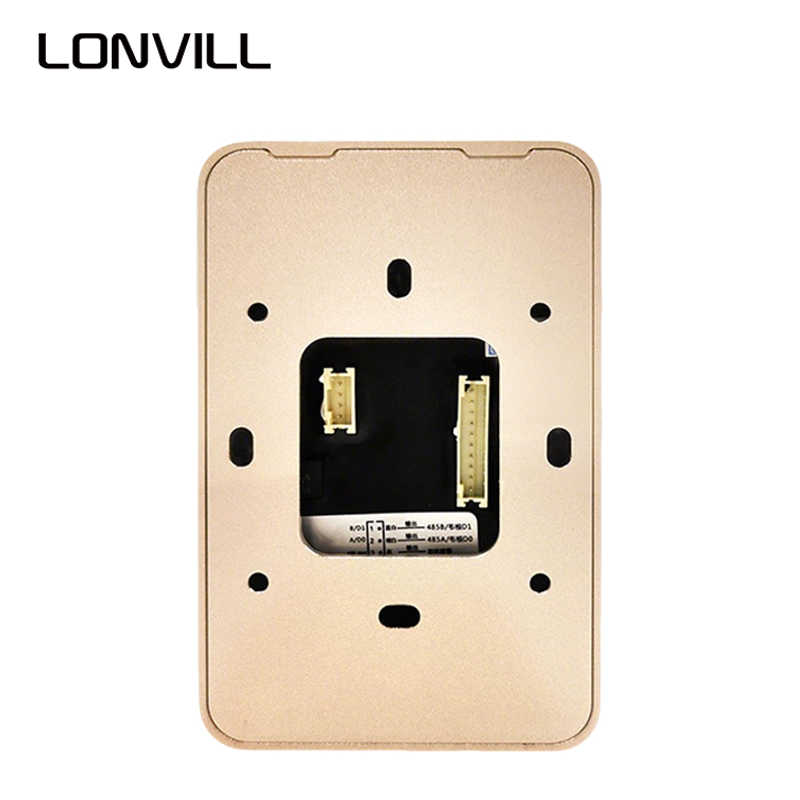

| Input and Output | Two inputs (for connecting buttons to open doors and door sensors); | ||
| One relay output (can be used to control electric locks, gates, etc.) | |||
| Extended Communication Interface | Wiegand output or 485 output (optional, choose one, default Wiegand output) | ||
| Display | 2.0-inch IPS screen, resolution 320*240 | ||

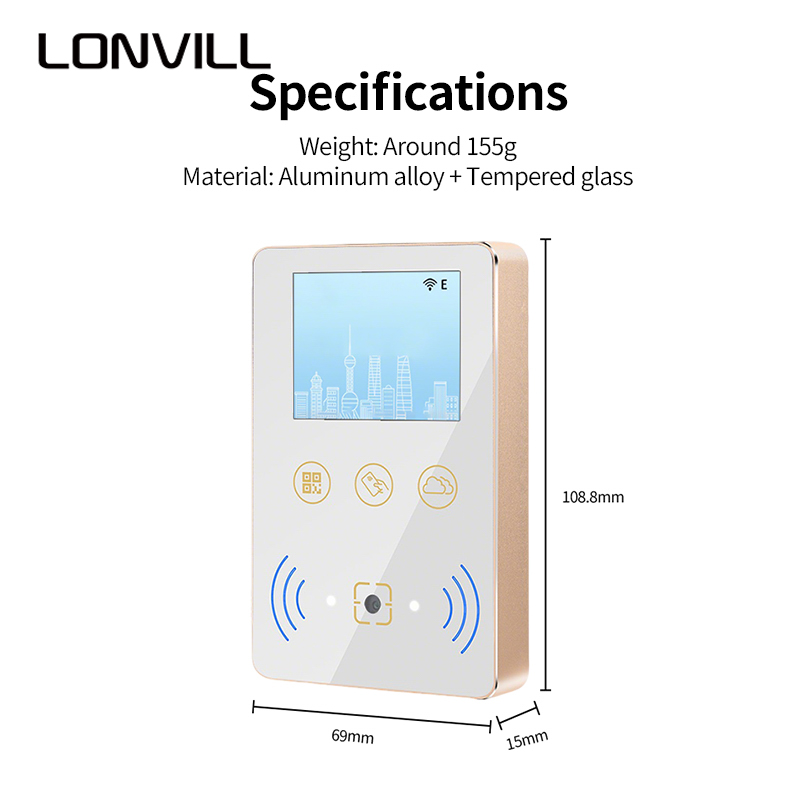

| Appearance Size | 108.8*69*15mm | ||
| Material | Aluminum alloy + Tempered glass | ||
| Peso | Around 155g | ||
| QR Code Reading Type | Código QR, Matriz de dados, PDF417 | ||
| Types of 1D codes | EAN-8, EAN-13, UPC-A, UPC-e, Código 39, Código 93, Code 128,Code 128C, Ucc / s 128, Codabar, Intercalado 2 of 5,ITF-6, ITF-14, ISBN, Banco de dados GS1, GS1 Composite Code, | ||
| Matriz 2 of 5,Code 11, Industrial 25, Padrão 25, | |||
| Plessey, MSI-Plessey, etc.. | |||
| Reading Accuracy | ≥7mil | ||
| Velocidade de reconhecimento | <200 EM | ||
| Ângulo de leitura | Rotation: 360°, elevation: ± 55°, declination: ± 55° | ||
| Ângulo de varredura | 72° (horizontal), 54° (vertical), 84° (diagonal) | ||
| Reading Distance | 5-20cm | ||
| QR Code Support Range | 1024 Characters | ||
| Supported Card Reader Types | Support ISO1443A/ISO1443B protocol cards | ||
| Working Frequency | 13.56MHz | ||
| IC Card Reading Sector | Support IC card reading sector | ||
| CPU Card Reading File (Optional) | Support CPU card reading files | ||
| Card Reading Distance | IC card: ＜3cm ID card: ＜ 1cm | ||
| Working Voltage | DC 6V~25V | ||
| Working Current | 200MA (12V power supply) | ||
| Standby Current | 150MA (12V power supply) | ||
| Audio Amplifier | 8Ω: 1C; 4Ω: 3C | ||
| Relay Load Capacity | 1A Current | ||
| Waterproof Level | IPX7 | ||
| Static Electricity Level | Air discharge ±8KV, contact discharge ±6KV (power supply must be effectively grounded) | ||
| Working Temperature | -20° C ~ 60 ° C. | ||
| Temperatura de armazenamento | -40°~80°C | ||
| Relative Humidity | 95% (Non-condensing) | ||
| Ambient Lighting | Noon sun, night light | ||
