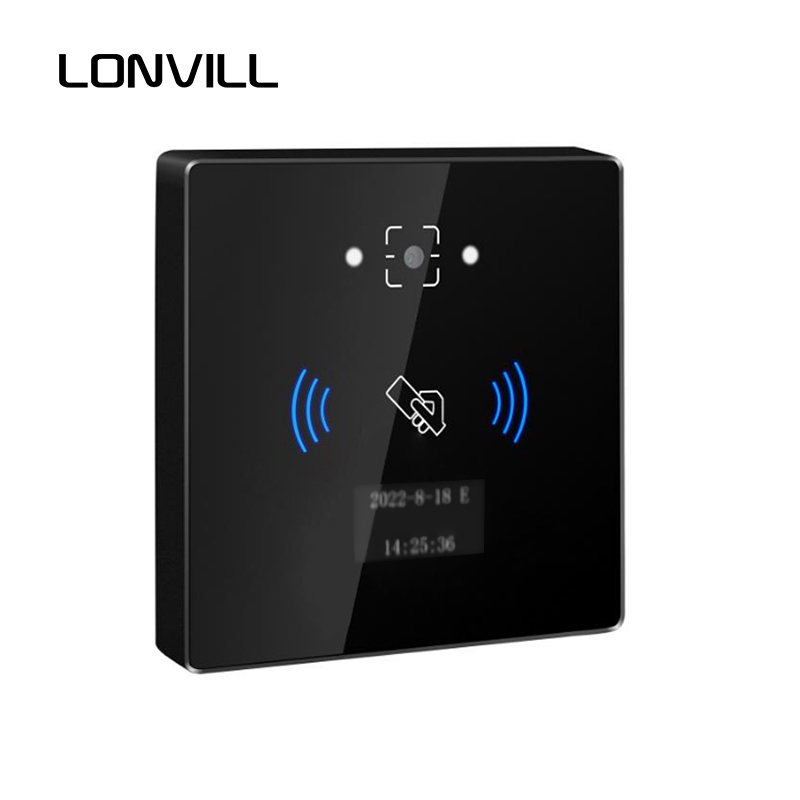

Leitor de controle de acesso à nuvem CR06
A máquina integrada de controle integrado de controle de acesso à nuvem de código QR CR06 adota o método de comunicação TCP/IP, apoia redes Ethernet e Wi -Fi, fornece APIs simples e amigáveis, e pode ser conectado a todos os sistemas de terceiros; Pode verificar os códigos QR dinâmicos offline. É amplamente utilizado no acesso ao visitante para edifícios de escritórios comerciais, áreas cênicas, e comunidades, etc.; A máquina integrada de controle de acesso à nuvem pode reconhecer códigos unidimensionais, Códigos QR, Cartões de IC, Cartões da CPU, Cartões de identificação de segunda geração, Bluetooth, e também suporta a entrada do teclado de senha.
-
Peso: 200g
-
Precisão: ≥7mil
-
Distância de reconhecimento: 5-20cm
-
Monitor: Monitor OLED de 0,96 polegadas
-
Material: ABS+vidro temperado
-
Dimensões externas: 86*86*16.5mm
-
Sistema operacional: Linux incorporado
-
Método de identificação: Código QR/cartão de IC/ID
-
Protocolos de comunicação: http, https, Mqtt
Características
Smart Cloud Access with Multi-Mode Authentication
The CR06 cloud access control reader supports QR code, IC card, CPU card, Bluetooth, and password verification. It allows seamless identity management across offices, residential communities, and public venues. You can switch between online and offline modes, ensuring continuous operation even when the network disconnects. Dynamic QR codes can be verified in offline environments to prevent service interruptions.
Seamless Connectivity and Communication
This reader offers both Ethernet and WiFi networking with TCP/IP communication. It supports HTTP/HTTPS and MQTT protocols for flexible integration. Use our open API to connect third-party systems with ease. The built-in relay output, tamper alarm, exit button, and door magnet simplify hardware integration.
Efficient and Intuitive User Interface
A 0.96-inch OLED screen provides real-time device status. The QR code reading area works within 5–20cm, adapting to different code sizes. Users can view instant feedback when scanning cards or QR codes. Optional voice output enhances interaction, especially in public or high-traffic areas.

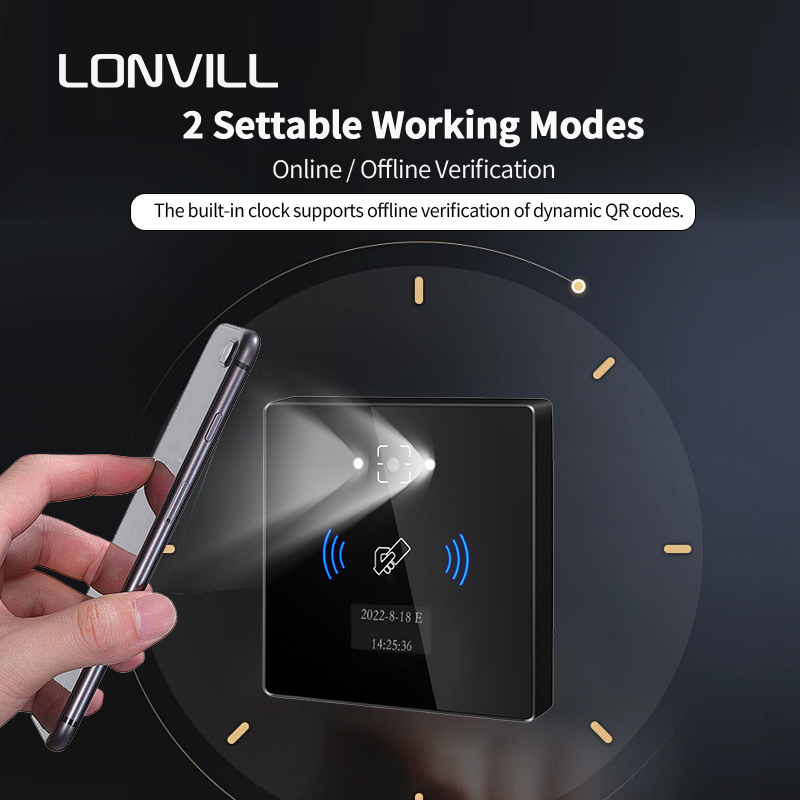

Offline Mode for Reliable Access
The CR06 cloud access control reader stores up to 100,000 whitelist users and logs 100,000 card swipe records. In [Online Priority + Offline Backup] modo, it automatically selects the verification method based on network status. [Offline Only] mode ensures functionality in isolated environments. These modes meet the needs of businesses with varying network infrastructures.
Quick and Easy Configuration
You can configure the device by scanning a setup QR code. The configuration tool generates code based on your parameters, enabling fast deployment. This user-friendly setup process reduces maintenance time and training costs.
Industrial-Grade Components and Stability
The reader uses a high-performance domestic CPU and runs on a Linux system. Its independent reset chip ensures reliable performance. Optional Bluetooth connectivity and built-in infrared tamper alarm provide additional flexibility and security.
Suitable for Complex Access Scenarios
CR06 cloud access control readers are ideal for offices, schools, áreas cênicas, gated communities, e mais. They support secure access for employees, residents, and visitors. You can expand the system easily as your needs grow.
Especificações
| Sistema operacional | Linux incorporado |
| Output | Relay signal |
| Networking method | Ethernet |
| Main control chip | x1021 chip（XBurst® 800MHz） |
| WI-FI(2.4G) Bluetooth(4.0 BLE) | Opcional |
| Método de identificação | Código QR/cartão de IC/ID |
| Storage capacity | Number of offline users (100,000 Códigos QR, 100,000 Cartões de IC),100,000 offline records |
| Storage memory | 128M Flash |
| Protocolos de comunicação | http, https, Mqtt |
| Input & Output | Two inputs (for connecting buttons to open the door and door sensors); one infrared anti-tamper alarm sensor output;One relay |
| output (can be used to control electric locks, portões, etc.) | |
| Anti-tamper alarm(optional) | Support local alarm and signal output, which can be transmitted to the background in real time |
| Extended communication interface | Wiegand output or 485 output (optional, choose one, default Wiegand output) |
| Monitor | Monitor OLED de 0,96 polegadas |
| Dimensões externas | 86*86*16.5mm |
| Material | ABS+vidro temperado |
| Peso | 200g |
| Simbologias | 2D: Código QR, Matriz de dados, PDF417，Hanxin code |
| 1D: EAN-8, EAN-13, UPC-A, UPC-e, Código 39, Código 93, Code 128,Code 128C, Ucc / s 128, Codabar, Intercalado 2 of 5,ITF-6,ITF-14, | |
| ISBN, Banco de dados GS1, GS1 Composite Code, Matriz 2 of 5,Code 11, Industrial 25, Padrão 25, Plessey, MSI Plessey | |
| Precisão* | ≥7mil |
| Velocidade | <200 milliseconds |
| Ângulo de varredura ** | Roll 士360°, Skew 士55°, Pitch 士55° |
| Campo de visão | Diagonal 84°, horizontal 72°, vertical 54° |
| Distância de reconhecimento | 5-20cm |
| QR code support range | 1024 characters |
| Card types | Support ISO1443A/ISO1443B protocol card |
| Working frequency | 13.56MHz |
| IC card reading sector | supports IC card reading sector |
| CPU card reading text parts (optional) | Support CPU card to read files |
| Distância de leitura | IC card: less than 5CM; ID card: less than 3CM |
| ID card (optional) | supports 125K EM card |
| Tensão operacional | DC 6V~25V |
| Current Operating | 180MA (12V supply) |
| Current Standby | 120MA (12V supply) |
| Audio amplifier (optional) | 8 ohms: 1C; 4 ohms: 3C |
| Relay load capacity | 1A current |
| Waterproof level | IPX7 |
| electrostatic rating | Air discharge ±12KV, Contact discharge ±6KV (power supply must be effectively grounded) |
| Temperatura operacional. | -20°C~+60°C |
| Temperatura de armazenamento. | -40°C~+80°C |
| Temperatura operacional. | -10°C~+60°C |
| Temperatura de armazenamento. | -40°C~+70°C |
| Umidade | 95% (não condensador) |
| Luz Ambiente | noon sunlight, low light source at night |
