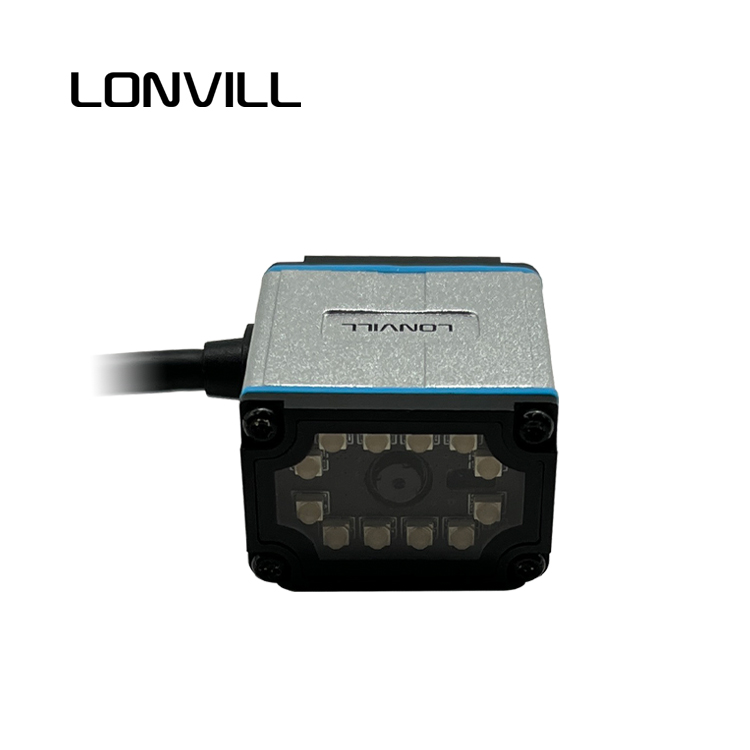

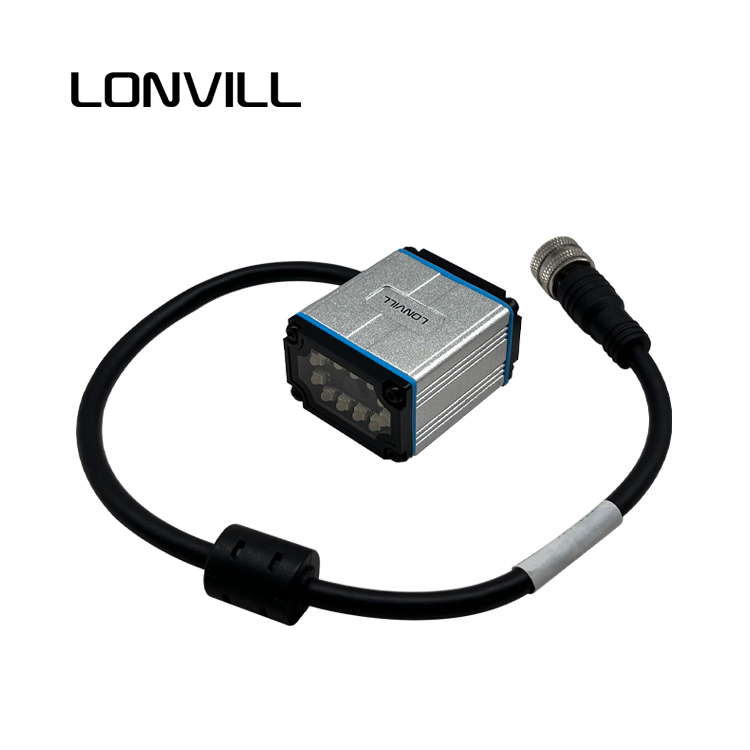

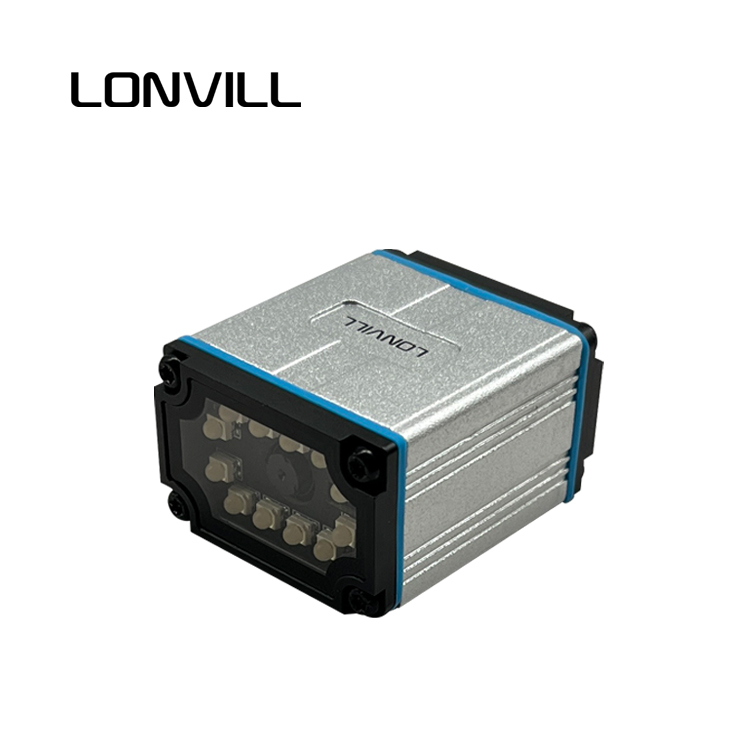

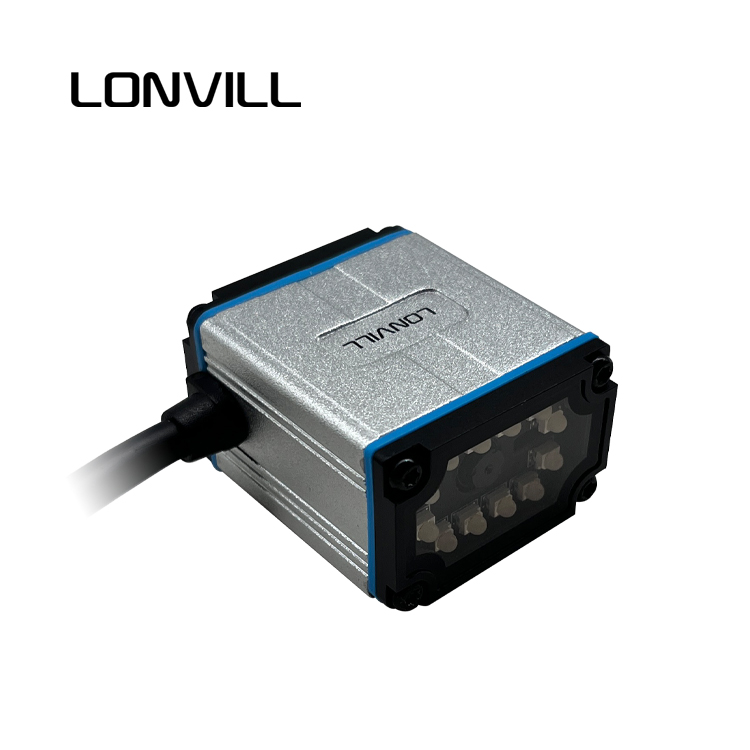

Scanner de código A65-HD para classificador logístico
A65-HD industrial solid scanning is equipped with a 1280 × 800 high-definition image sensor, integrated with 12 zone controllable LED light source, suitable for scanning reflective curved materials, combined with intelligent image correction technology, can reconstruct damaged and low contrast barcodes, and can decode at 2m/s high-speed without pressure. Aluminum alloy shell+IP65 protection, resistant to dust, oil, and vibration impact; Supporting flexible and compatible interfaces with automation devices, A65-HD has become an ideal visual solution in the fields of intelligent manufacturing, automated testing, and self-service terminals due to its high-definition imaging, dynamic decoding, and industrial robustness.
-
Pixel: 1280 (H) * 800 (V) Coms
-
Grau de proteção: IP65
-
Field of view Angle Horizontal 46° (H), vertical 29 ° (V)
-
Dimensões: 36(C)*38(D)*24(H)(mm)
-
Peso: ≈85g (excluindo cabos)
-
Modo rápido: Caminhante, Luz indicadora de LED
-
Atual em espera: 100 ma ± 5%
-
Tensão de trabalho: CC 5V a 24V ± 5% (conectado à caixa de controle de E/S)
-
Atualização de trabalho: 300 ma ± 5% (valor típico), 450 ma ± 5% (valor máximo)
Características
High-Speed Decoding for Logistics & Automation
The A65-HD code scanner delivers high-speed decoding for complex logistics and automation systems. It integrates a 1280×800 HD image sensor to capture fine barcode details accurately. This sensor supports high-resolution imaging in dynamic working environments.
Precision Imaging with Adaptive Lighting
With 12-zone adjustable LED lighting, the scanner adapts to various reflective or curved materials. It decodes damaged or low-contrast codes with stability. Intelligent image rectification enhances accuracy under difficult conditions. The scanner processes codes at speeds up to 2 metros por segundo, ensuring reliable data acquisition during fast-moving operations.
Durabilidade industrial & IP65 Protection
Its aluminum alloy housing provides industrial-grade durability. The IP65 sealing protects against dust, oil, and vibration, allowing consistent performance in harsh environments.
Flexible Connectivity for Seamless Integration
A65-HD supports USB, RS232, and Ethernet interfaces. Users can choose a direct cable connection or an optional IO box. This makes it highly compatible with automated control systems across industries.
Customizable LED Zones for Application Flexibility
The flexible lighting configuration includes top, bottom, left, and right LED arrays. Operators can switch individual zones based on application needs. The built-in intelligent engine adjusts exposure dynamically, ensuring precise scans even on reflective surfaces.
Versatile Deployment Across Industries
Whether used in assembly lines or CNC stations, the scanner adapts seamlessly. It integrates into mobile device production lines, self-service kiosks, or PV module synchronization systems. Its robust construction and compact form enable easy OEM integration.
Reliable Performance for OEM & Medical Applications
Medical device makers and testing equipment manufacturers trust its reliability. This scanner supports real-time data exchange for traceability and performance analysis. You can count on it to reduce scan errors and improve operational efficiency.
Engineered for Demanding Environments
Its consistent decoding makes it ideal for critical industrial applications. From high-speed tracking to secure label verification, A65-HD delivers stable performance across varied use cases.
Quality Assurance from a Trusted Manufacturer
Lonvill’s strict quality control ensures each unit meets industry compliance and passes endurance tests. Partner with us to upgrade your automation process with intelligent, high-speed scanning.
Especificações
| Pixel | 1280 (H) * 800 (V) |
| Iluminação | Fonte da luz vermelha |
| Foco | LED de mira verde |
| Modo de leitura | Modo de chave, Sensor automático, varredura contínua, Coragem de pulso |
| Sistema de código | 2D: Matriz de dados , Código QR , Micro qr，PDF417, Micro pdf417 maxicode， asteca |
| 1D: UPC a , UPC e , Ean 8 , Ean 13 , Código 128 , Código 39 , Código 93 ,Código 32 , Código11 , Codabar ,Plessey , Msi , Intercalado 2 de 5 ,IATA 2 de 5 , Matriz 2 de 5 , Direto 2 de 5 , Farmacode , RSS-14 ,RSS-14 expandido , RSS-14 Limitado , Código composto-a-a ,Código composto-b , Code-C composto | |
| Precisão da leitura | 1D: ≥3 mil ; 2D: ≥5 mil |
| Profundidade de campo | Código39(3mil) 50mm ~ 90mm |
| UPC-A (13mil) 30mm~165mm | |
| Código QR (7mil) 35mm ~ 120mm | |
| Matriz de dados (10mil) 40mm ~ 150mm | |
| Campo do ângulo | 46 ° horizontal (H), vertical 29 ° (V) |
| Imprimir contraste | ≥20% |
| dimensions | 36（W）×38（D）×24（H）(mm) |
| Peso | ≈85g (excluindo cabos) |
| Interface | RS-232 / USB (ESCONDIDO ; CDC)/RS-232 para porta de rede |
| Modo rápido | Caminhante, Luz indicadora de LED |
| Tensão de trabalho | CC 5V a 24V ± 5% (conectado à caixa de controle de E/S) |
| Atualização de trabalho | 300 ma ± 5% (valor típico), 450 ma ± 5% (valor máximo) |
| Atual em espera | 100 ma ± 5% |
| Saída externa | 2-Saída isolada de casal óptico de canal (Bom; “De” |
| Acionar o optocoupler de entrada | 1-Casal óptico de canal Entrada isolada (Npn/png/relé) |
| Temperatura de trabalho | -20℃ ~+50 ℃ |
| Temperatura de armazenamento | -40℃ ~+70 ℃ |
| Umidade relativa | 5% para 95% (sem condensação) |
| Proteção eletrostática | ± 20 kV (descarga de ar), ± 8 kV (descarga direta) |
| Altura de gota | 1.5M |
| Grau de proteção | IP65 |
| Certificação | FCC Part15 Classe B，CE，EMC Classe B. |
