The A30 Industrial Barcode Scanner offers compact, Design IP65 durável com um sensor de alta resolução e iluminação inteligente. Ele lê com precisão os códigos de baixo contraste e DPM, tornando -o ideal para eletrônicos, Automotivo, e aplicações de fabricação.

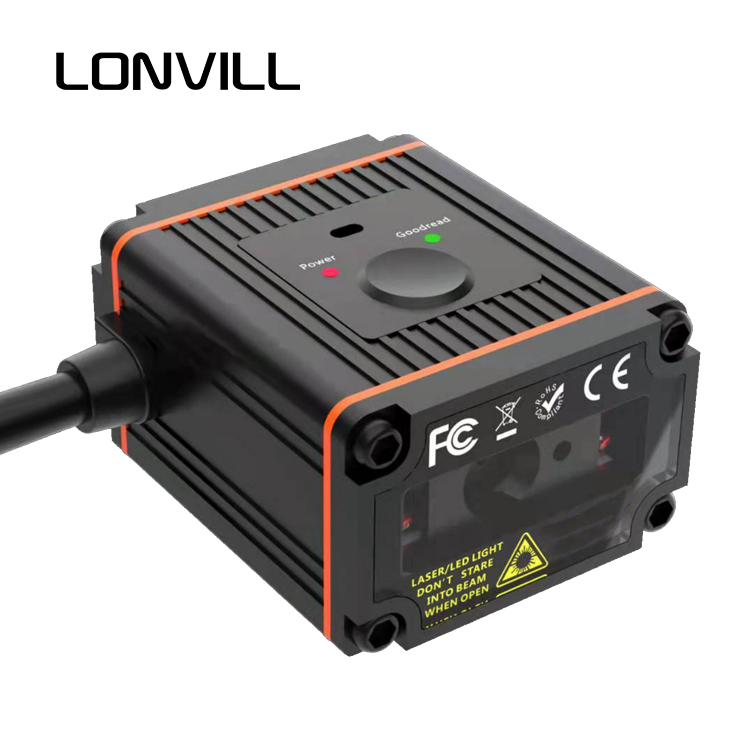

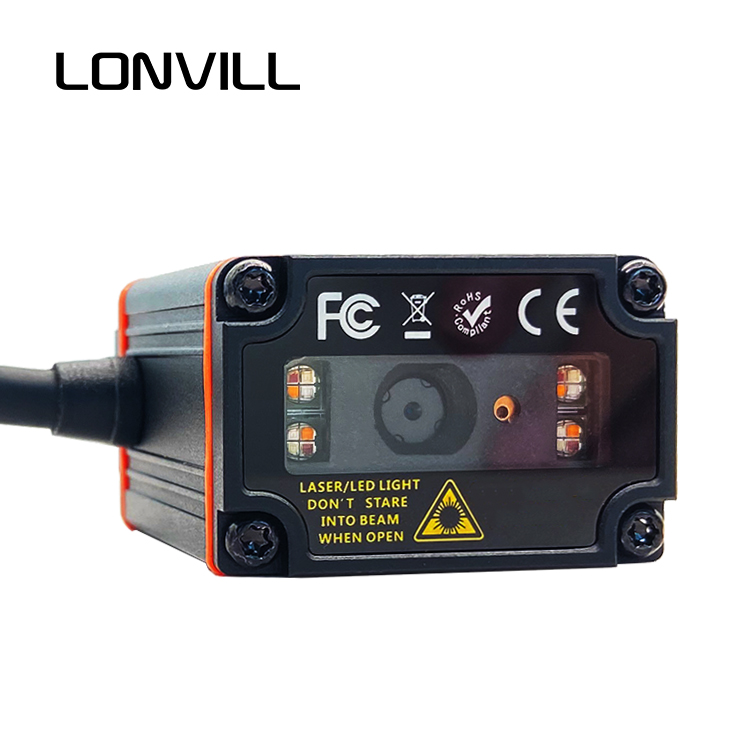

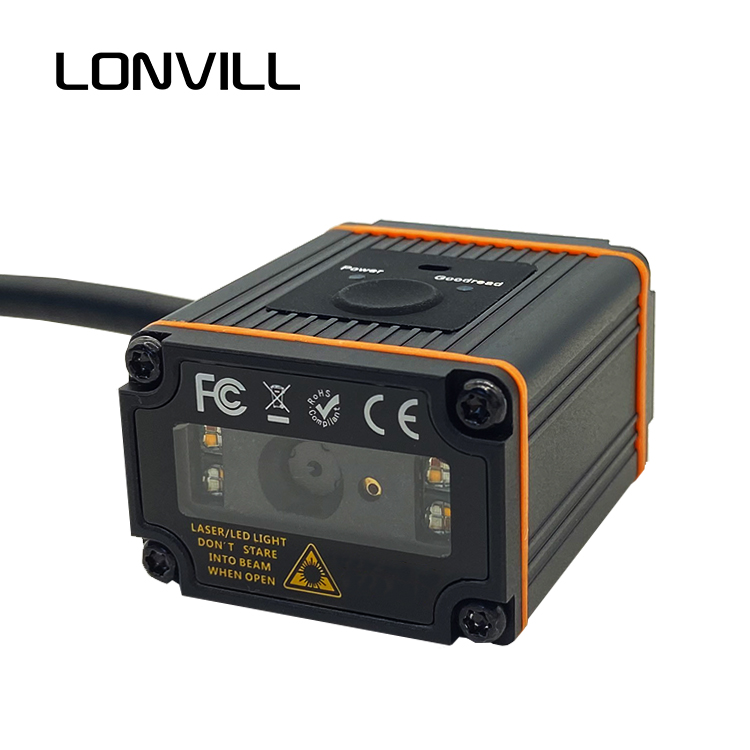

The A30 industrial barcode scanner from Lonvill is designed for demanding industrial environments that require both performance and durability. Its compact, space-saving design allows for easy integration into tight manufacturing lines or control systems without sacrificing efficiency. You can mount it anywhere thanks to its lightweight frame and intelligent layout.
Equipped with an intuitive configuration tool, the A30 helps you adjust parameters quickly during installation. No complex setup is required, making deployment smooth even for first-time users. This flexible setup streamlines your workflow and reduces downtime during device tuning.
To optimize readability, the scanner features adaptive white, red, and blue point LED lighting. These lighting options work intelligently to illuminate reflective, curvado, or low-contrast surfaces, ensuring accurate code capture even in poorly lit areas. Whether you’re scanning DPM codes or scratched barcodes, the system adjusts automatically to boost performance.
Durability is key in industrial environments. The A30’s rugged metal housing meets IP65 standards, offering solid protection from dust and low-pressure water. You can rely on it in automotive factories, armazéns, and electronics assembly lines where conditions are tough and reliability matters.
High-speed decoding performance is at the heart of this scanner. It processes data rapidly and accurately, even under difficult barcode conditions. It also supports multiple code formats, making it suitable for complex automation systems.
Real-time feedback is built-in. LED indicators and a buzzer clearly notify you of scanning status, reducing operational guesswork and helping operators stay informed at every stage.
From high-speed production lines to electronics manufacturing, the A30 scanner boosts efficiency, ensures scanning precision, and reduces error rates. It’s your reliable partner in building smart, connected, and automated industrial environments. Lonvill’s A30 combines size, speed, and smart features into one powerful industrial-grade solution.
Pixels | 1280 (H)*800 (V) |
iluminação | Fonte de luz branca/vermelha/azul |
Foco | Laser de ponto único |
Modo de varredura | Modo de botão, Modo de gatilho de comando serial |
Simbologias | 1D: |
UPCA,Upce,Ean8, ean13, code128, código 39, Código 93, código 32, Code11, Codabar,Plessey,Msi,Intercalado 2 de 5, aqui 2 de 5, GS1-128, GS1 | |
Banco de dados expandido,Databar GS1 14, GS1 Databar Limited,Farmacode,etc.. | |
2D: | |
Matriz de dados, Código QR, Micro qr, PDF417, Micro PDF417, Maxicode,asteca,etc.. | |
Resolução | 1D:≥3mil; 2D:≥7mil |
Profundidade de campo típica | Código39(3mil)50mm ~ 90mm |
EAN-13 (13mil)40mm ~ 200mm | |
Código39(5mil)50mm ~ 120mm | |
Código QR (7mil) 35mm ~ 120mm | |
Matriz de dados(10mil)40mm ~ 150mm | |
Campo de visão | 46 ° horizontal, Vertical 29 ° |
Contraste do símbolo | ≥20% |
Dimensões | 36(C)× 43 (D)× 24(H)(mm) |
Peso | Cerca de 100g (Incluindo 2M de cabo de dados) |
Interface | USB,RS-232, Porta com com COM virtual |
Método da dica | Caminhante, Indicador de LED |
Tensão operacional | DC5V ± 5% |
Atual@5VDC | 500 ma ± 5% (típico), 1000 ma ± 5%(máx) |
Atual em espera | 100 ma ± 5% |
Acionar o optocoupler de entrada | Máx. 15 MA (poder de entrada: 5V ~ 24V; baixo gatilho de potencial); 1 caminho |
Temperatura operacional | -20℃ ~+50 ℃ |
Temperatura de armazenamento | -40℃ a 70 ℃ (-40 ° F a 158 ° F) |
Umidade | 5% para 95% (não condensador) |
Proteção estática | ± 12 kV (descarga de ar), ± 8 kV (descarga direta) 1.5 m |
Nível de proteção contra altura de queda | IP65 |
Certificação Internacional | FCC Part15 Classe B, CE, EMC Classe B. |
Garantia | 1 Ano |
