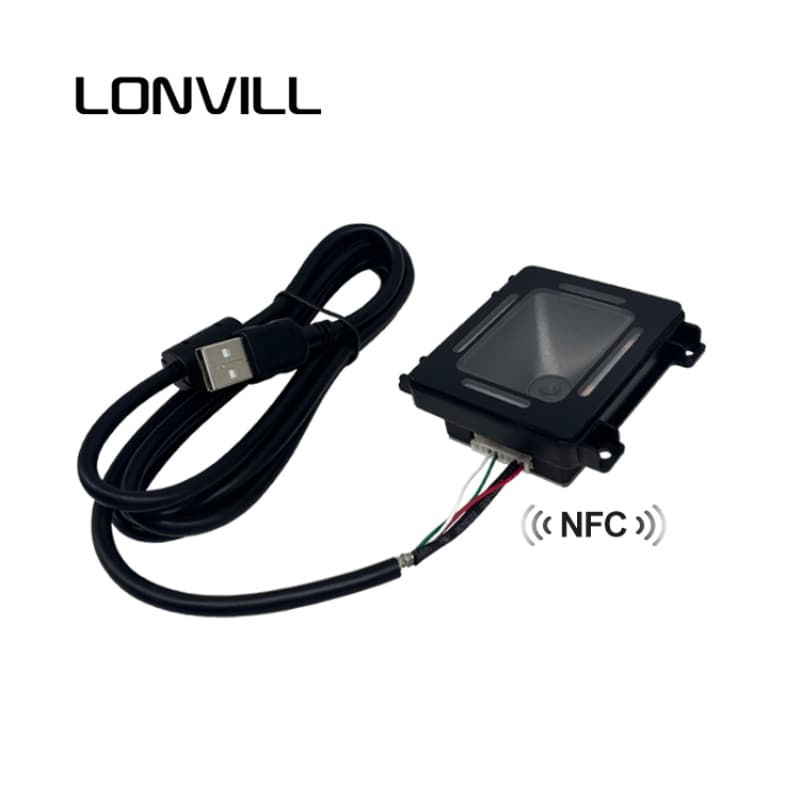

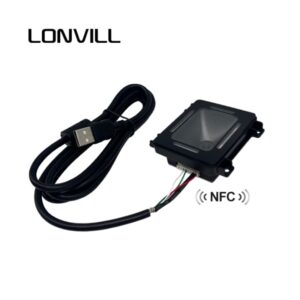

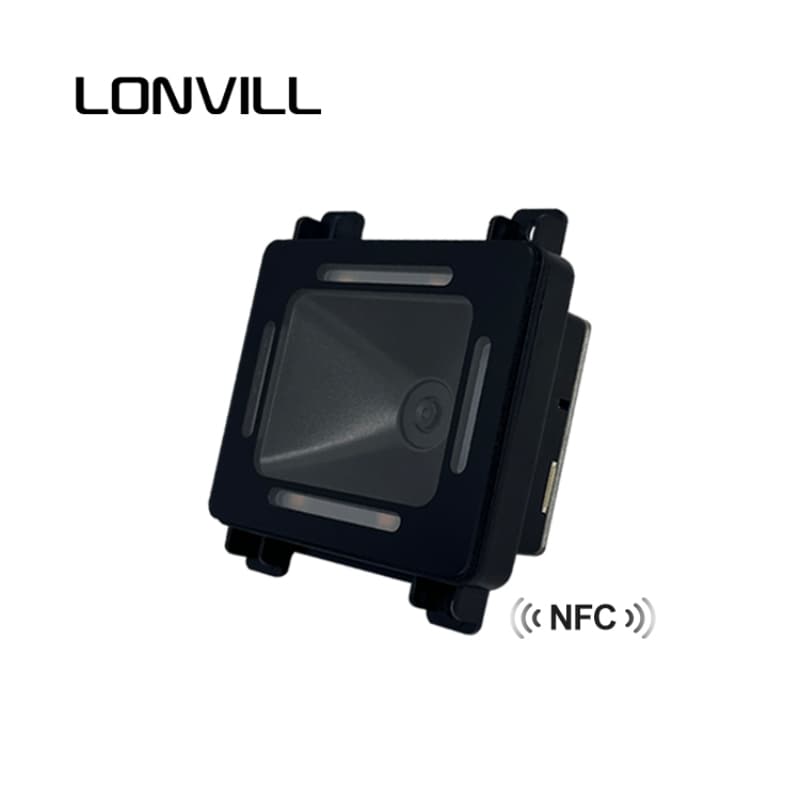

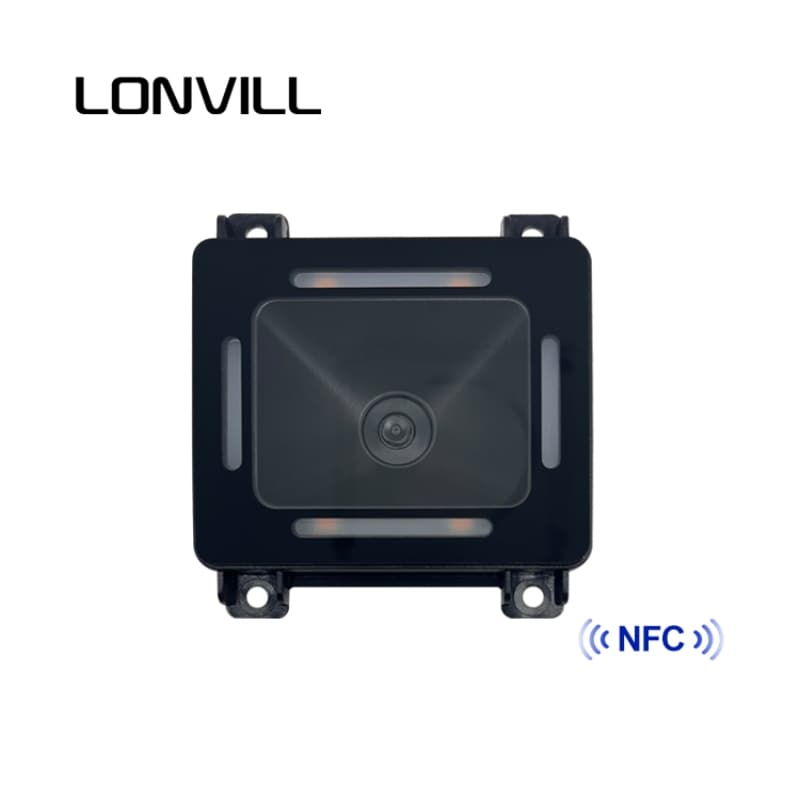

M0118 NFC Barcode Scanner Modules
The M0118 is a compact NFC barcode scanner with stable performance, supporting 25 NFC card types and a wide range of 1D/2D barcodes. With multiple interfaces and a glare-free LED, it’s ideal for integration into kiosks, access control, vending machines, and other self-service devices.
- Scanning Distance：0mm-100mm
- Decoding Speed：≥5mil
- Illumination：White LED
- Aiming：LED light
- Image Sensor：640×480 CMOS
- Dimensions：61(W) × 64.8(D) × 26(H) mm
Features
M0118 NFC Barcode Scanner Modules for Embedded Devices
The M0118 is Lonvill’s compact NFC barcode scanner module, engineered for seamless integration in self-service devices. Designed for performance and ease of use, it offers stable scanning of both NFC cards and 1D/2D barcodes. With multiple interface options and a soft, glare-free LED design, this module suits a wide range of applications, including kiosks, vending machines, ticketing terminals, and access control systems.
Stable NFC Reading with Broad Card Compatibility
The M0118 supports up to 25 different NFC card types, including Mifare and ISO14443A/B formats. You can rely on its high reading accuracy and low latency. Whether in public access systems or commercial applications, it reads cards smoothly and ensures consistent performance. This feature enhances both speed and security, making it ideal for environments where rapid authentication is crucial.
Glare-Free Lighting for Comfortable Scanning
The module features a soft LED lighting system, using a direct-view layout to eliminate harsh reflections. Users can view the scanning area clearly without discomfort. This improves usability and interaction, especially in retail or public terminals. Even in low-light conditions, users enjoy a reliable and friendly scanning experience.
Multiple Interfaces for Flexible Integration
You can choose from USB, RS232, RS485, TTL, or Wiegand interfaces to match your host system. This flexibility allows for fast deployment on various platforms without redesigning the circuit. It helps integrators reduce adaptation time and simplifies the connection to existing hardware.
Compact Size, Easy Embedding
Measuring just 61 × 64.8 × 26 mm and weighing only 30g, the M0118 fits easily into compact housings. It works perfectly in devices where space is limited, offering high performance without increasing the footprint. Installers can embed it effortlessly into terminals, achieving seamless product integration.
Why Choose M0118 NFC Barcode Scanner Module?
– Supports 25 NFC card types
– Reads 1D and 2D barcodes with precision
– Soft LED ensures a glare-free user experience
– Offers USB, RS232, RS485, TTL, and Wiegand outputs
– Lightweight and easy to embed into terminals
Whether you’re developing new terminals or upgrading current devices, the M0118 delivers outstanding scanning accuracy, broad compatibility, and fast integration. Backed by Lonvill’s years of experience in embedded scanning technology, this module helps your smart terminal become smarter, faster, and more user-friendly.
Contact us now to get a quote, request samples, or explore customization options.
Specifications
| Model | M0118 (NFC) |
| Sensor | 640*480 CMOS |
| Illumination | White LED |
| Scan Angle | Roll ⼠360°, Skew ⼠70°, Pitch ⼠70° |
| Field of VIew | Diagonal 87.1°, horizontal 74°, vertical 65° |
| Symbologies | 2D: Aztec Code/ HANXIN/ Maxicode/ Codablock F/ Data Matrix Code (DPM)/ PDF417/ Micro PDF417/ QR Code/ Micro QR Code/ DOT Code/ Grid Matrix Code |
| 1D: Codabar/ Code 11/ Code 128/ Code 39/ Code 93/ EAN-8/EAN-13/ GS1 DataBar/ UPC-A/ UPC-E/ Interleaved 2 of 5/ Industrial 2 of 5/ Matrix 2 of 5/ Straight 2 of 5 IATA/ MSI Plessey | |
| Accuracy | ≥5mil |
| Print Contrast | ≥20% |
| Depth of Field (typ.) | EAN-13 (13mil) 10mm~100mm(size: 31mm*7mm) |
| Code39 (5mil) 20mm~60mm(size: 25mm*10mm) | |
| QR Code (15mil) 5mm~90mm(size: 8mm*8mm) | |
| NFC reading distance | 0mm-40mm |
| Interface | USB/ TTL-232/ RS232/ RS485/Wiegand |
| Dimension | 61(W)×64.8(D)×26(H) mm |
| Weight | 30g |
| Indication | LED light, Buzzer |
| Operating Temp. | 0°C~+50°C |
| Storage Temp. | 0°C~+50°C |
| Operating Voltage | 4.8V DC-16V DC |
| Power Consumption | 1500mW (typ.) |
| Current@5V DC | Operating 300mA (typ.) 400mA (max.) |
| Standby 130mA | |
| Humidity | 5%-95% (non-condensing) |
| Ambient Light | 0-100000Lux |
| Protection Grade | IP50 |
| Drop Specs | 1.2m |
| Electrostatic Protection | ESD meets EN61000-4-2, ±15KV air discharge, ±8KV contact |
| discharge | |
| LED Security Level | IEC 62471 |
