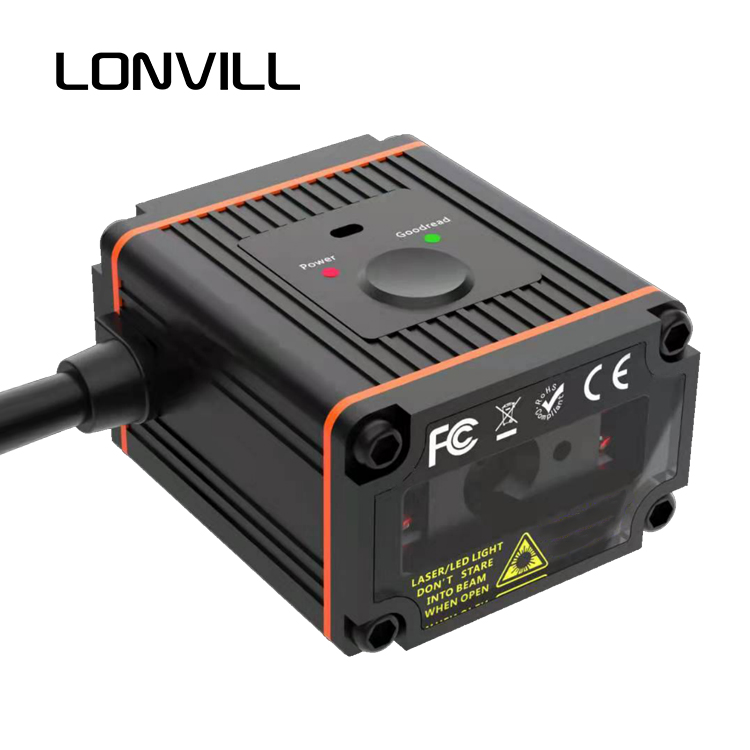

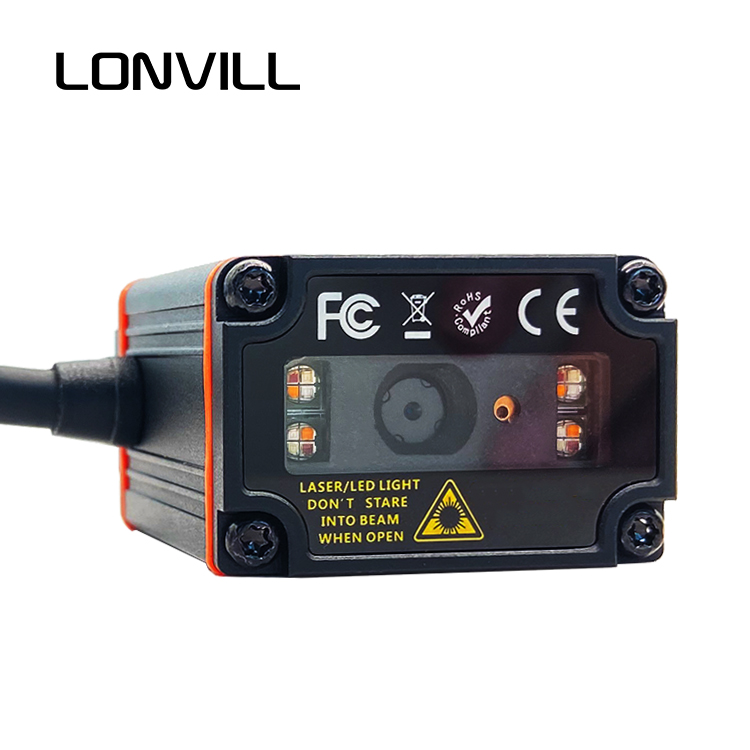

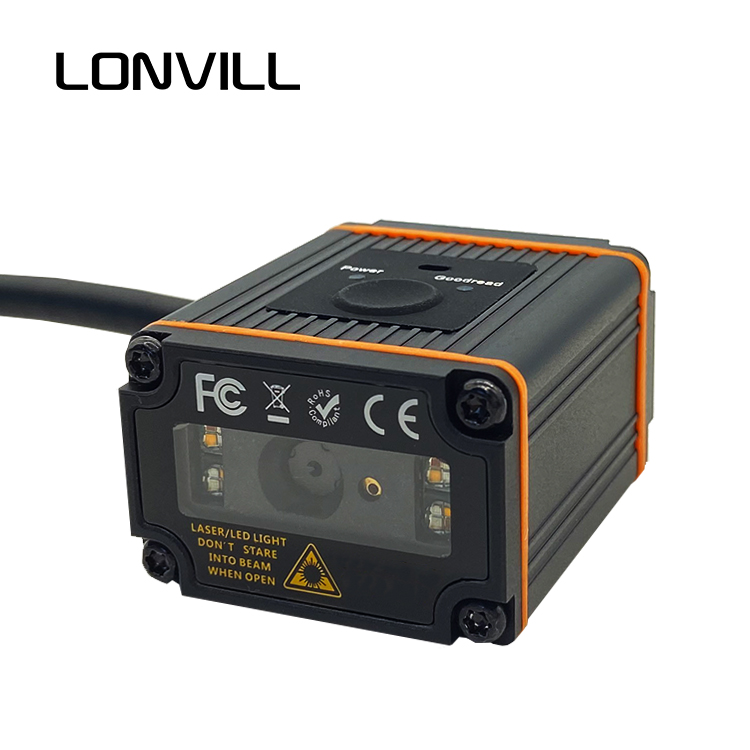

A30 IP65 Industrial Barcode Scanner

The A30 industrial barcode scanner from Lonvill is designed for demanding industrial environments that require both performance and durability. Its compact, space-saving design allows for easy integration into tight manufacturing lines or control systems without sacrificing efficiency. You can mount it anywhere thanks to its lightweight frame and intelligent layout.

Equipped with an intuitive configuration tool, the A30 helps you adjust parameters quickly during installation. No complex setup is required, making deployment smooth even for first-time users. This flexible setup streamlines your workflow and reduces downtime during device tuning.

To optimize readability, the scanner features adaptive white, red, and blue point LED lighting. These lighting options work intelligently to illuminate reflective, curved, or low-contrast surfaces, ensuring accurate code capture even in poorly lit areas. Whether you’re scanning DPM codes or scratched barcodes, the system adjusts automatically to boost performance.

Durability is key in industrial environments. The A30’s rugged metal housing meets IP65 standards, offering solid protection from dust and low-pressure water. You can rely on it in automotive factories, warehouses, and electronics assembly lines where conditions are tough and reliability matters.

High-speed decoding performance is at the heart of this scanner. It processes data rapidly and accurately, even under difficult barcode conditions. It also supports multiple code formats, making it suitable for complex automation systems.

Real-time feedback is built-in. LED indicators and a buzzer clearly notify you of scanning status, reducing operational guesswork and helping operators stay informed at every stage.

From high-speed production lines to electronics manufacturing, the A30 scanner boosts efficiency, ensures scanning precision, and reduces error rates. It’s your reliable partner in building smart, connected, and automated industrial environments. Lonvill’s A30 combines size, speed, and smart features into one powerful industrial-grade solution.

Specifications

Pixels1280 (H)*800 (V)
illuminationWhite/red/blue point light source
FocusingSingle Point Laser
Scan modeButton mode, serial command trigger mode
Symbologies1D:
UPCA,UPCE,EAN8,EAN13,Code128,Code 39, Code 93,Code 32, Code11,Codabar,Plessey,MSI,Interleaved 2 of 5,IATA 2 of 5,GS1-128,GS1
DataBar Expanded,GS1 DataBar 14,GS1 DataBar Limited,Pharmacode,etc.
2D:
Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, MaxiCode,Aztec,etc.
Resolution1D:≥3mil; 2D:≥7mil
Typical Depth of FieldCode39(3mil)50mm~90mm
EAN-13 (13mil)40mm~200mm
Code39(5mil)50mm~120mm
QR Code (7mil) 35mm~120mm
Data Matrix(10mil)40mm~150mm
Field of ViewHorizontal 46°, Vertical 29°
Symbol Contrast≥20%
Dimensions36(W)×43 (D)×24(H)(mm)
WeightAbout 100g (including 2m data cable)
InterfaceUSB,RS-232, Virtual COM Port
Tip methodBuzzer, LED indicator
Operating VoltageDC5V±5%
Current@5VDC500 mA ±5% (typical), 1000 mA ±5%(max)
Standby current100 mA ±5%
Trigger the input optocouplerMax. 15 mA (input power: 5V~24V; low potential trigger); 1 way
Operating Temperature-20℃~+50℃
Storage Temperature-40℃ to 70℃(-40°F to 158°F)
Humidity5% to 95% (non-condensing)
Static Protection±12 kV (air discharge), ±8 kV (direct discharge) 1.5 m
Drop height protection levelIP65
International CertificationFCC Part15 Class B, CE, EMC Class B
Warranty1 Year
