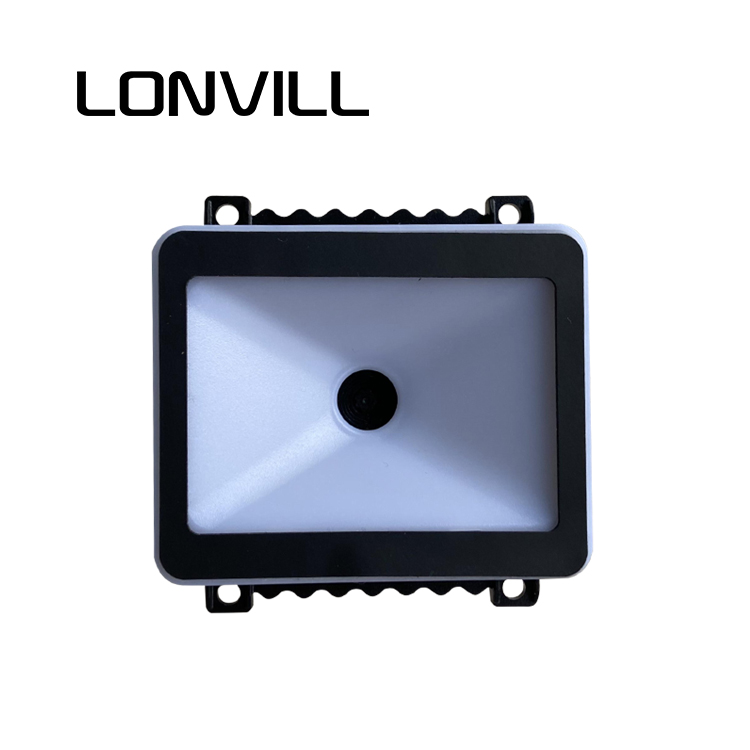

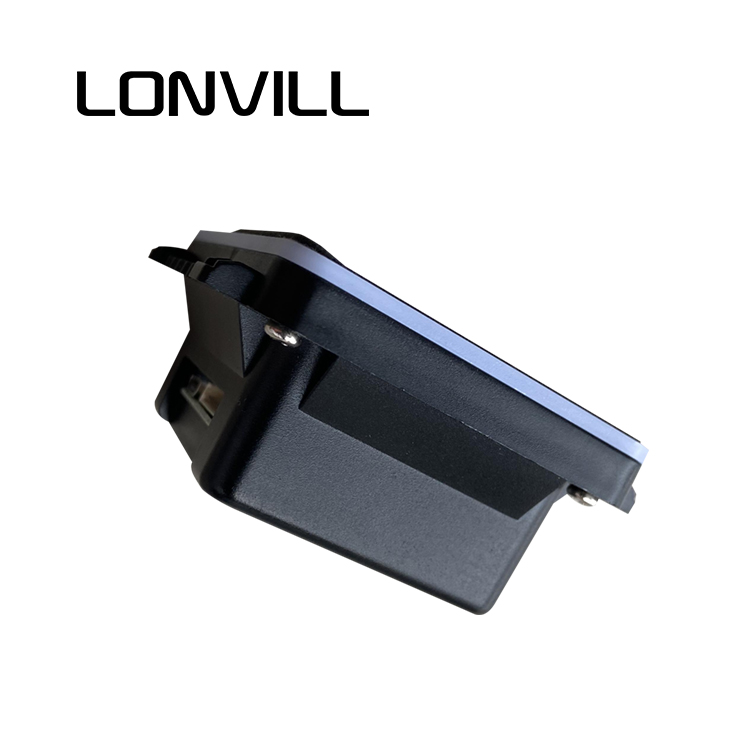

M1605 Ultra thin Scanner Modules
M1605 barcode scanning platform is a highly integrated, responsive, and stable barcode and QR code recognition product. Can read various mainstream one-dimensional barcodes and mainstream two-dimensional codes. The product has a very good scanning experience within the field of view angle and scanning depth range. The ultra-thin and compact product structure, with a total thickness of no more than 29mm, can greatly meet the ultimate size requirements of users. This product can be applied to self-service devices, payment, access control, and other fields.
-
Capteur: 640*480 CMOS
-
Scan Speed: 50MS
-
Précision: 6mil
-
Contraste d'impression: ≥25%
-
Poids: 41g
-
Dimensions: 65mm*64mm*30mm
-
Interface: RS232, USB, Micro-USB,TTL, Rs485
Caractéristiques
Core architecture
Thin embedded design: Total thickness<29MM, using reinforced optical glass, can be seamlessly integrated into devices with limited space
Multi symbol engine: decodes all industry standard 1D barcodes and 2D codes (including QR/DM/Aztec) with industrial grade accuracy
Product Highlights
Adaptive depth of field, optimized optical path maintains consistent reading rate within variable scanning distance
Photon capture optics reliably recognizes paper/screen codes under natural ambient light
Ultra sensitive scanning minimizes transaction latency in payment/access applications to the greatest extent possible
Deployment advantages

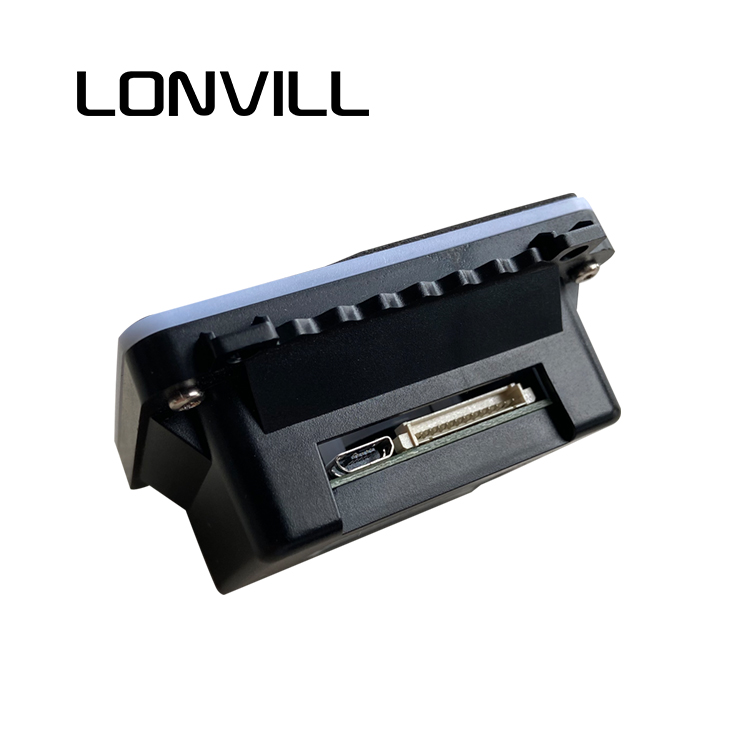

Protocol independent connection: Supports USB-C/Mini USB, RS232/TTL, Rs485, with hot swappable functionality
Dual color visual feedback: Dual (white/green) LED indicator lights can instantly confirm the operation status
EMV compliant enclosure: EMI shielding structure prevents interference in financial environments

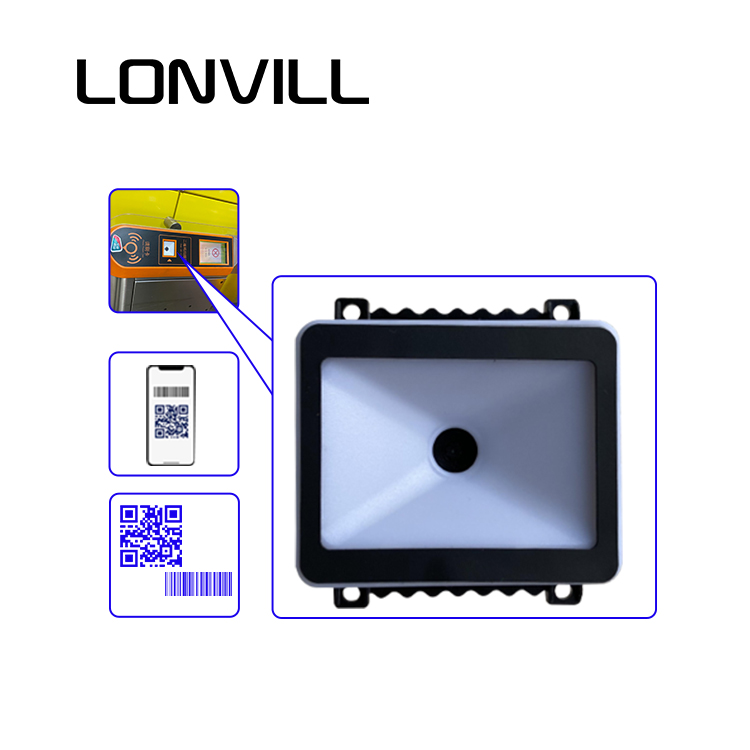

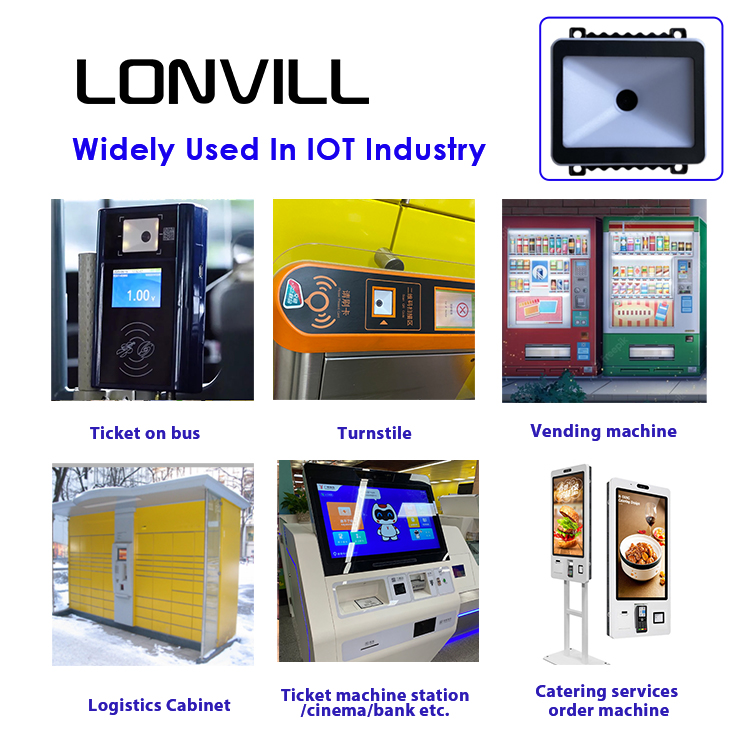

Specific Application Engineering
⊙ Self service terminal: space saving design suitable for the installation of vending kiosks/turnstiles
⊙ Cashless payment system: screen code reading for mobile wallet verification
⊙Security access control: The tamper proof structure complies with physical security standards
Caractéristiques
| Capteur | 640*480 CMOS |
| Field of view | Horizontal 65º, Opposite 80º, Vertical 51º |
| Scan Speed | 50MS |
| Décoder la capacité | 2D: QR code |
| 1D: UPC, Ean, Code 128, Code 32, Code 39 | |
| Précision | 6mil |
| Distance de balayage | UPC-A (16 mil) : 3CM-11cm |
| QR code (payment code) : 2cm-22cm | |
| Contraste d'impression | ≥25% |
| Angle de balayage | Roll ⼠360°, Skew ⼠55°, Pitch ⼠55° |
| Mode de balayage | Auto sensing/continuous/trigger |
| Interface | RS232, USB, Micro-USB,TTL, Rs485 |
| Dimensions | 65mm*64mm*30mm |
| Poids | 41g |
| Indicator | LED light (white, green) |
| Tension de fonctionnement | 4.75V-12.6V/3.0V-3.6V |
| Power consumption | 0.675W (5V)/ 0.62W (3.3V) |
| Operating Current | 135mame (5V) / 188mame(3.3V) |
| Standby Current | 62mame (5V) / 65mame(3.3V) |
| Indicator | LED light (white, green) |
| Operating Temp. | 0° C à 60 ° C |
| Humidité | 5%-95% (no-consdensing) |
| Storage Temp. | -30°C to 70°C |
| Ambient Light Immunity | 0-100,000Lux |
