A6500 Meilleur scanner à barres 2D industriel

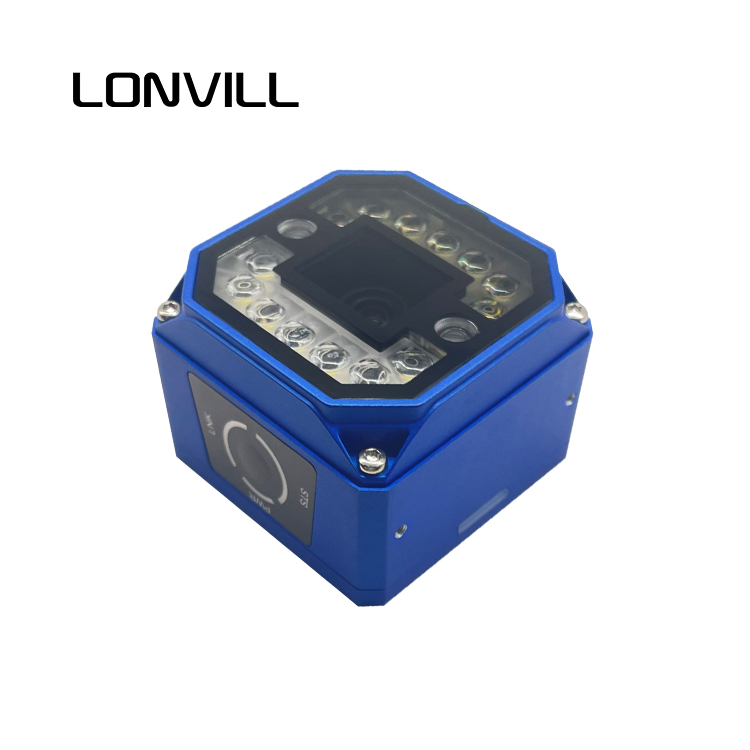

The Lonvill A6500 is a powerful 2D barcode scanner built for fast-paced industrial environments. Its high-resolution sensor and deep learning decoding engine make it a reliable choice for demanding scanning tasks. Whether dealing with low-contrast codes or worn labels, the A6500 captures data with speed and precision.

Its advanced imaging technology allows it to read both 1D and 2D barcodes easily. The scanner supports various barcode types, including QR, DataMatrix, PDF417, Et plus. The deep-learning algorithm optimizes recognition accuracy even under challenging lighting or surface conditions.

The A6500 integrates seamlessly into automation systems with its rich I/O interface. It offers multiple input and output signals, making it easy to communicate with control systems. From production lines to warehouse conveyors, this 2D barcode scanner fits in effortlessly.

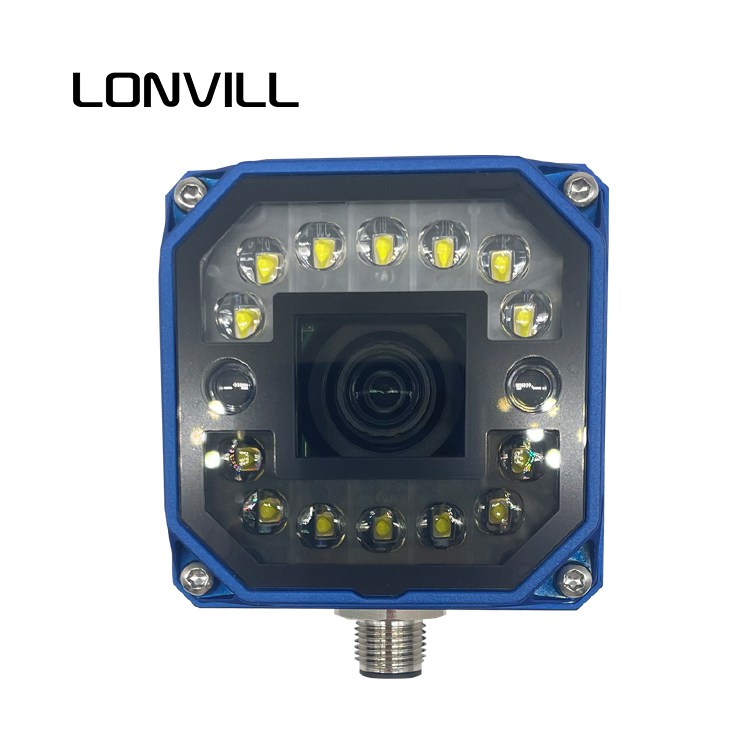

Engineered for user convenience, the A6500 features dual side waistline indicators, a top ring light, and a waterproof debug button. Operators can instantly view status from various angles, which improves workflow visibility. The smart physical design speeds up setup, monitoring, and maintenance.

Connectivity is another highlight. The scanner supports TCP, Serial, FTP, and industrial protocols like Profinet. This makes the A6500 compatible with a wide range of industrial platforms. Whether in logistics, manufacturing, or electronic assembly, the scanner adapts to your communication needs.

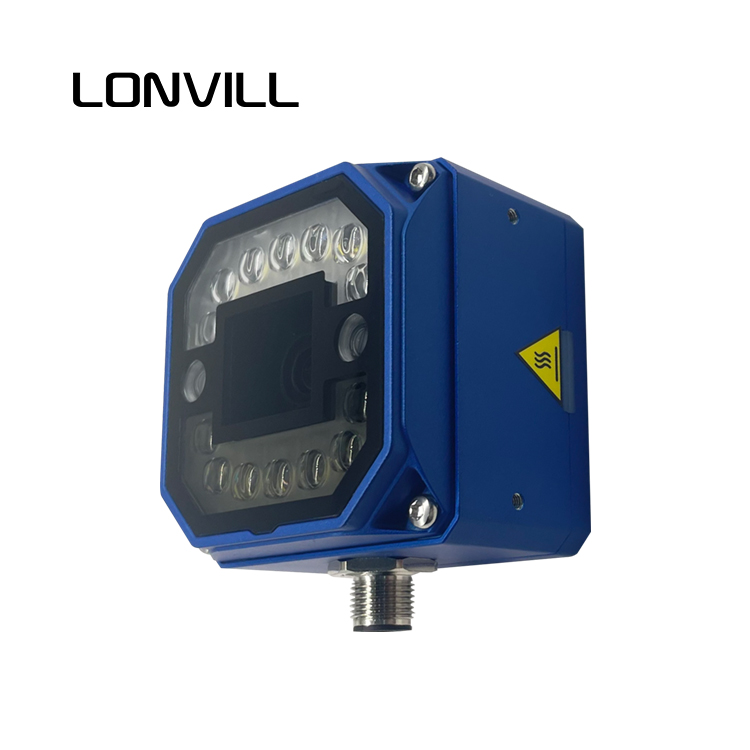

Built to last, the A6500 offers IP67-grade protection. Dust, water, and extreme temperatures won’t slow it down. You can count on stable performance in any tough environment, including high-humidity zones and outdoor industrial areas.

In summary, the A6500 2D barcode scanner combines precision, speed, and durability. Its versatile I/O and protocol support make integration easy, while its rugged build ensures years of reliable operation. Choose the A6500 to streamline your data capture and improve automation reliability across your workflow.

Caractéristiques

Performance
Parameters1280 × 1024 pixels
Bar Code Category1D codes:
Code 39, Code 93, Code 128, CodaBar, Ean 8, Ean 13, UPCA, UPCE, ITF 14, ITF 25, Matrice 25, MSI, China Post, Code 11 and Industrial 25,etc.
2D codes:
Code QR, Matrice de données, PDF 417,etc.
Maximum processing frame rate60 fps
Maximum read speed80 codes/second
Sensor TypeCMOS, global shutter 3.2 µm × 3.2 µm
Image size3.45 µm x 3.45 µm
Target surface size1/2.9″
Résolution1280 × 1024
Exposure time16 μs ~ 1 sec
Gain0 ~ 40 dB
Maximum Resolution1D 3mil; 2D 5mil
Communication protocolsSmart SDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP
Electrical Characteristics
Interface17-pin M12 interface provides power, Ethernet, digital IO, and serial port functions
EthernetFast Ethernet (100 Mbit/s)
Digital I/OIncludes 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS-232; supports device triggering via top button
Electricity supply12 ~ 24 VDC
Maximum power consumption20 W@24 VDC (fill light on)
Structure
Different focal lengths correspond to scanning angles06MM: 46*38; 12MM: 24*20; 15MM: 20*16
Lens InterfaceM12-mount, mechanical autofocus
Patch Light6 independent control of a total of 14 white light, half with polarizer hood
Light sourceSpot white light, optional spot red/blue light, wide angle white/blue light
Indicator lightPower indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG
Dimension65.2 mm×65.2mm×47.2mm
PoidsApprox. 290 g
IP Protection RatingIP67 (with proper lens waterproof cover installed correctly)
TemperatureOperating temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Humidité20% ~ 95%RH non-condensing
General Specifications
SoftwareFull-featured image debugging and machine setup software
