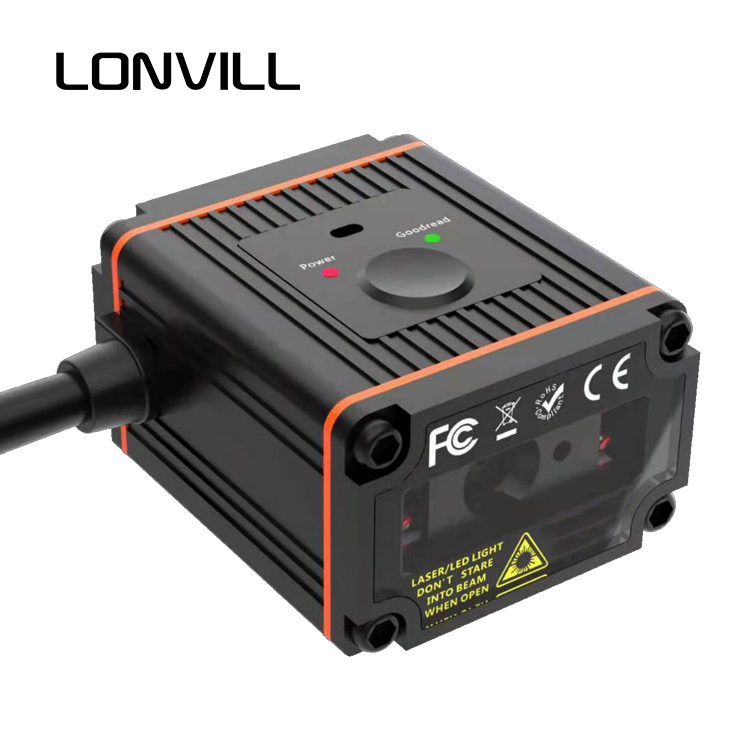

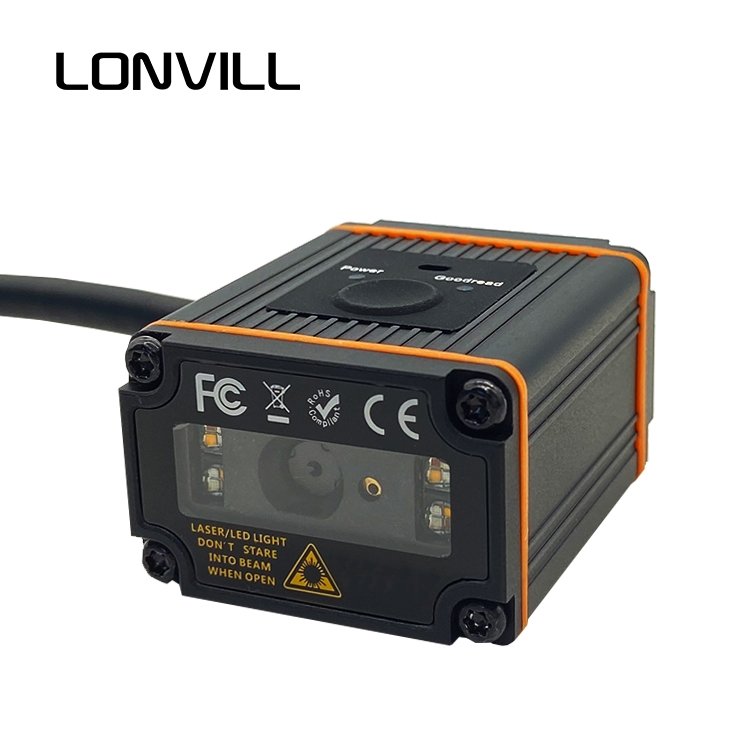

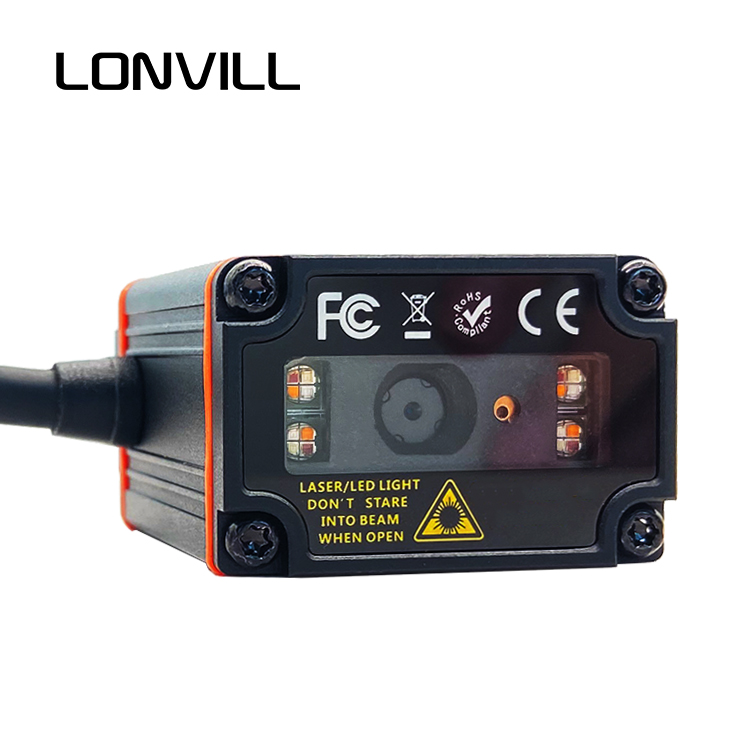

The A30 Industrial Barcode Scanner offers compact, durable IP65 design with a high-res sensor and intelligent lighting. It accurately reads low-contrast and DPM codes, making it ideal for electronics, automotive, and manufacturing applications.
The A30 industrial barcode scanner from Lonvill is designed for demanding industrial environments that require both performance and durability. Its compact, space-saving design allows for easy integration into tight manufacturing lines or control systems without sacrificing efficiency. You can mount it anywhere thanks to its lightweight frame and intelligent layout.
Equipped with an intuitive configuration tool, the A30 helps you adjust parameters quickly during installation. No complex setup is required, making deployment smooth even for first-time users. This flexible setup streamlines your workflow and reduces downtime during device tuning.
To optimize readability, the scanner features adaptive white, red, and blue point LED lighting. These lighting options work intelligently to illuminate reflective, curved, or low-contrast surfaces, ensuring accurate code capture even in poorly lit areas. Whether you’re scanning DPM codes or scratched barcodes, the system adjusts automatically to boost performance.
Durability is key in industrial environments. The A30’s rugged metal housing meets IP65 standards, offering solid protection from dust and low-pressure water. You can rely on it in automotive factories, warehouses, and electronics assembly lines where conditions are tough and reliability matters.
High-speed decoding performance is at the heart of this scanner. It processes data rapidly and accurately, even under difficult barcode conditions. It also supports multiple code formats, making it suitable for complex automation systems.
Real-time feedback is built-in. LED indicators and a buzzer clearly notify you of scanning status, reducing operational guesswork and helping operators stay informed at every stage.
From high-speed production lines to electronics manufacturing, the A30 scanner boosts efficiency, ensures scanning precision, and reduces error rates. It’s your reliable partner in building smart, connected, and automated industrial environments. Lonvill’s A30 combines size, speed, and smart features into one powerful industrial-grade solution.
Pixels | 1280 (H)*800 (V) |
illumination | White/red/blue point light source |
Focusing | Single Point Laser |
Scan mode | Button mode, serial command trigger mode |
Symbologies | 1D: |
UPCA,UPCE,EAN8,EAN13,Code128,Code 39, Code 93,Code 32, Code11,Codabar,Pilier,MSI,Entrelacé 2 of 5,IATA 2 of 5,GS1-128,GS1 | |
DataBar Expanded,GS1 DataBar 14,GS1 DataBar Limited,Pharmacode,etc.. | |
2D: | |
Matrice de données, Code QR, Micro QR, PDF417, Micro PDF417, MaxiCode,Aztèque,etc.. | |
Résolution | 1D:≥3mil; 2D:≥7mil |
Profondeur de champ typique | Code39(3mil)50mm ~ 90 mm |
EAN-13 (13mil)40mm~200mm | |
Code39(5mil)50mm~120mm | |
Code QR (7mil) 35mm ~ 120 mm | |
Matrice de données(10mil)40mm ~ 150 mm | |
Champ de vision | Horizontal 46 °, Vertical 29° |
Contraste de symbole | ≥20% |
Dimensions | 36(W)×43 (D)×24(H)(MM) |
Poids | About 100g (including 2m data cable) |
Interface | USB,RS-232, Virtual COM Port |
Tip method | Ronfleur, LED indicator |
Tension de fonctionnement | DC5V±5% |
Current@5VDC | 500 ma ± 5% (typical), 1000 ma ± 5%(max) |
Courant de veille | 100 ma ± 5% |
Déclencher l'optocoupleur d'entrée | Max. 15 mame (input power: 5V~24V; low potential trigger); 1 way |
Température de fonctionnement | -20℃ ~ + 50 ℃ |
Température de stockage | -40℃ to 70℃(-40°F to 158°F) |
Humidité | 5% à 95% (non condamné) |
Static Protection | ±12 kV (perfectionnement de l'air), ± 8 kV (décharge directe) 1.5 m |
Drop height protection level | IP65 |
International Certification | FCC Part15 Classe B, CE, Classe B EMC |
Warranty | 1 Year |
