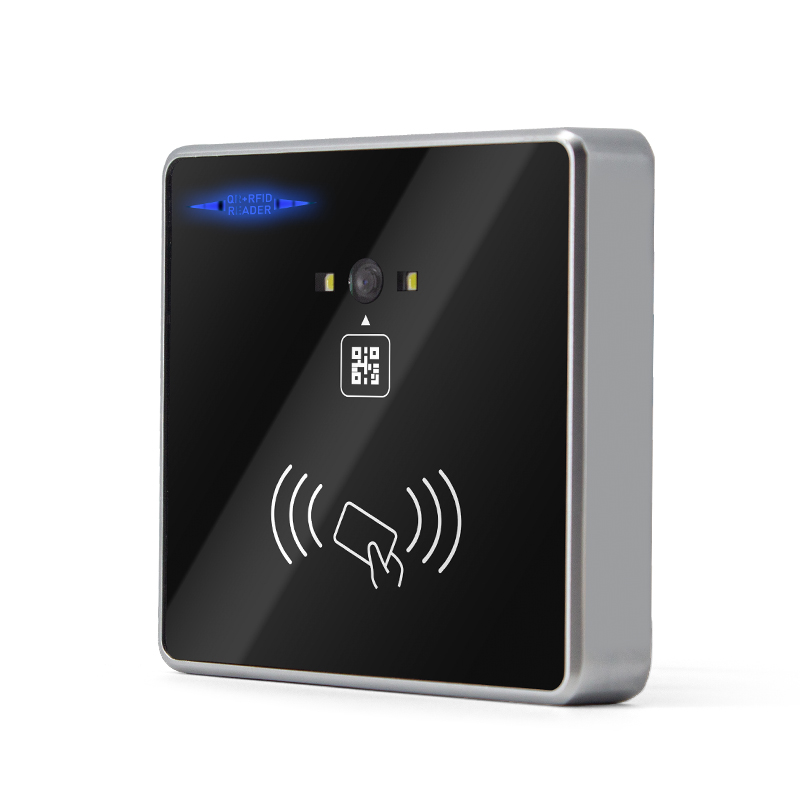

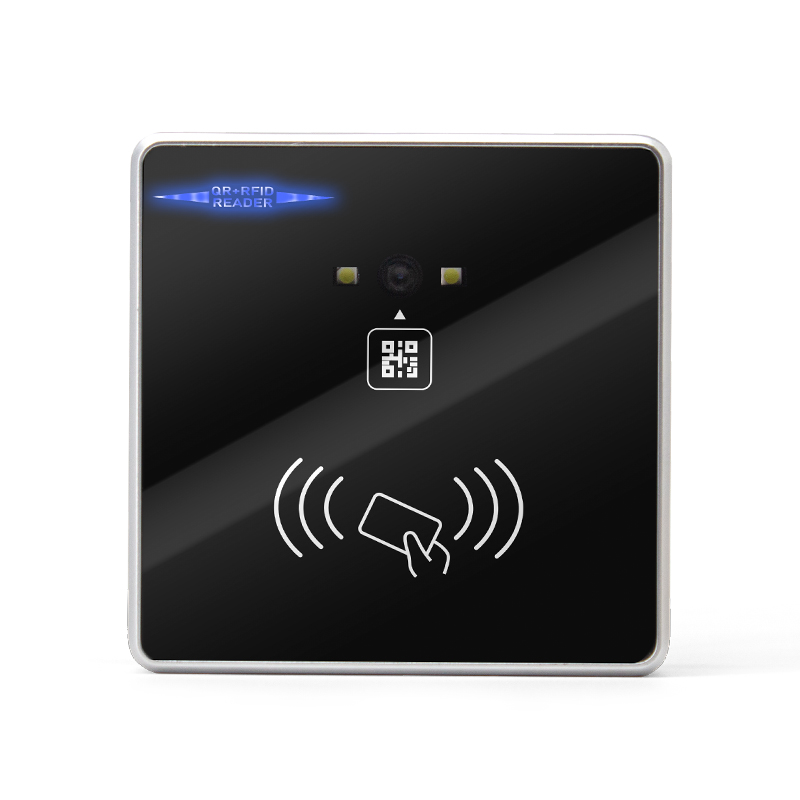

C4B QR Code RFID Access Control Reader
The QR code+RFID access control reader is a new generation multifunctional reader. The appearance of this product adopts the standard 86 box industry standard. It has fast scanning speed, high recognition rate, strong compatibility, and can be connected to any Wiegand input. This controller is suitable for various application scenarios. At present, it is widely used in the management of tourist entrances in business office buildings, the management of tourist staff in scenic spots, access control management in administrative halls, supporting gates, control de acceso, visitor machines, smart homes, etc.; It is a perfect upgrade of traditional credit card systems in various industries.
-
Voltaje de funcionamiento: 8-12V
-
Reading speed:＜200ms
-
Peso: 150G
-
Tamaño: 86mm×86mm×18mm
-
Card reading distance (card): 3~6CM
-
Reading distance (QR code): 0-20centímetro
-
Communication method: Wiegand 26/34/RS232/RS485/TTL
Características
Multifunctional Integration & Industry-Standard Design
This next-generation reader seamlessly integrates QR code scanning and RFID/NFC technology within a unified device, eliminating the need for separate hardware. Its housing adheres to the universal 86-box industrial standard (dimensiones: 86×86×50mm ±5mm), ensuring effortless retrofitting into existing infrastructure.
Unmatched Performance & Reliability
Rapid Scanning, enabling swift authentication even in high-traffic scenarios.
High Recognition Accuracy
it reliably reads printed/screen-based QR codes
Universal Compatibility & Flexible Deployment
Generates Wiegand 26/34-bit output, enabling plug-and-play integration with anythird-party access controller or gate system .
Presupuesto
| project | parameter |
| Card reader type | EM card or Mifare card |
| communication method | Wiegand 26/34/RS232/RS485/TTL |
| Reading direction (bar code) | Angle 45° with the lens as the center point |
| Voltaje de funcionamiento | 8-12V |
| Card reading distance (card) | 3~6CM |
| Reading distance (QR code) | 0-20centímetro |
| Working humidity | 10%~90% |
| operating system | WindowsXP/7/8/10), Linux |
| Indicator light | Blue work light, green feedback light |
| Barcode type | QR, one/two-dimensional code |
| Decoding mode | Image decoding |
| Scan code characteristics | Automatic induction, buzzer prompt |
| Corriente de trabajo | 800mamá |
| Reading speed | ＜200EM |
| Material quality | Zinc alloy frame + acrylic panel |
| Operating temperature | -20℃~70℃ |
| Tamaño | 86mm×86mm×18mm |
| Peso | 150G |
