A65-SR Small Size Fixed Barcode Scanner for Automation

Compact Barcode Solution for Industrial Demands

The A65-SR fixed barcode scanner provides robust decoding for automated applications. It uses a global shutter 1.3MP CMOS sensor that captures precise details with fast shutter speeds. Its small form factor fits tight spaces in industrial systems. The unit withstands harsh factory environments while delivering accurate and consistent results. With IP65-rated protection and rugged aluminum housing, it resists dust and water exposure. Installers easily integrate the device into existing automation lines, saving space and maintenance time.

Adaptive Performance in Complex Scenarios

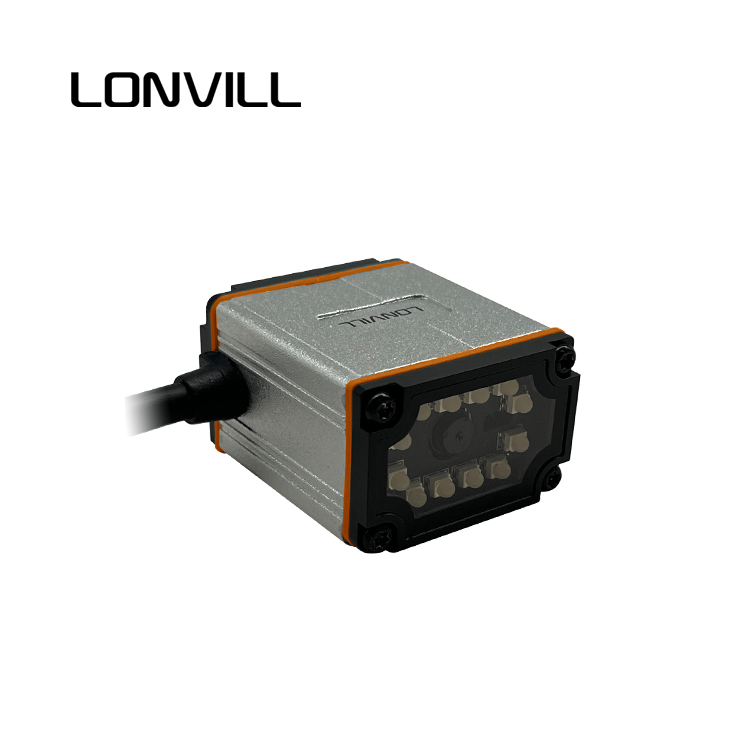

This scanner delivers unmatched decoding in difficult conditions. Its proprietary adaptive decoding engine reads worn, curved, and low-contrast barcodes. Smart illumination uses a 12-zone LED system to adjust intensity per section. Engineers benefit from dynamic light control to optimize contrast on reflective or bent surfaces. Whether it’s a glossy PCB or a rounded syringe, the A65-SR provides accurate scans in milliseconds.

Speed and Precision at the Core

Motion compensation lets the A65-SR capture codes at up to 2 meters per second. It maintains scan accuracy without losing sync in fast-moving lines. The high-velocity decoding architecture processes symbols without delay. Even small or degraded barcodes are decoded reliably. Operators avoid rescans, reducing process interruptions. The device improves output efficiency and ensures code integrity under rapid transit.

Flexible Integration Across Industries

The A65-SR fixed barcode scanner supports multiple automation environments. You can deploy it in electronics SMT lines, solar panel fabrication, medical device assembly, or CNC machining. It performs equally well in packaging stations or ATE test benches. Use it to confirm part identity, validate assembly, or match traceability data. Developers can configure scan zones and customize triggering to match system flow.

Reliable Performance Meets Intelligent Control

Engineers benefit from programmable illumination zones. This allows precise targeting of complex code areas. Its compact size fits robotic arms, conveyor belts, and enclosed test chambers. The scanner requires minimal calibration thanks to auto-brightness adjustment. Setup takes minutes using simple mount points and interface ports. Lonvill’s algorithm ensures readable output even on substrates with under 30% contrast. No extra PC required for preprocessing. System integrators appreciate the low power draw and stable output.

Presupuesto

Pixel1280 (H) * 800 (V) COMS

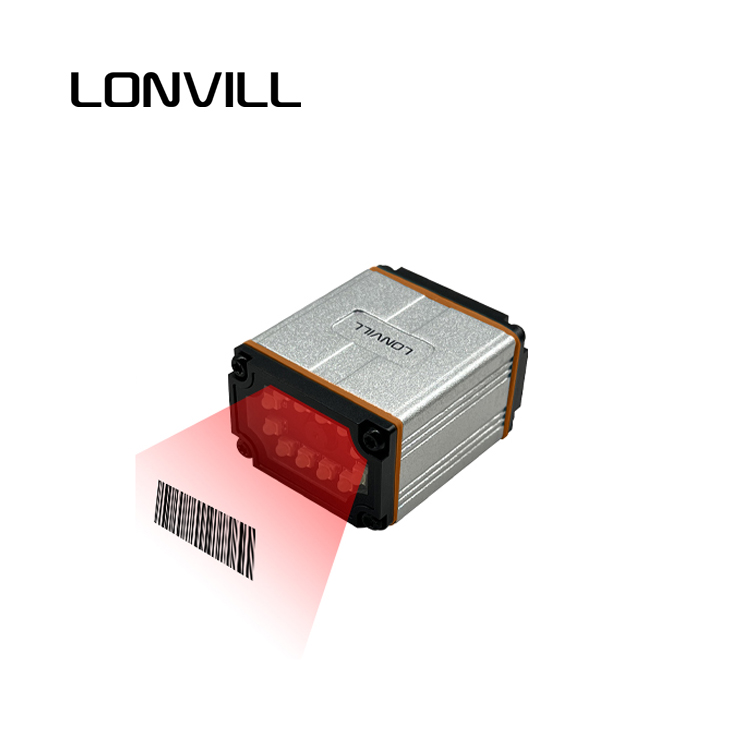

LightingRed light source
FocusGreen aiming LED
Reading modeKey mode, automatic sensing, continuous scanning, pulse mod
Code system2D: Matriz de datos , Código QR , Micro QR,PDF417, Micro PDF417 MaxiCode
azteca
1D: UPC A , UPC E , Ean 8 , Ean 13 , Código 128 , Código 39 , Código 93 ,Código
32 , Código11 , Codabar ,Plessey , MSI , Entrelazado 2 de 5 ,IATA 2 de 5 , Matriz 2
de 5 , Straight 2 de 5 , Farmacódigo , RSS-14 ,RSS-14 Expanded , RSS-14
Limited , Composite Code-A ,Composite Code-B , Composite Code-C
Reading accuracy1D: ≥3 mil ; 2D: ≥5 mil
Depth of fieldCódigo 39 (4mil) 40mm~110mm
Matriz de datos(10mil) 35mm~300mm
100% UPCA (13mil) 35mm~300mm
Field of view AngleHorizontal 46° (H), vertical 29° (V)
Print contrast≥20%
Dimensiones36(W)*38(D)*24(H)(mm)
Weight≈85g (excluding cables)

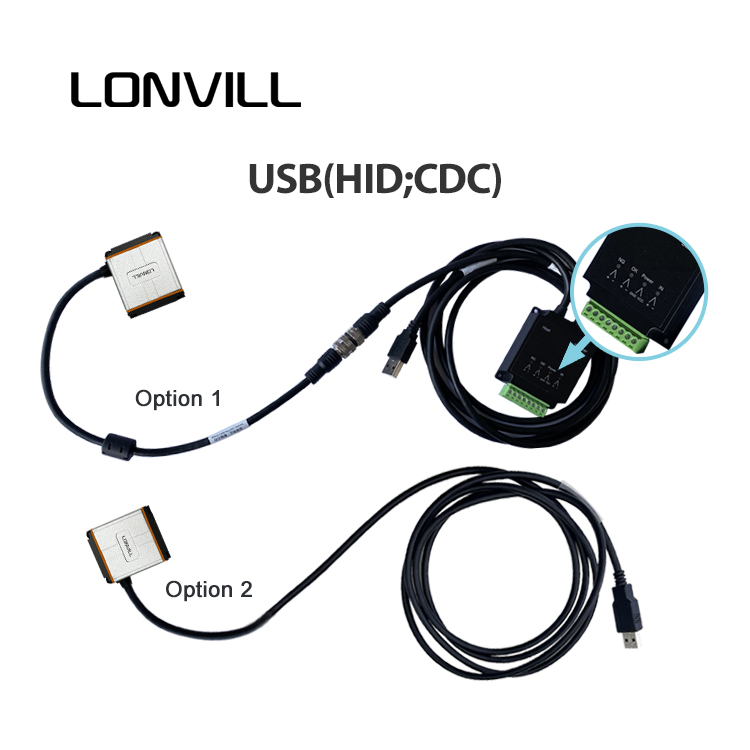

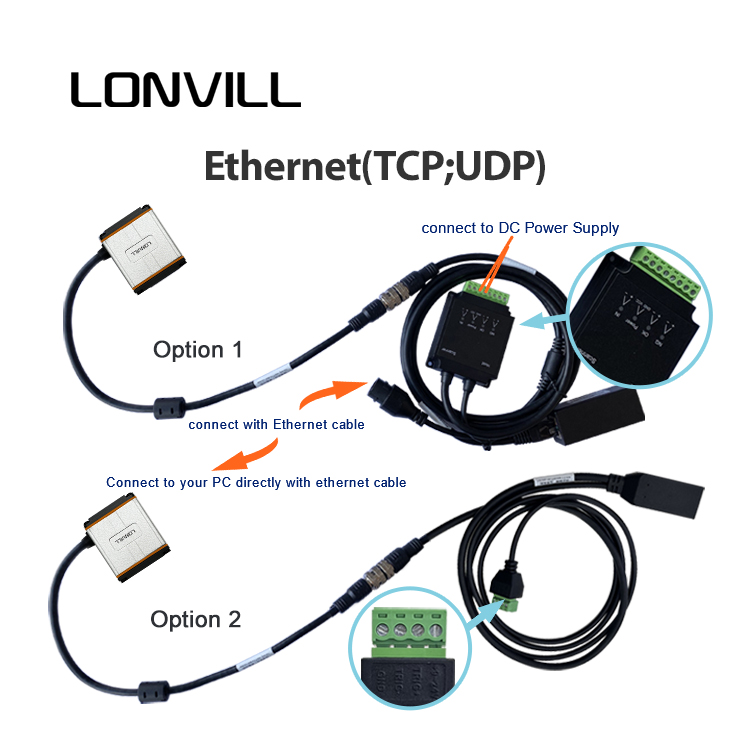

InterfaceRS-232 / USB (HID ; CDC)/RS-232 to network port

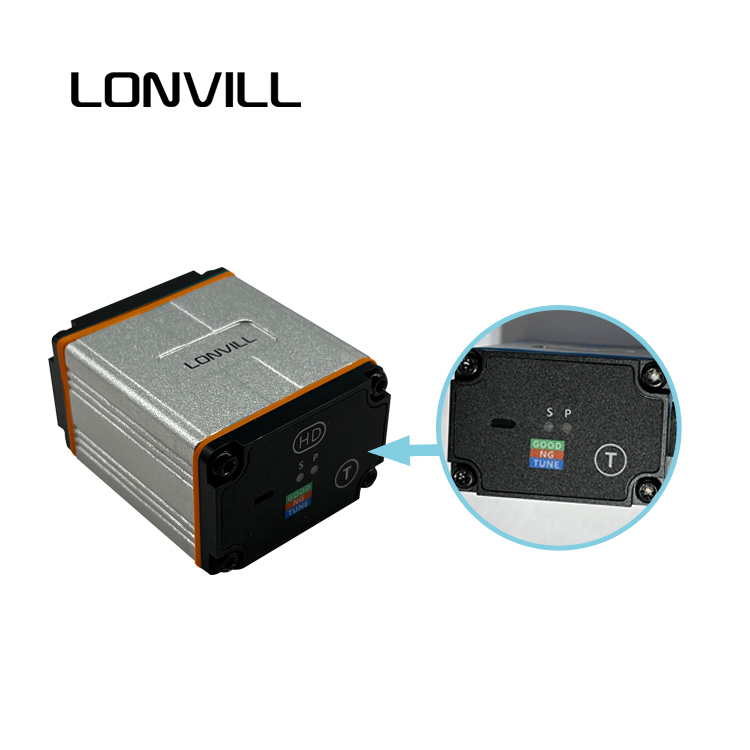

Prompt modeBuzzer, LED indicator light
Working voltageDC 5V to 24V±5% (connected to the I/O control box)
Working current300 mA ±5% (typical value), 450 mA ±5% (maximum value)
Standby current100 mA ±5%
External output2-channel optical couple isolated output (Good; “NG
Trigger the input optocoupler1-channel optical couple isolated input (NPN/PNG/relay)
Working temperature-20℃~+50℃
Storage temperature-40℃~+70℃
Relative humidity5% a 95% (no condensation)
Electrostatic protection±20 kV (air discharge), ±8 kV (direct discharge)
Drop height1.5M
Protection gradeIP65
CertificationFCC Part15 Class B,Ceñudo,EMC Class B
