Escáner de código A65-HD para clasificador logístico

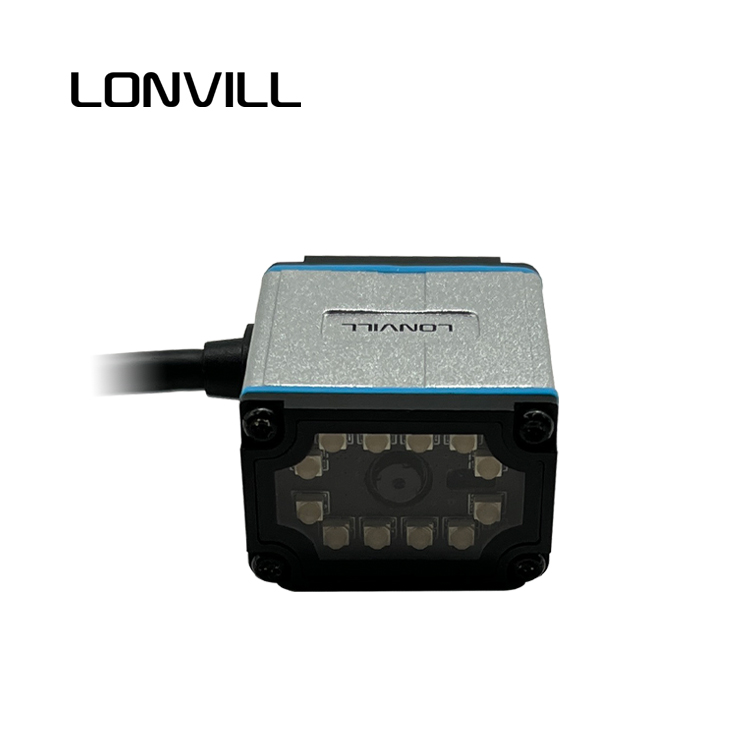

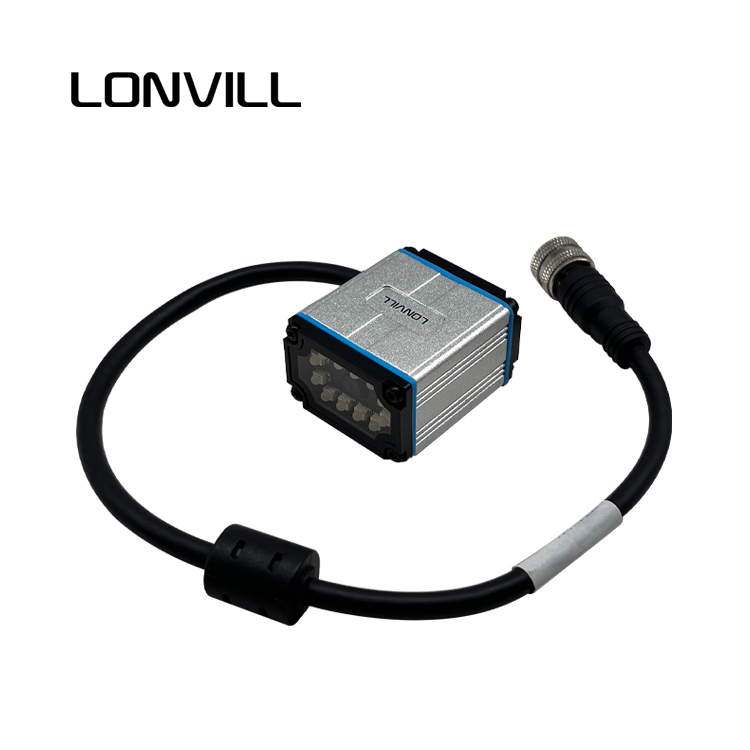

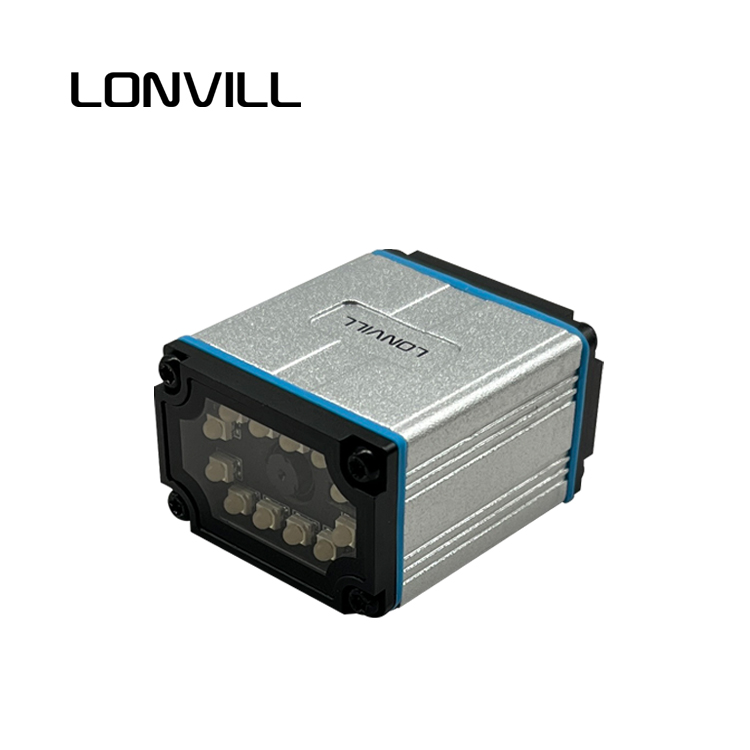

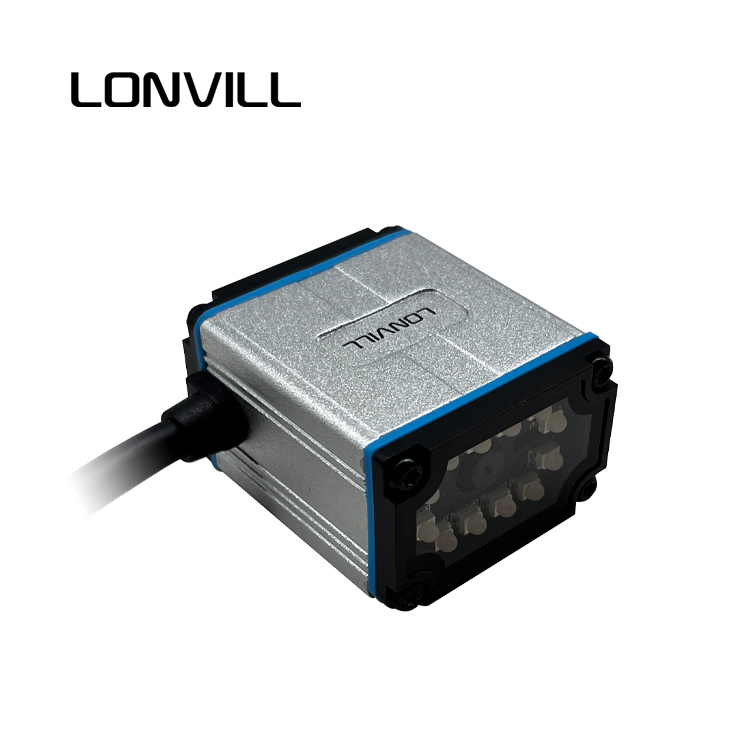

A65-HD industrial solid scanning is equipped with a 1280 × 800 high-definition image sensor, integrated with 12 zone controllable LED light source, suitable for scanning reflective curved materials, combined with intelligent image correction technology, can reconstruct damaged and low contrast barcodes, and can decode at 2m/s high-speed without pressure. Aluminum alloy shell+IP65 protection, resistant to dust, oil, and vibration impact; Supporting flexible and compatible interfaces with automation devices, A65-HD has become an ideal visual solution in the fields of intelligent manufacturing, automated testing, and self-service terminals due to its high-definition imaging, dynamic decoding, and industrial robustness.
-
Píxel: 1280 (H) * 800 (V) Comsas
-
Grado de protección: IP65
-
Field of view Angle Horizontal 46° (H), vertical 29 ° (V)
-
Dimensiones: 36(W)*38(D)*24(H)(mm)
-
Peso: ≈85g (excluyendo cables)
-
Modo de inmediato: Zumbador, Luz indicadora LED
-
Corriente de espera: 100 mA ± 5%
-
Voltaje de trabajo: DC 5V a 24V ± 5% (conectado a la caja de control de E/S)
-
Corriente de trabajo: 300 mA ± 5% (valor típico), 450 mA ± 5% (valor máximo)
Características
High-Speed Decoding for Logistics & Automation
The A65-HD code scanner delivers high-speed decoding for complex logistics and automation systems. It integrates a 1280×800 HD image sensor to capture fine barcode details accurately. This sensor supports high-resolution imaging in dynamic working environments.
Precision Imaging with Adaptive Lighting
With 12-zone adjustable LED lighting, the scanner adapts to various reflective or curved materials. It decodes damaged or low-contrast codes with stability. Intelligent image rectification enhances accuracy under difficult conditions. The scanner processes codes at speeds up to 2 metros por segundo, ensuring reliable data acquisition during fast-moving operations.
Durabilidad industrial & IP65 Protection
Its aluminum alloy housing provides industrial-grade durability. The IP65 sealing protects against dust, oil, y vibración, allowing consistent performance in harsh environments.
Flexible Connectivity for Seamless Integration
A65-HD supports USB, Rs232, and Ethernet interfaces. Users can choose a direct cable connection or an optional IO box. This makes it highly compatible with automated control systems across industries.
Customizable LED Zones for Application Flexibility
The flexible lighting configuration includes top, bottom, left, and right LED arrays. Operators can switch individual zones based on application needs. The built-in intelligent engine adjusts exposure dynamically, ensuring precise scans even on reflective surfaces.
Versatile Deployment Across Industries
Whether used in assembly lines or CNC stations, the scanner adapts seamlessly. It integrates into mobile device production lines, self-service kiosks, or PV module synchronization systems. Its robust construction and compact form enable easy OEM integration.
Reliable Performance for OEM & Medical Applications
Medical device makers and testing equipment manufacturers trust its reliability. This scanner supports real-time data exchange for traceability and performance analysis. You can count on it to reduce scan errors and improve operational efficiency.
Engineered for Demanding Environments
Its consistent decoding makes it ideal for critical industrial applications. From high-speed tracking to secure label verification, A65-HD delivers stable performance across varied use cases.
Quality Assurance from a Trusted Manufacturer
Lonvill’s strict quality control ensures each unit meets industry compliance and passes endurance tests. Partner with us to upgrade your automation process with intelligent, high-speed scanning.
Presupuesto
| Píxel | 1280 (H) * 800 (V) |
| Iluminación | Fuente de luz roja |
| Enfocar | LED de apunte verde |
| Modo de lectura | Modo clave, detección automática, escaneo continuo, Coraje de pulso |
| Sistema de código | 2D: Matriz de datos , Código QR , Micro QR，PDF417, Micro PDF417 Maxicodo， azteca |
| 1D: UPC A , Upc e , Ean 8 , Ean 13 , Código 128 , Código 39 , Código 93 ,Código 32 , Código11 , Codabar ,Plésy , MSI , Entrelazado 2 de 5 ,IATA 2 de 5 , Matriz 2 de 5 , Derecho 2 de 5 , Farmacódigo , RSS-14 ,RSS-14 expandido , RSS-14 Limitado , Código compuesto-A ,Código compuesto-B , Código compuesto-C | |
| Precisión de la lectura | 1D: ≥3 mil ; 2D: ≥5 mil |
| Profundidad de campo | Código39(3mil) 50mm ~ 90 mm |
| UPC-A (13mil) 30mm ~ 165 mm | |
| Código QR (7mil) 35mm ~ 120 mm | |
| Matriz de datos (10mil) 40mm ~ 150 mm | |
| Ángulo de campo de visión | Horizontal 46 ° (H), vertical 29 ° (V) |
| Imprimir contraste | ≥20% |
| dimensiones | 36（W） × 38 （D） × 24 （H）(mm) |
| Peso | ≈85g (excluyendo cables) |
| Interfaz | RS-232 / USB (Escondite ; Centros para el Control y la Prevención de Enfermedades)/RS-232 al puerto de red |
| Modo de inmediato | Zumbador, Luz indicadora LED |
| Voltaje de trabajo | DC 5V a 24V ± 5% (conectado a la caja de control de E/S) |
| Corriente de trabajo | 300 mA ± 5% (valor típico), 450 mA ± 5% (valor máximo) |
| Corriente de espera | 100 mA ± 5% |
| Salida externa | 2-Salida aislada de la pareja óptica del canal (Bien; “De” |
| Activar el optoacopler de entrada | 1-Entrada aislada de la pareja óptica del canal (NPN/PNG/Relé) |
| Temperatura de trabajo | -20℃ ~+50 ℃ |
| Temperatura de almacenamiento | -40℃ ~+70 ℃ |
| Humedad relativa | 5% a 95% (Sin condensación) |
| Protección electrostática | ± 20 kV (descarga de aire), ± 8 kV (descarga directa) |
| Altura de caída | 1.5METRO |
| Grado de protección | IP65 |
| Proceso de dar un título | FCC Parte15 Clase B，Ceñudo，EMC Clase B |
