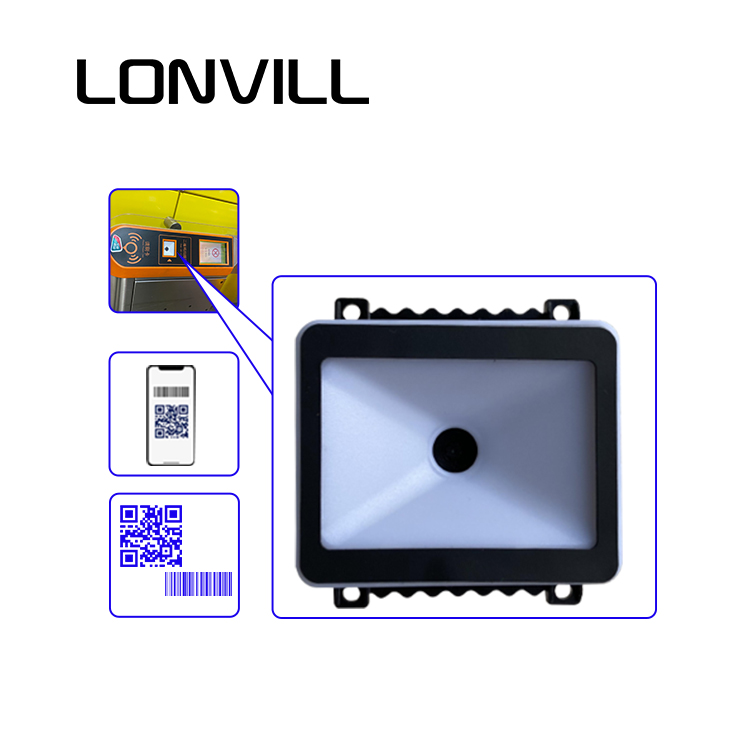

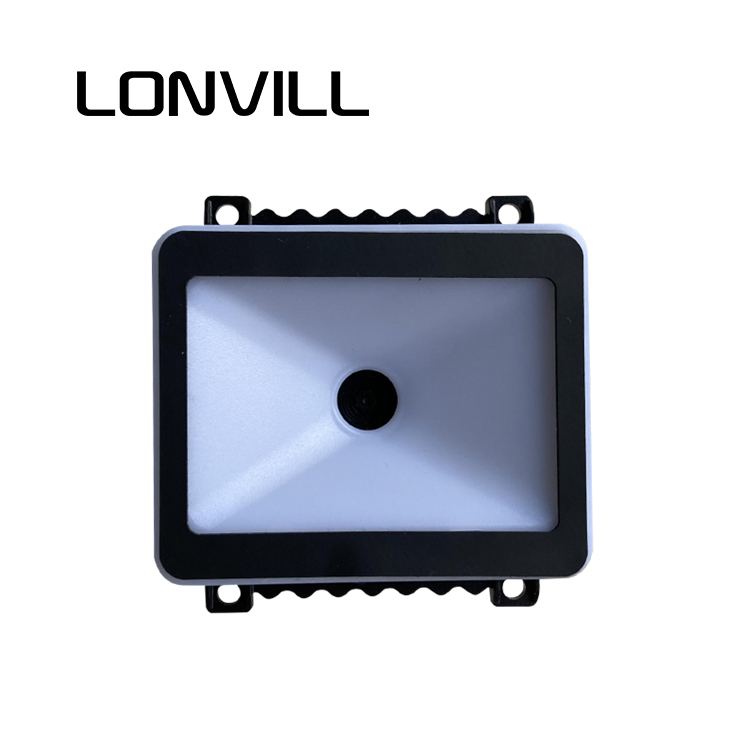

M1605 Ultra -Thin -Scanner -Module
M1605 barcode scanning platform is a highly integrated, responsive, and stable barcode and QR code recognition product. Can read various mainstream one-dimensional barcodes and mainstream two-dimensional codes. The product has a very good scanning experience within the field of view angle and scanning depth range. The ultra-thin and compact product structure, with a total thickness of no more than 29mm, can greatly meet the ultimate size requirements of users. This product can be applied to self-service devices, payment, Zugangskontrolle, and other fields.
-
Sensor: 640*480 CMOs
-
Scan Speed: 50MS
-
Genauigkeit: 6mil
-
Druckkontrast: ≥25%
-
Gewicht: 41G
-
Abmessungen: 65mm*64mm*30mm
-
Schnittstelle: RS232, USB, Micro-USB,Ttl, RS485
Merkmale
Core architecture

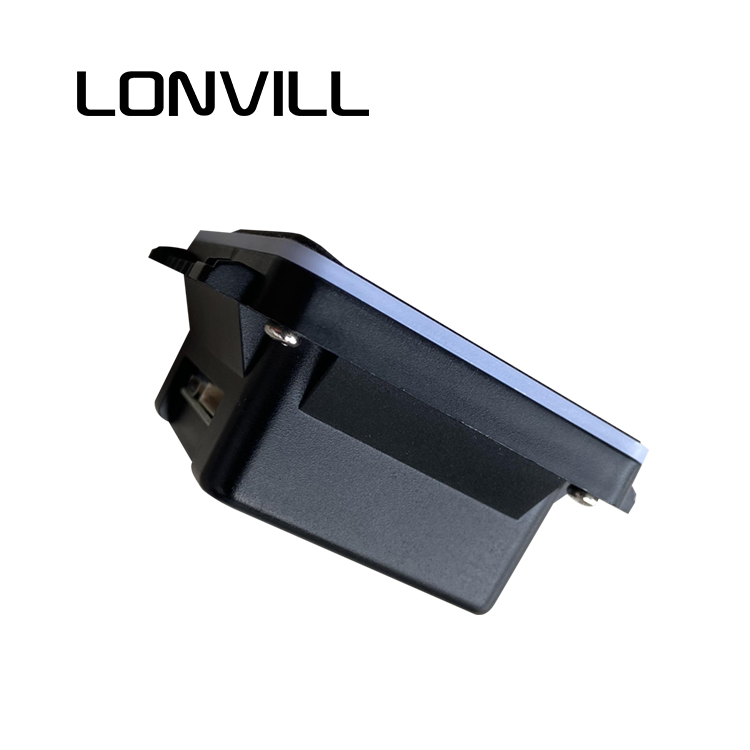

Thin embedded design: Total thickness<29mm, using reinforced optical glass, can be seamlessly integrated into devices with limited space
Multi symbol engine: decodes all industry standard 1D barcodes and 2D codes (including QR/DM/Aztec) with industrial grade accuracy
Product Highlights
Adaptive depth of field, optimized optical path maintains consistent reading rate within variable scanning distance
Photon capture optics reliably recognizes paper/screen codes under natural ambient light
Ultra sensitive scanning minimizes transaction latency in payment/access applications to the greatest extent possible
Deployment advantages

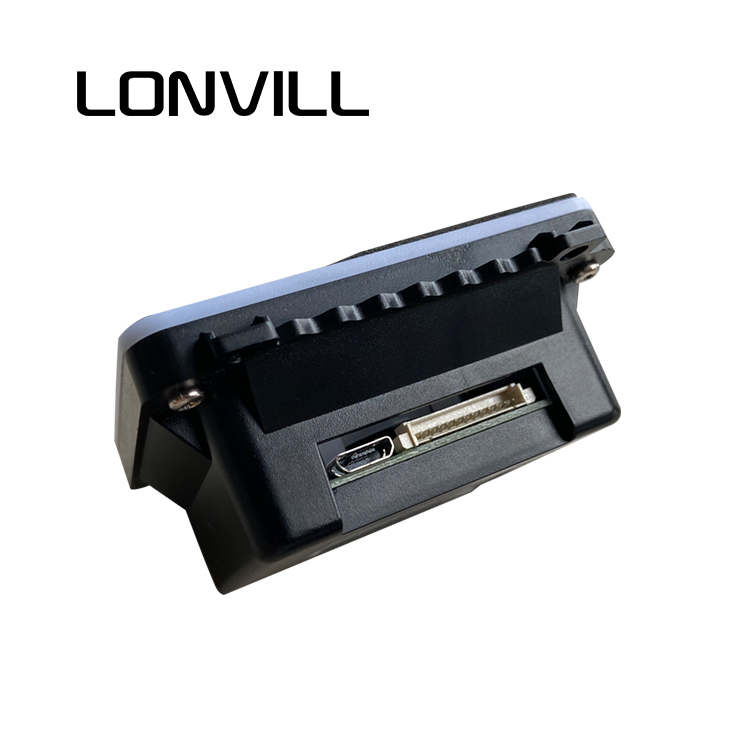

Protocol independent connection: Supports USB-C/Mini USB, RS232/TTL, RS485, with hot swappable functionality
Dual color visual feedback: Dual (white/green) LED indicator lights can instantly confirm the operation status
EMV compliant enclosure: EMI shielding structure prevents interference in financial environments
Specific Application Engineering
⊙ Self service terminal: space saving design suitable for the installation of vending kiosks/turnstiles
⊙ Cashless payment system: screen code reading for mobile wallet verification
⊙Security access control: The tamper proof structure complies with physical security standards
Spezifikationen
| Sensor | 640*480 CMOs |
| Sichtfeld | Horizontal 65º, Opposite 80º, Vertical 51º |
| Scan Speed | 50MS |
| Kapazität dekodieren | 2D: QR -Code |
| 1D: UPC, Ean, Code 128, Code 32, Code 39 | |
| Genauigkeit | 6mil |
| Scanabstand | Upc-a (16 mil) : 3CM-11cm |
| QR -Code (payment code) : 2cm-22cm | |
| Druckkontrast | ≥25% |
| Scanwinkel | Roll ⼠360°, Skew ⼠55°, Pitch ⼠55° |
| Scanmodus | Auto sensing/continuous/trigger |
| Schnittstelle | RS232, USB, Micro-USB,Ttl, RS485 |
| Abmessungen | 65mm*64mm*30mm |
| Gewicht | 41G |
| Indikator | LED light (white, green) |
| Betriebsspannung | 4.75V-12.6V/3.0V-3.6V |
| Power consumption | 0.675W (5V)/ 0.62W (3.3V) |
| Operating Current | 135ma (5V) / 188ma(3.3V) |
| Standby Current | 62ma (5V) / 65ma(3.3V) |
| Indikator | LED light (white, green) |
| Betriebstemperatur. | 0° C bis 60 ° C. |
| Luftfeuchtigkeit | 5%-95% (no-consdensing) |
| Speichertemperatur. | -30°C to 70°C |
| Ambient Light Immunity | 0-100,000Lux |
