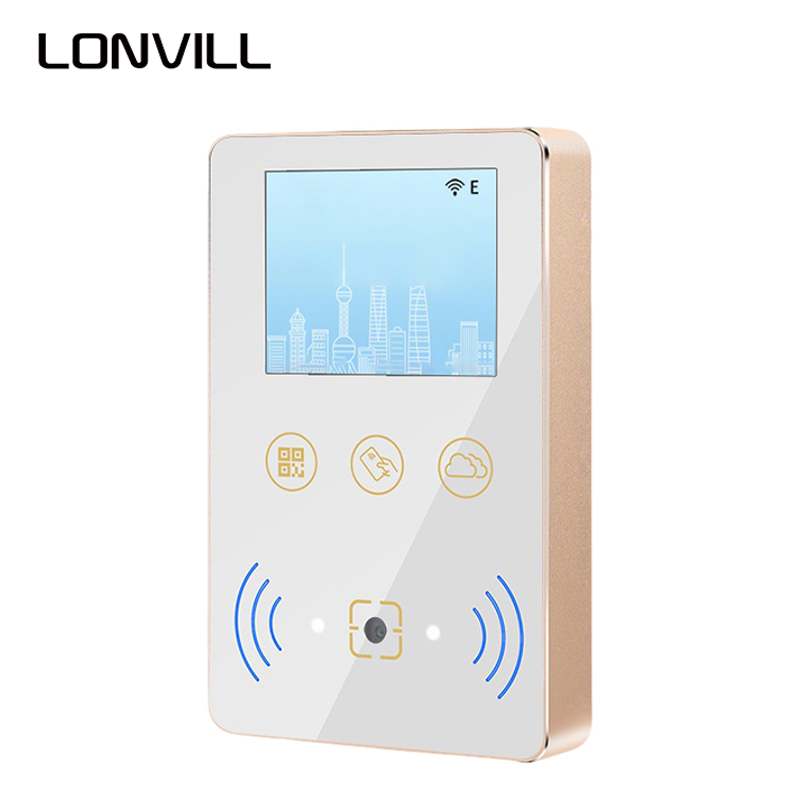

CR08 Access Control Card Readers
CR08 series QR code cloud access control integrated machine features a panel made of high-quality 9H tempered glass, which has excellent scratch resistance, is waterproof and dustproof, has a wide scanning field of view, operates quickly, has a high recognition rate, and is highly compatible. It can be connected to wired Ethernet, WIFI, and supports HTTP/HTTPS, MQTT network protocols. It is equipped with an audio amplifier, allowing for customizable voice announcements. It has a 2-inch IPS screen and can be customized for the display interface.
-
Größe: 108.8*69*15mm
-
Erkennungsgeschwindigkeit: <200 MS
-
Reading Distance: 5-20cm
-
Kommunikationsprotokoll: http、https、Mqtt
-
Display: 2.0-inch IPS screen, resolution 320*240
-
Material: Aluminum alloy + Tempered glass
Merkmale
Identifikationsmethode
1.Supports QR/IC/CPU cards, ID & Bluetooth recognition.
2.Blocks cloned/NFC-emulated cards.
Multiple connection methods
Support Ethernet (TCP/IP)/RS485/WIFI/HTTPS/MQTT
Ethernet output directly connects to access control system
Product Features
With wide-angle QR scanning, 0.2s in any light, 360° fast recognition.
Four Protections
IPX7 waterproof, Anti-tampering, Anti-freeze, Anti-wrong connection
Three Working Modes
1.Online-Priority, Offline-Backup
2.Offline-Only
3.Offline-Priority, Online-Backup
Powerful Offline Verification
Stores 100,000 user profiles & access records offline, supports offline dynamic QR code scanning (with time/usage limits)
Custom Settings
Customizable UI & voice prompts, highly flexible
SDK and secondary development agreement are available

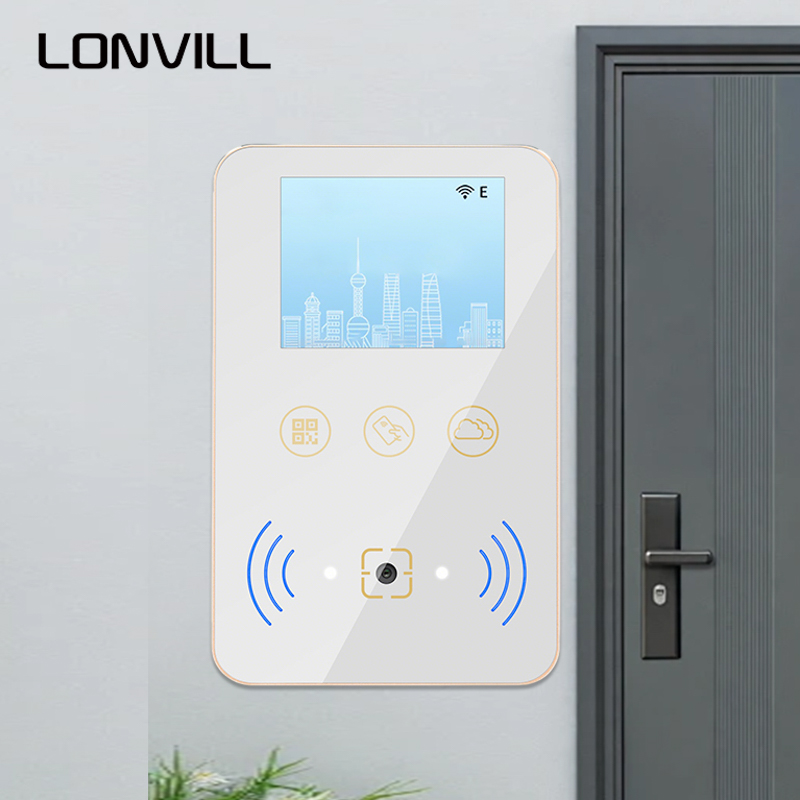

Anwendungsszenarien
Access control,Turnstiles, Office buildings, Venue reservations, usw.
Spezifikationen
| Name | QR Code Cloud Access Control Integrated Machine | ||
| Model | CR08EUP | CR08EUPW | CR08EUP-B |
| Networking Method | Wired Ethernet | Wired Ethernet/WIFI (2.4G) | Wired Ethernet |
| Identifikationsmethode | QR Code/IC Card/ID Card | QR Code/IC Card/ID Card | QR Code/IC Card/ID Card/Bluetooth |
| WIFI Protocol | / | 802.11b/g/n | / |
| WIFI&RF认证 | / | FCC/CE-RED/SRRC | / |
| Bluetooth Protocol | / | / | Bluetooth Specification 4.0 BLE |
| Output Mode | Relay Signal | ||
| Main Control Sensor | XBurst® 800MHz | ||
| Betriebssystem | Embedded Linux | ||
| Speicherkapazität | Anzahl der Offline -Benutzer (QR -Code 100,000, IC card 100,000), number of offline records 100,000 | ||
| Tamper alarm | / | ||
| Storage Memory | 128M Flash | ||
| Kommunikationsprotokoll | http、https、Mqtt | ||

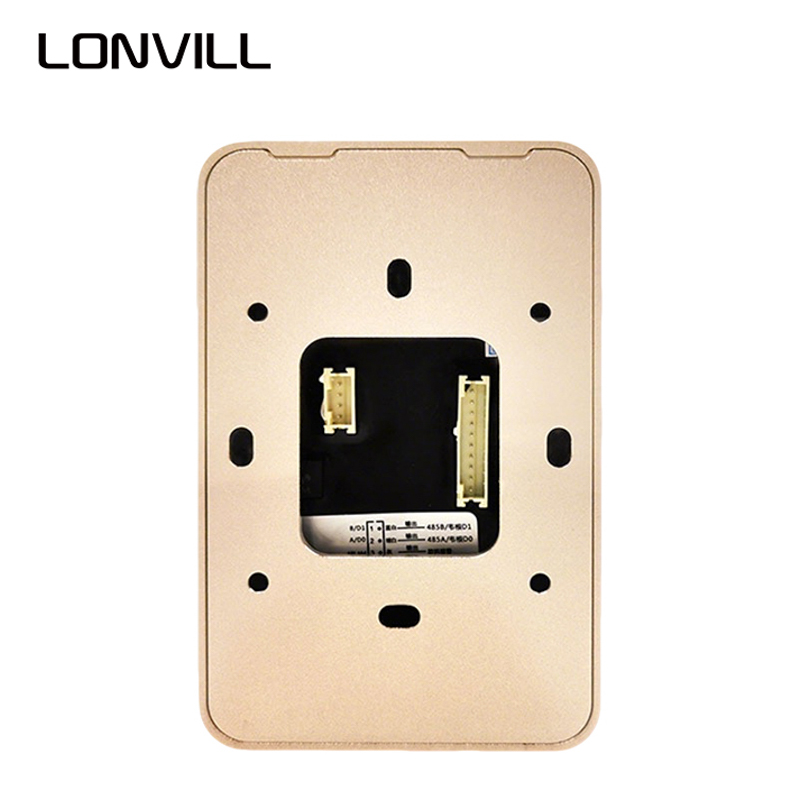

| Input and Output | Two inputs (for connecting buttons to open doors and door sensors); | ||
| One relay output (can be used to control electric locks, gates, usw.) | |||
| Extended Communication Interface | Wiegand output or 485 output (optional, choose one, default Wiegand output) | ||
| Display | 2.0-inch IPS screen, resolution 320*240 | ||

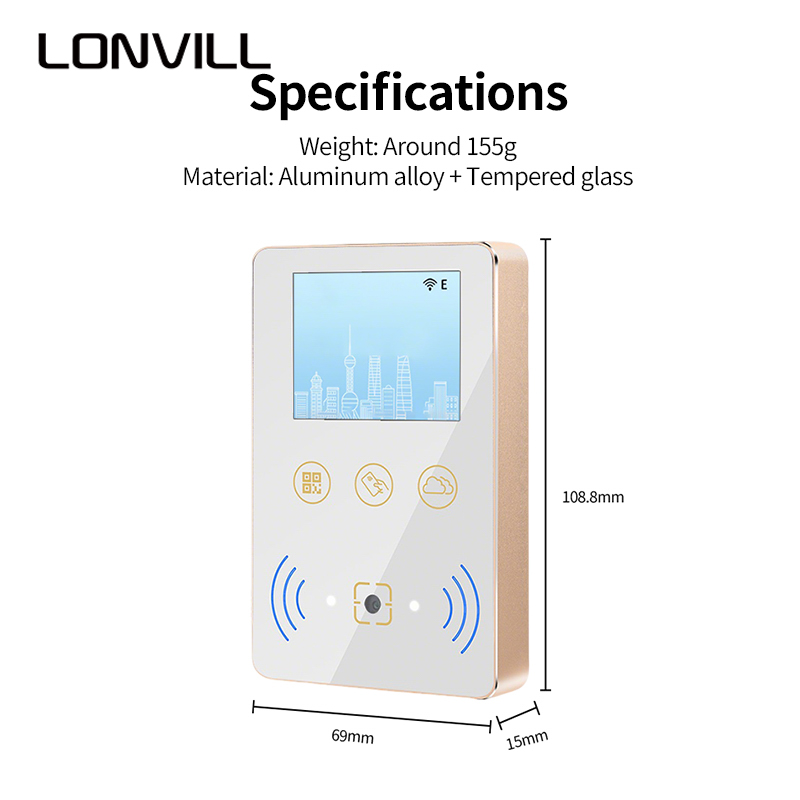

| Appearance Size | 108.8*69*15mm | ||
| Material | Aluminum alloy + Tempered glass | ||
| Gewicht | Around 155g | ||
| QR Code Reading Type | QR -Code, Datenmatrix, PDF417 | ||
| Types of 1D codes | EAN-8, EAN-13, Upc-a, Upc-e, Code 39, Code 93, Code 128,Code 128C, UCC/EAN 128, Codabar, Verschachtelt 2 of 5,ITF-6, ITF-14, ISBN, GS1 -Datenbank, GS1 Composite Code, | ||
| Matrix 2 of 5,Code 11, Industriell 25, Standard 25, | |||
| Plessey, MSI-Plessey, usw. | |||
| Reading Accuracy | ≥7 Mio. | ||
| Erkennungsgeschwindigkeit | <200 MS | ||
| Reading Angle | Rotation: 360°, elevation: ± 55°, declination: ± 55° | ||
| Scanwinkel | 72° (horizontal), 54° (vertical), 84° (diagonal) | ||
| Reading Distance | 5-20cm | ||
| QR Code Support Range | 1024 Characters | ||
| Supported Card Reader Types | Support ISO1443A/ISO1443B protocol cards | ||
| Working Frequency | 13.56MHz | ||
| IC Card Reading Sector | Support IC card reading sector | ||
| CPU Card Reading File (Optional) | Support CPU card reading files | ||
| Card Reading Distance | IC card: ＜3cm ID card: ＜ 1cm | ||
| Working Voltage | DC 6V~25V | ||
| Working Current | 200ma (12V power supply) | ||
| Standby Current | 150ma (12V power supply) | ||
| Audio Amplifier | 8Ω: 1W; 4Ω: 3W | ||
| Relay Load Capacity | 1A Current | ||
| Waterproof Level | IPX7 | ||
| Static Electricity Level | Air discharge ±8KV, contact discharge ±6KV (power supply must be effectively grounded) | ||
| Working Temperature | -20° C ~ 60 ° C. | ||
| Lagertemperatur | -40°~80°C | ||
| Relative Humidity | 95% (Non-condensing) | ||
| Ambient Lighting | Noon sun, night light | ||
