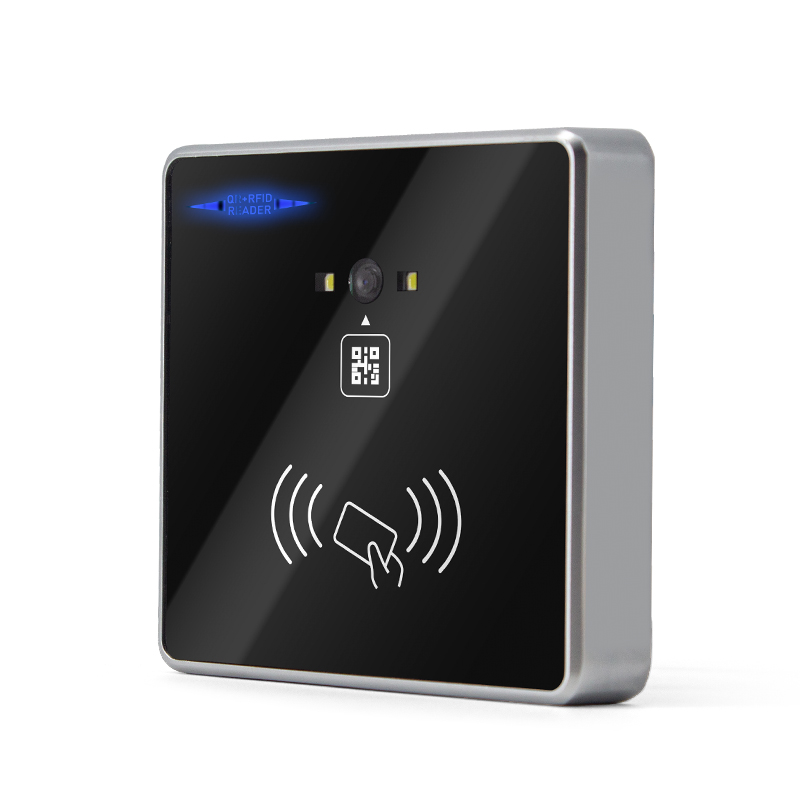

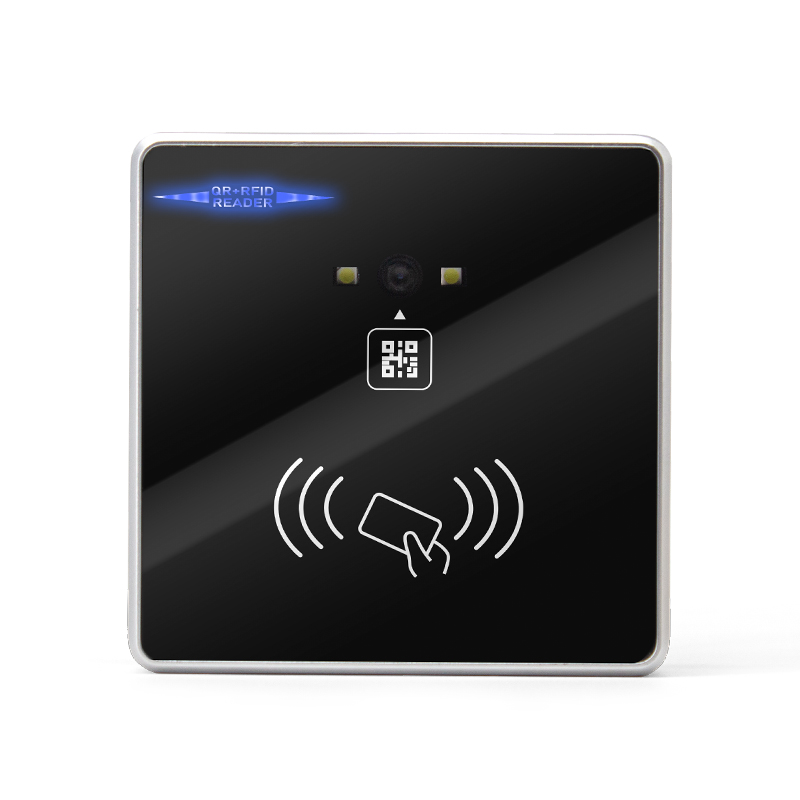

C4B QR -Code RFID Access Control Reader
The QR code+RFID access control reader is a new generation multifunctional reader. The appearance of this product adopts the standard 86 Box -Industriestandard. It has fast scanning speed, hohe Erkennungsrate, strong compatibility, and can be connected to any Wiegand input. This controller is suitable for various application scenarios. At present, it is widely used in the management of tourist entrances in business office buildings, the management of tourist staff in scenic spots, access control management in administrative halls, supporting gates, Zugangskontrolle, Besuchermaschinen, Smart Homes, usw.; It is a perfect upgrade of traditional credit card systems in various industries.
-
Betriebsspannung: 8-12V
-
Lesegeschwindigkeit:＜ 200 ms
-
Gewicht: 150G
-
Größe: 86mm×86mm×18mm
-
Card reading distance (Karte): 3~ 6 cm
-
Lesedistanz (QR -Code): 0-20cm
-
Kommunikationsmethode: Wiegand 26/34/RS232/RS485/TTL
Merkmale
Multifunctional Integration & Industry-Standard Design
This next-generation reader seamlessly integrates QR code scanning and RFID/NFC technology within a unified device, eliminating the need for separate hardware. Its housing adheres to the universal 86-box industrial standard (Abmessungen: 86×86×50mm ±5mm), ensuring effortless retrofitting into existing infrastructure.
Unmatched Performance & Reliability
Rapid Scanning, enabling swift authentication even in high-traffic scenarios.
High Recognition Accuracy
it reliably reads printed/screen-based QR codes
Universal Compatibility & Flexible Deployment
Generates Wiegand 26/34-bit output, enabling plug-and-play integration with anythird-party access controller or gate system .
Spezifikationen
| project | parameter |
| Kartenlesertyp | EM -Karte oder Mifare -Karte |
| Kommunikationsmethode | Wiegand 26/34/RS232/RS485/TTL |
| Lesrichtung (Barcode) | Winkel 45 ° mit der Linse als Mittelpunkt |
| Betriebsspannung | 8-12V |
| Card reading distance (Karte) | 3~ 6 cm |
| Lesedistanz (QR -Code) | 0-20cm |
| Arbeitsfeuchtigkeit | 10%~ 90% |
| Betriebssystem | Windowsxp/7/8/10), Linux |
| Indikatorlicht | Blue work light, Grüne Feedback -Licht |
| Barcode -Typ | Qr, ein/zweidimensionaler Code |
| Decodierungsmodus | Bilddecodierung |
| Scan -Code -Eigenschaften | Automatische Induktion, Summeraufforderung |
| Strom arbeiten | 800ma |
| Lesegeschwindigkeit | ＜200MS |
| Materialqualität | Zinc alloy frame + acrylic panel |
| Betriebstemperatur | -20℃~ 70℃ |
| Größe | 86mm×86mm×18mm |
| Gewicht | 150G |
